Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

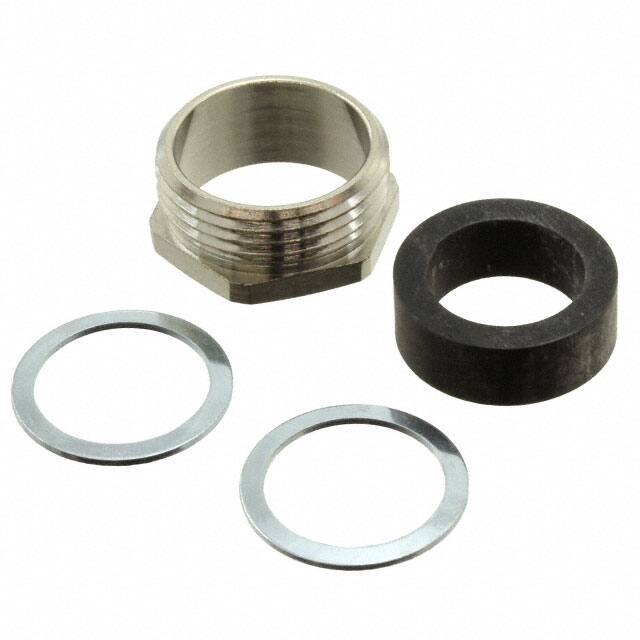

09000005115CABLE GLAND 14-16MM PG16 |
1,523 |
|
Datasheet | Cable Gland | 0.551" (14.00mm) | 0.630" (16.00mm) | PG16 | - | - | - | - | - | - | - | - | |
|

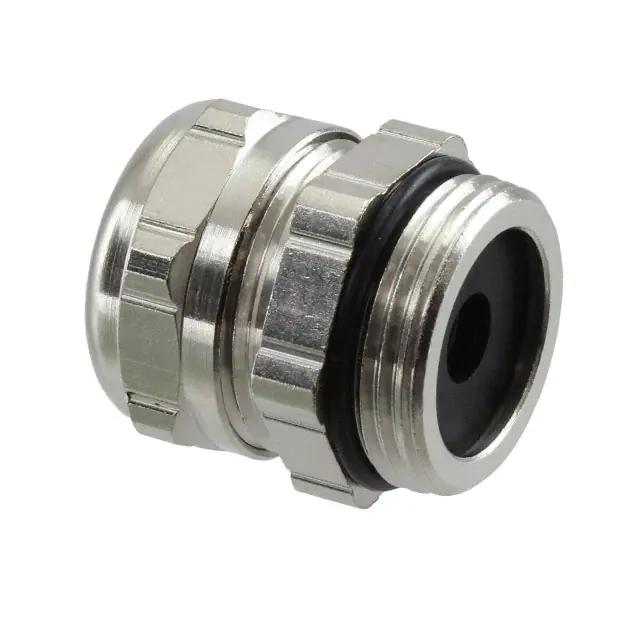

09000005086CABLE GLAND 6.5-9.5MM PG16 METAL |
4,312 |
|
Datasheet | Cable Gland | 0.256" (6.50mm) | 0.374" (9.50mm) | PG16 | - | - | - | Metal | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 130°C | |
|
09620005005CABLE GLAND 6.5-9.5MM PG16 METAL |
3,980 |
|
Datasheet | Cable Gland | 0.256" (6.50mm) | 0.374" (9.50mm) | PG16 | - | - | - | Metal | Compression Nut | Silver | IP68 - Dust Tight, Waterproof | - | |
|

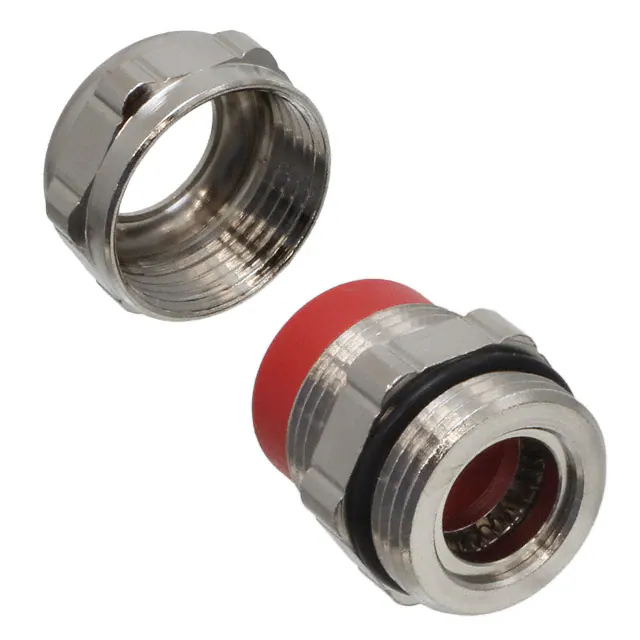

09620005004CABLE GLAND 9-13MM PG13.5 METAL |
1,544 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | PG13.5 | - | - | - | Metal | Compression Nut | Silver | IP68 - Dust Tight, Waterproof | - | |
|
09000005113CABLE GLAND 10-12MM PG11 |
4,543 |
|
Datasheet | Cable Gland | 0.394" (10.00mm) | 0.472" (12.00mm) | PG11 | - | - | - | - | - | - | - | - | |
|
09000005116CABLE GLAND 19-21MM PG21 |
1,733 |
|
Datasheet | Cable Gland | 0.748" (19.00mm) | 0.827" (21.00mm) | PG21 | - | - | - | - | - | - | - | - | |
|
09000005057CABLE GLAND 6.5-9.5MM PG16 |
4,122 |
|
Datasheet | Cable Gland | 0.256" (6.50mm) | 0.374" (9.50mm) | PG16 | - | - | - | Thermoplastic | - | - | IP65 - Dust Tight, Water Resistant | -40°C ~ 100°C | |
|
09000005166CABLE GLAND PG13.5 THERMOPL |
3,315 |
|
Datasheet | Cable Gland | - | - | PG13.5 | 0.394" (10.00mm) | - | - | Thermoplastic | - | Gray | IP68 - Dust Tight, Waterproof | - | |
|
|
19000005026CABLE GLAND 3-6.5MM M12 BRASS |
4,255 |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12 | - | - | - | Brass, Nickel Plated | - | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
19000005029CABLE GLAND 2-6MM M16 BRASS |
3,852 |
|
Datasheet | Cable Gland | 0.079" (2.00mm) | 0.236" (6.00mm) | M16 | - | - | - | Brass, Nickel Plated | - | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C |
