Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

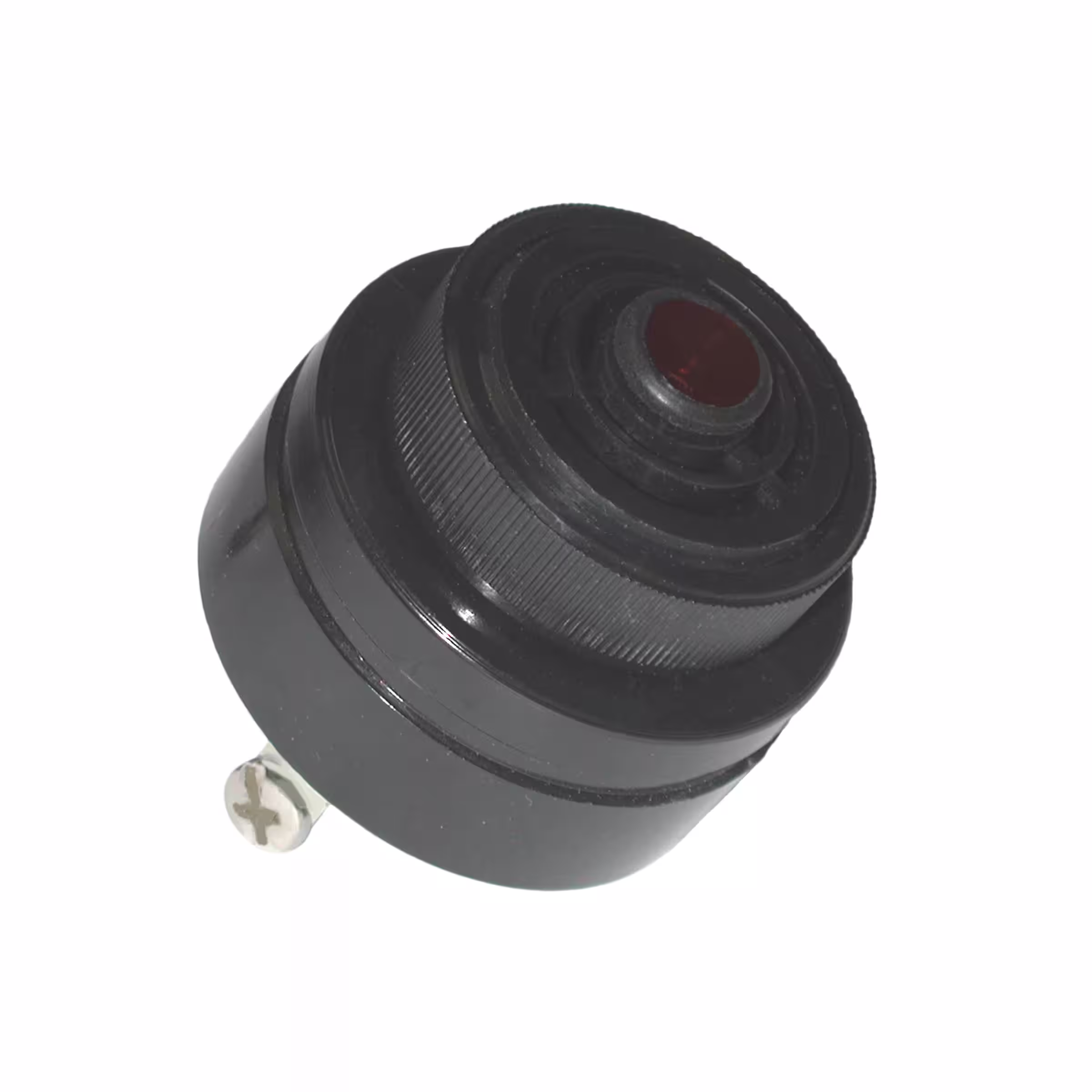

LSC628ANRBUZZER PIEZO 42.85MM PNL MNT |
1,032 |
|
Datasheet | LSC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 9 ~ 28V | 2.9kHz | Piezo | Single Tone, Visual Indicator | 2 PPS | 80dB @ 9V, 61cm | 65mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminals | 1.687" Dia (42.85mm) |
|
SCE048MD2DT6SBUZZER 42.85MM PNL MNT |
2,729 |
|
Datasheet | SC | Bulk | Active | - | DC | - | 28 ~ 48V | 1.75kHz ~ 2.9kHz | - | Dual Tone | - | 75dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminals | 1.687" Dia (42.85mm) |
|
|
HW1Z-P1F2PQ4RILLUMINATED BUZZER (RED) |
1,549 |
|
- |
HW | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 24V | 2.2kHz ~ 2.45kHz | - | - | - | 70dB @ 24V, 100cm | 18mA | Top | -20°C ~ 50°C | CE, UR | - | IP40, IP54, IP65 | Panel Mount | Screw Terminal | 1.311" Dia (33.30mm) |
|
|
HW1Z-P1F2PQ4YILLUMINATED BUZZER (YELLOW) |
2,560 |
|
- |
HW | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 24V | 2.2kHz ~ 2.45kHz | - | - | - | 70dB @ 24V, 100cm | 18mA | Top | -20°C ~ 50°C | CE, UR | - | IP40, IP54, IP65 | Panel Mount | Screw Terminal | 1.311" Dia (33.30mm) |
|
M2BJ-B06ABUZZER PIEZO 6V 24X18MM PNL MNT |
3,153 |
|
Datasheet | M2BJ | Bulk | Active | Indicator, Internally Driven | AC, DC | 6 V | - | 2kHz | Piezo | Pin Selectable | Variable | 80dB @ 6V, 100cm | 7mA | Top | -10°C ~ 55°C | - | - | - | Panel Mount | Connector | 0.945" L x 0.709" W (24.00mm x 18.00mm) |
|
|
ZA028SACTBUZZER PIEZO 30.74MM PNL MNT |
3,088 |
|
Datasheet | ZA | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 16 ~ 28V | 3.9kHz | Piezo | Single Tone | - | 65dB @ 16V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SCE120LA2CT1BBUZZER PIEZO 42.85MM PNL MNT |
4,978 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | AC | - | 48 ~ 120V | 2kHz | Piezo | Single Tone | - | 85dB @ 48V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE016SD3SR3BBUZZER PIEZO 42.98MM PNL MNT |
2,627 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Siren, Fast | 5 SPS | 65dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
|
SCE016SD3SR4BBUZZER PIEZO 42.98MM PNL MNT |
1,200 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Siren, Slow | 2 SPS | 65dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
|
SCE028SD3SR3BBUZZER PIEZO 42.85MM PNL MNT |
1,122 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Siren, Fast | 5 SPS | 65dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE028SD3SR4BBUZZER PIEZO 42.85MM PNL MNT |
1,009 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Siren, Slow | 2 SPS | 65dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE016SD3CM4BBUZZER PIEZO 42.98MM PNL MNT |
4,682 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Chime | 1 Sec On-Time | 65dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
|
SCE016SD3CM1SBUZZER PIEZO 42.98MM PNL MNT |
3,381 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 16V | 2.9kHz | Piezo | Chime | Repeating every 3 Sec | 85dB @ 6V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SCE028LD3SR3BBUZZER PIEZO 42.98MM PNL MNT |
1,860 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Siren, Fast | 5 SPS | 85dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.692" Dia (42.98mm) |
|
|
SCE028MD3SR3BBUZZER PIEZO 42.85MM PNL MNT |
2,158 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Siren, Fast | 5 SPS | 75dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE028MD3SR4BBUZZER PIEZO 42.85MM PNL MNT |
4,210 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Siren, Slow | 2 SPS | 75dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048LD3CM1BBUZZER PIEZO 42.85MM PNL MNT |
1,575 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Chime | Repeating every 3 Sec | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048LD3CM1FBUZZER PIEZO 42.85MM PNL MNT |
2,245 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Chime | Repeating every 3 Sec | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048LD3SR3BBUZZER PIEZO 42.85MM PNL MNT |
1,502 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Siren, Fast | 5 SPS | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048LD3SR4BBUZZER PIEZO 42.85MM PNL MNT |
3,774 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Siren, Slow | 2 SPS | 85dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
