Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SCE048XD3DP3BBUZZER PIEZO 42.85MM PNL MNT |
1,425 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Double Pulse, Slow | 0.5 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048XD3ED5BBUZZER PIEZO 42.85MM PNL MNT |
2,547 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Double Pulse | 10 Sec On-Delay @ 5 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048XD3PS1BBUZZER PIEZO 42.85MM PNL MNT |
3,463 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Pulse, Short | 1 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048XD3QP1BBUZZER PIEZO 42.85MM PNL MNT |
4,673 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Pulse, Quick | 60 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048XD3SD5BBUZZER PIEZO 42.85MM PNL MNT |
3,976 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Double Pulse | 1 Min On-Time @ 5 PPS | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048XD3SS1BBUZZER PIEZO 42.85MM PNL MNT |
4,863 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Single Tone | 1 Min On-Time | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048XD3SU1BBUZZER PIEZO 42.85MM PNL MNT |
3,387 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Speed Up, Slow | 0.5 ~ 8 PPS in 60 Sec | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE048XD3SU2BBUZZER PIEZO 42.85MM PNL MNT |
1,346 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 28 ~ 48V | 2.9kHz | Piezo | Speed Up, Fast | 0.5 ~ 8 PPS in 30 Sec | 95dB @ 28V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE028XD3QP1BBUZZER PIEZO 42.85MM PNL MNT |
3,569 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Pulse, Quick | 60 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE028XD3DP2BBUZZER PIEZO 42.85MM PNL MNT |
4,809 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Double Pulse, Fast | 2 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE028XD3SU1BBUZZER PIEZO 42.85MM PNL MNT |
4,337 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Speed Up, Slow | 0.5 ~ 8 PPS in 60 Sec | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCE028XD3PS1BBUZZER PIEZO 42.85MM PNL MNT |
2,258 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Pulse, Short | 1 PPS | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
SCL120MA3CTBBUZZER PIEZO 42.85MM PNL MNT |
1,280 |
|
Datasheet | SCL | Bulk | Active | Indicator, Internally Driven | AC | - | 48 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 75dB @ 48V, 61cm | 20mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|

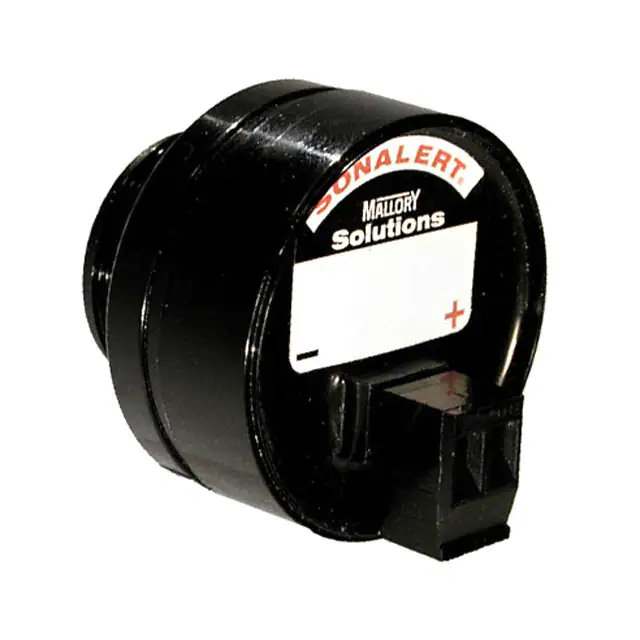

SCE120XA2CTBBUZZER PIEZO 42.85MM PNL MNT |
2,628 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | AC | - | 48 ~ 120V | 2kHz | Piezo | Single Tone | - | 95dB @ 48V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block | 1.687" Dia (42.85mm) |
|
|
HW1Z-2PQ4B22MM BUZZER CONTINUOUS |
4,299 |
|
- |
HW | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 24V | 2.2kHz ~ 2.45kHz | - | - | - | 70dB @ 24V, 100cm | 9mA | Top | -20°C ~ 50°C | CE, UR | - | IP40, IP54, IP65 | Panel Mount | Screw Terminal | 1.311" Dia (33.30mm) |
|
|
HW1Z-F2PQ4B22MM BUZZER INTERMITTENT |
4,611 |
|
- |
HW | Bulk | Active | Indicator, Internally Driven | DC | - | 12 ~ 24V | 2.2kHz ~ 2.45kHz | - | - | - | 70dB @ 24V, 100cm | 7mA | Top | -20°C ~ 50°C | CE, UR | - | IP40, IP54, IP65 | Panel Mount | Screw Terminal | 1.311" Dia (33.30mm) |
|
|
SCE028XD3MG2SBUZZER PIEZO 42.85MM PNL MNT |
1,159 |
|
Datasheet | SCE | Bulk | Active | Indicator, Internally Driven | DC | - | 16 ~ 28V | 2.9kHz | Piezo | Pin Selectable | Variable | 95dB @ 16V, 61cm | 40mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Terminal Block, Wire Leads | 1.687" Dia (42.85mm) |
|
|
SCL120XA3CT1SBUZZER PIEZO 42.85MM PNL MNT |
2,963 |
|
Datasheet | SCL | Bulk | Active | Indicator, Internally Driven | AC | - | 48 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 95dB @ 48V, 61cm | 30mA | Top | -40°C ~ 85°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
M2BJ-B06CBUZZER PIEZO 6V 24X18MM PNL MNT |
2,340 |
|
Datasheet | M2BJ | Bulk | Active | Indicator, Internally Driven | AC, DC | 6 V | - | 4kHz | Piezo | Pin Selectable | Variable | 80dB @ 6V, 100cm | 20mA | Top | -10°C ~ 55°C | - | - | - | Panel Mount | Connector | 0.945" L x 0.709" W (24.00mm x 18.00mm) |
|
|
M2BJ-B24CBUZZER PIEZO 0.9X 0.7 PNL MNT |
1,810 |
|
Datasheet | M2BJ | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 12 ~ 24V | 4kHz | Piezo | Pin Selectable | Variable | 80dB @ 12V, 100cm | 20mA | Top | -10°C ~ 55°C | - | - | - | Panel Mount | Connector | 0.945" L x 0.709" W (24.00mm x 18.00mm) |
