Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SC110RBUZZER PIEZO 42.85MM PNL MNT |
4,685 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2.9kHz | Piezo | Single Tone | - | 68dB @ 30V, 61cm | 6 ~ 21mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
|
ZT028LDCTYBUZZER PIEZO 30.74MM PNL MNT |
1,623 |
|
Datasheet | ZT | Bulk | Active | Indicator, Internally Driven | DC | - | 20 ~ 28V | 3.7kHz | Piezo, LED, Yellow | Single Tone, Visual Indicator | - | 85dB @ 20V, 61cm | 40mA | Top | -30°C ~ 65°C | cUL, UL | - | NEMA 3R, 4X, 12 | Panel Mount | Terminal Block | 1.210" Dia (30.74mm) |
|
SC648MANBUZZER PIEZO 42.98MM PNL MNT |
2,676 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 10 ~ 48V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 10V, 61cm | 4 ~ 26mA | Top | -40°C ~ 85°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
PK-35N29W-24VQBUZZER PIEZO 24V 42MM FLANGE |
3,578 |
|
Datasheet | PK | Bulk | Active | Indicator, Internally Driven | DC | 24 V | 22 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 90dB @ 24V, 30cm | 12mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.654" Dia (42.00mm) |
|
|
PK-26N04W-06VQBUZZER MAGNETIC 6V 26MM FLANGE |
3,225 |
|
Datasheet | PK | Bulk | Active | Indicator, Internally Driven | DC | 6 V | 4 ~ 8V | 400Hz | Magnetic | Single Tone | - | 85dB @ 6V, 61cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.024" Dia (26.00mm) |
|
|
PK-26N04W-03VQBUZZER MAGNETIC 3V 26MM FLANGE |
2,886 |
|
Datasheet | PK | Bulk | Active | Indicator, Internally Driven | DC | 3 V | 2 ~ 4V | 400Hz | Magnetic | Single Tone | - | 80dB @ 3V, 30cm | 30mA | Top | -20°C ~ 70°C | - | - | - | Panel Mount, Flange | Wire Leads | 1.024" Dia (26.00mm) |
|

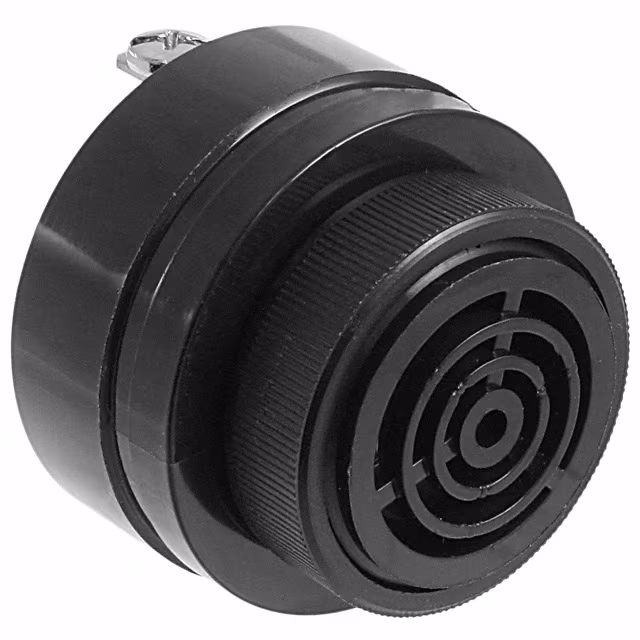

SC628FRBUZZER PIEZO 42.98MM PNL MNT |
4,711 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 55dB @ 6V, 61cm | 2 ~ 4mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC628NRBUZZER PIEZO 42.98MM PNL MNT |
3,957 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC628NLRBUZZER PIEZO 42.98MM PNL MNT |
2,014 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 4 ~ 16mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Wire Leads | 1.692" Dia (42.98mm) |
|
|
MSW5GBUZZER 3-5.5V 23MM TH |
1,536 |
|
Datasheet | MSW | Bulk | Active | Indicator, Internally Driven | DC | - | 3.3 ~ 5.5V | 150Hz ~ 4kHz | - | - | - | 90dB @ 5.5V, 10cm | 400mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" Dia (23.00mm) |
