Alarms, Buzzers, and Sirens
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Driver Circuitry | Input Type | Voltage - Rated | Voltage Range | Frequency | Technology | Operating Mode | Duration | Sound Pressure Level (SPL) | Current - Supply | Port Location | Operating Temperature | Approval Agency | Ratings | Ingress Protection | Mounting Type | Termination | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PK-27H25PQBUZZER PIEZO 12V 30MM TH |
245 |
|
Datasheet | PK | Bulk | Active | Transducer, Externally Driven | DC | 12 V | 3 ~ 20V | 2.5kHz | Piezo (with Feedback) | Single Tone | - | 100dB @ 12V, 30cm | 18mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) |
|
|
PK-12N40PEDRQBUZZER PIEZO 12V 13.8MM TH |
107 |
|
Datasheet | PK | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 15V | 4.1kHz | Piezo | Single Tone, Visual Indicator | - | 83dB @ 12V, 10cm | 12mA | Top | -20°C ~ 100°C | - | - | - | Through Hole | PC Pins | 0.543" Dia (13.80mm) |
|
|
PLD-27A35PQBUZZER PIEZO 12V 30MM TH |
193 |
|
Datasheet | PLD | Bulk | Active | Indicator, Internally Driven | DC | 12 V | 3 ~ 24V | 3.5kHz | Piezo (with Feedback) | Pin Selectable | Variable | 95dB @ 12V, 30cm | 10mA | Top | -20°C ~ 70°C | - | - | - | Through Hole | PC Pins | 1.181" Dia (30.00mm) |
|
|
MSO320SRBUZZER PIEZO 23X23MM TH |
194 |
|
Datasheet | MSO | Bulk | Active | Indicator, Internally Driven | DC | - | 3 ~ 20V | 3.5kHz | Piezo | Single Tone | - | 73dB @ 3V, 30cm | 3 ~ 16mA | Top | -20°C ~ 65°C | - | Washable | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
MSS5GHBUZZER MAGN 5V 23X23MM TH |
432 |
|
Datasheet | MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4.5 ~ 5.5V | 150Hz ~ 4kHz | Magnetic | - | Repeating every 2.5 Sec | 85dB @ 5V, 10cm | 200mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
MSS5MMVBUZZER MAGN 5V 23X23MM TH |
199 |
|
Datasheet | MSS | Bulk | Active | Indicator, Internally Driven | DC | 5 V | 4 ~ 6V | 2.075kHz | Magnetic | Pin Selectable | Variable | 85dB @ 5V, 10cm | 45 ~ 150mA | Top | -30°C ~ 55°C | cUL, UL | Medical | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|

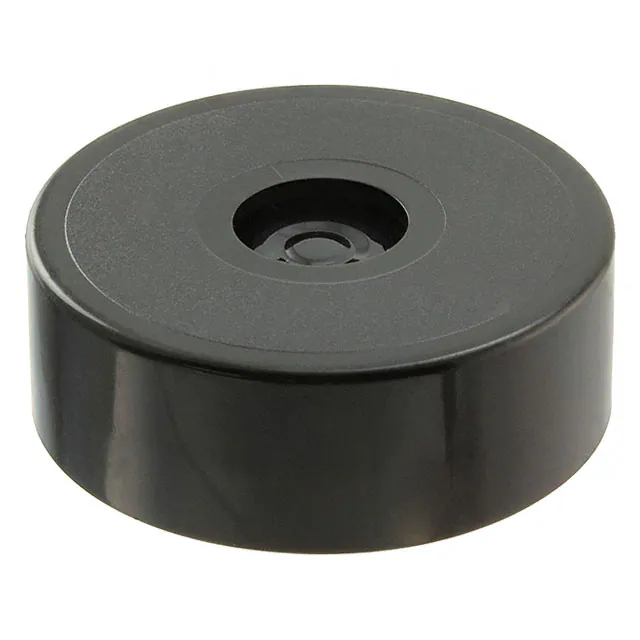

SBS300PCBUZZER MAGNETIC 2.8V 44.5MM TH |
203 |
|
Datasheet | - | Bulk | Active | Transducer, Externally Driven | Peak-Peak Signal | 2.8 V | - | 325Hz | Magnetic | Single Tone | - | 95dB @ 9V, 10cm | - | Top | -30°C ~ 65°C | cUL, UL | Medical | - | Through Hole | PC Pins | 1.752" Dia (44.50mm) |
|
|
MSE14LTT3BUZZER PIEZO 23X23MM TH |
150 |
|
Datasheet | - | Bulk | Active | Indicator, Internally Driven | DC | - | 7 ~ 14V | 3.35kHz | Piezo | Ringer, 3 Tone | - | 85dB @ 7V, 30cm | 50mA | Top | -40°C ~ 65°C | - | - | - | Through Hole | PC Pins | 0.906" L x 0.906" W (23.00mm x 23.00mm) |
|
|
SC628N-BTRBUZZER PIEZO 42.98MM PNL MNT |
120 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | DC | - | 6 ~ 28V | 2.9kHz | Piezo | Single Tone | - | 80dB @ 6V, 61cm | 6 ~ 23mA | Top | -30°C ~ 65°C | cUL, UL | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.692" Dia (42.98mm) |
|
|
SC110EJRBUZZER PIEZO 42.85MM PNL MNT |
110 |
|
Datasheet | SC | Bulk | Active | Indicator, Internally Driven | AC, DC | - | 30 ~ 120V | 2kHz | Piezo | Pulse, Slow | 0.5 ~ 2.5 PPS | 55dB @ 30V, 61cm | 7 ~ 13mA | Top | -30°C ~ 65°C | - | - | - | Panel Mount | Screw Terminal, Quick Connect Tab - 0.250" (6.35mm) | 1.687" Dia (42.85mm) |
