AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PSK-30D-15-TAC/DC CONVERTER 15V 30W |
4,144 |
|
Datasheet | PSK-30D | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | 30W | Household Appliances, ITE (Commercial) | 4.2 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 3.78" L x 2.13" W x 1.46" H (96.1mm x 54.0mm x 37.1mm) |
|
PSK-S5B-24-TAC/DC CONVERTER 24V 5W |
4,170 |
|
Datasheet | PSK-S5B (5W) | Bulk | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 24V | - | - | - | - | - | 210 mA | - | - | - | - | - | 5W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 1.06" H (76.0mm x 31.5mm x 26.8mm) |
|

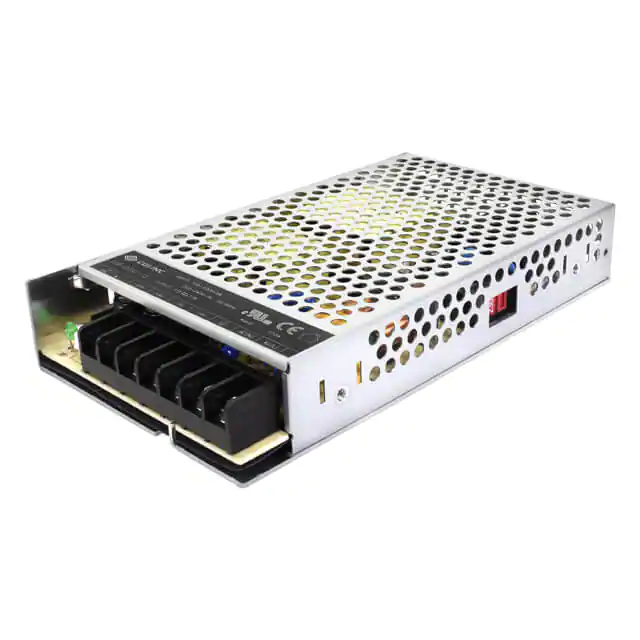

VGS-200C-24AC/DC CONVERTER 24V 211W |
2,672 |
|
Datasheet | VGS-200C (200W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 240 ~ 373 VDC | 24V | - | - | - | - | - | 8.8 A | - | - | - | - | - | 211W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|
|
VGS-200C-5AC/DC CONVERTER 5V 150W |
4,995 |
|
Datasheet | VGS-200C (200W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 240 ~ 373 VDC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|
|
VGS-200C-48AC/DC CONVERTER 48V 211W |
3,574 |
|
Datasheet | VGS-200C (200W) | Box | Not For New Designs | Enclosed | 1 | 90 ~ 264 VAC, 240 ~ 373 VDC | 48V | - | - | - | - | - | 4.4 A | - | - | - | - | - | 211W | Household Appliances, ITE (Commercial) | 3 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.05" L x 3.90" W x 1.18" H (179.0mm x 99.0mm x 30.0mm) |
|
VMS-65-5AC/DC CONVERTER 2X5V 50W |
4,619 |
|
Datasheet | Artix® UltraScale+ | Tray | Not For New Designs | Open Frame | 2 | 80 ~ 264 VAC, 100 ~ 370 VDC | 5V | 5V | - | - | - | - | 10 A | - | - | - | - | - | 50W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
VMS-65-24AC/DC CONVERTER 2X24V 65W |
4,472 |
|
Datasheet | Artix® UltraScale+ | Tray | Not For New Designs | Open Frame | 2 | 80 ~ 264 VAC, 100 ~ 370 VDC | 24V | 24V | - | - | - | - | 2.71 A | - | - | - | - | - | 65W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
VMS-65-12AC/DC CONVERTER 2X12V 65W |
3,633 |
|
Datasheet | Artix® UltraScale+ | Tray | Not For New Designs | Open Frame | 2 | 80 ~ 264 VAC, 100 ~ 370 VDC | 12V | 12V | - | - | - | - | 5.42 A | - | - | - | - | - | 65W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
|
VMS-65-48AC/DC CONVERTER 2X48V 65W |
4,532 |
|
Datasheet | Artix® UltraScale+ | Tray | Not For New Designs | Open Frame | 2 | 80 ~ 264 VAC, 100 ~ 370 VDC | 48V | 48V | - | - | - | - | 1.36 A | - | - | - | - | - | 65W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|

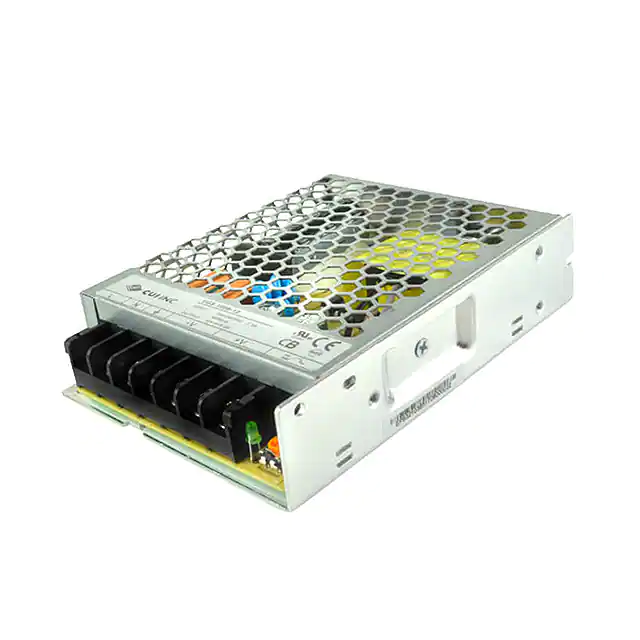

VGS-100B-48AC/DC CONVERTER 48V 101W |
2,050 |
|
Datasheet | VGS-100B (110W) | Box | Obsolete | Enclosed | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 101W | ITE (Commercial) | 1.5 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.84" W x 1.18" H (129.0mm x 97.5mm x 30.0mm) |
