AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VGS-100W-12AC/DC CONVERTER 12V 102W |
4,151 |
|
Datasheet | VGS-100W (100W) | Box | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 120 ~ 431 VDC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 102W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | - | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
VSK-S5-3R3UA-TAC/DC CONVERTER 3.3V 5W |
1,584 |
|
Datasheet | VSK-S5-T (5.5W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 5W | ITE (Commercial) | 4 kV | -25°C ~ 70°C | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 0.94" H (76.0mm x 31.5mm x 23.4mm) |
|
|
VSK-S5-15UA-TAC/DC CONVERTER 15V 5W |
2,785 |
|
Datasheet | VSK-S5-T (5.5W) | Tray | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 333 mA | - | - | - | - | - | 5W | ITE (Commercial) | 4 kV | -25°C ~ 70°C | Universal Input | Chassis Mount | 2.99" L x 1.24" W x 0.94" H (76.0mm x 31.5mm x 23.4mm) |
|
PSK-30D-3-TAC/DC CONVERTER 3.3V 20W |
2,441 |
|
Datasheet | PSK-30D | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 305 VAC, 100 ~ 430 VDC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | 20W | Household Appliances, ITE (Commercial) | 4.2 kV | -40°C ~ 85°C (With Derating) | - | Chassis Mount | 3.78" L x 2.13" W x 1.46" H (96.1mm x 54.0mm x 37.1mm) |
|

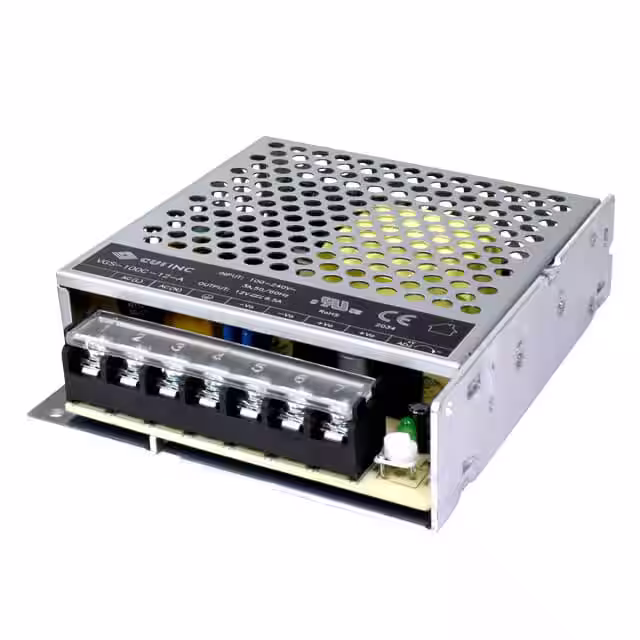

VGS-100C-5-AAC/DC CONVERTER 5V 90W |
2,733 |
|
Datasheet | VGS-100C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 5V | - | - | - | - | - | 18 A | - | - | - | - | - | 90W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 5.08" L x 3.82" W x 1.18" H (129.0mm x 97.0mm x 30.0mm) |
|
PSK-60-5-TAC/DC CONVERTER 5V 50W |
4,916 |
|
Datasheet | PSK-60 (60W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.32" L x 2.76" W x 1.49" H (135.0mm x 70.0mm x 37.9mm) |
|
|
PSK-60-48-TAC/DC CONVERTER 48V 60W |
3,999 |
|
Datasheet | PSK-60 (60W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 48V | - | - | - | - | - | 1.25 A | - | - | - | - | - | 60W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.32" L x 2.76" W x 1.49" H (135.0mm x 70.0mm x 37.9mm) |
|
VMS-45-12-CNFAC/DC CONVERTER 2X12V 45W |
2,103 |
|
Datasheet | Artix® UltraScale+ | Box | Not For New Designs | Enclosed | 2 | 80 ~ 264 VAC, 100 ~ 370 VDC | 12V | 12V | - | - | - | - | 3.75 A | - | - | - | - | - | 45W | Medical | 4 kV | -40°C ~ 85°C (With Derating) | DC Input Capable, Universal Input | Chassis Mount | 3.00" L x 2.00" W x 1.04" H (76.2mm x 50.8mm x 26.5mm) |
|
VGS-150C-36AC/DC CONVERTER 36V 155W |
3,014 |
|
Datasheet | VGS-150C | Box | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 120 ~ 373 VDC | 36V | - | - | - | - | - | 4.3 A | - | - | - | - | - | 155W | Household Appliances, ITE (Commercial) | 4 kV | -30°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.26" L x 3.82" W x 1.18" H (159.0mm x 97.0mm x 30.0mm) |
|
|
PSK-60-15-TAC/DC CONVERTER 15V 60W |
4,830 |
|
Datasheet | PSK-60 (60W) | Tray | Not For New Designs | Enclosed | 1 | 85 ~ 264 VAC, 100 ~ 370 VDC | 15V | - | - | - | - | - | 4 A | - | - | - | - | - | 60W | ITE (Commercial) | 4 kV | -40°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 5.32" L x 2.76" W x 1.49" H (135.0mm x 70.0mm x 37.9mm) |
