AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LHA50F-5-SNYAC/DC PS (OPEN FRAME) |
4,602 |
|
- |
LHA (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 8 A | - | - | - | - | - | 40W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.67" L x 2.36" W x 1.48" H (144.0mm x 59.9mm x 37.6mm) |
|
|
LHA50F-24-SNYAC/DC PS (OPEN FRAME) |
3,864 |
|
- |
LHA (50W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.67" L x 2.36" W x 1.48" H (144.0mm x 59.9mm x 37.6mm) |
|

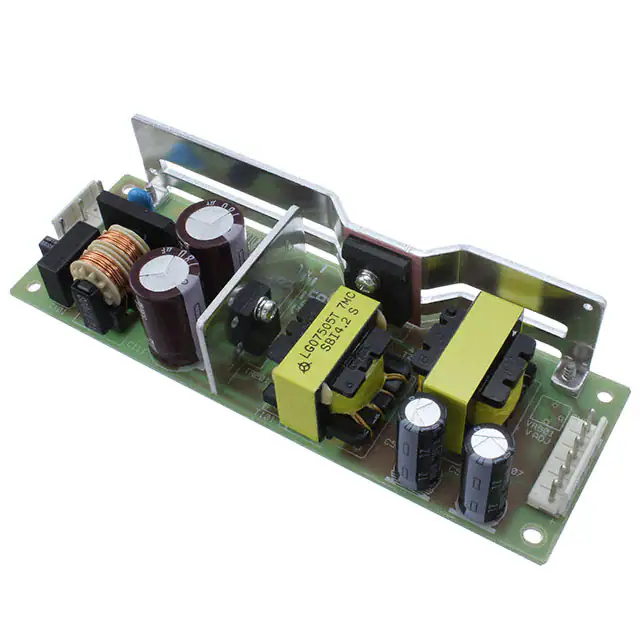

LGA75A-5AC/DC CONVERTER 5V |
3,200 |
|
Datasheet | LGA (75W) | Box | Active | Open Frame | 1 | 85 ~ 132 VAC | 5V | - | - | - | - | - | 15 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 5.91" L x 1.97" W x 1.36" H (150.1mm x 50.0mm x 34.5mm) |
|
LDA15F-12AC/DC CONVERTER 12V 16W |
2,012 |
|
Datasheet | LDA (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | 16W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 1.97" W x 0.83" H (125.0mm x 50.0mm x 21.0mm) |
|
|
LDA15F-24AC/DC CONVERTER 24V 17W |
1,977 |
|
Datasheet | LDA (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 700 mA | - | - | - | - | - | 17W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 1.97" W x 0.83" H (125.0mm x 50.0mm x 21.0mm) |
|
|
LDA15F-5AC/DC CONVERTER 5V 15W |
2,848 |
|
Datasheet | LDA (15W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 1.97" W x 0.83" H (125.0mm x 50.0mm x 21.0mm) |
|
|
PBA15F-24-CJ1NAC/DC CONVERTER 24V |
3,310 |
|
Datasheet | PBA (15W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 24V | - | - | - | - | - | 700 mA | - | - | - | - | - | 17W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
PBA15F-5-CJ1NAC/DC CONVERTER 5V |
3,009 |
|
Datasheet | PBA (15W) | Bulk | Active | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 3 A | - | - | - | - | - | 15W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | DC Input Capable, PFC, Universal Input | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
PBA10F-12-MNAC/DC CONVERTER 12V |
2,539 |
|
Datasheet | PBA (10W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 2.68" L x 1.22" W x 3.07" H (68.1mm x 31.0mm x 78.0mm) |
|
|
PBA10F-12-TNAC/DC CONVERTER 12V |
3,358 |
|
Datasheet | PBA (10W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 900 mA | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 2.68" L x 1.22" W x 3.07" H (68.1mm x 31.0mm x 78.0mm) |
