AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

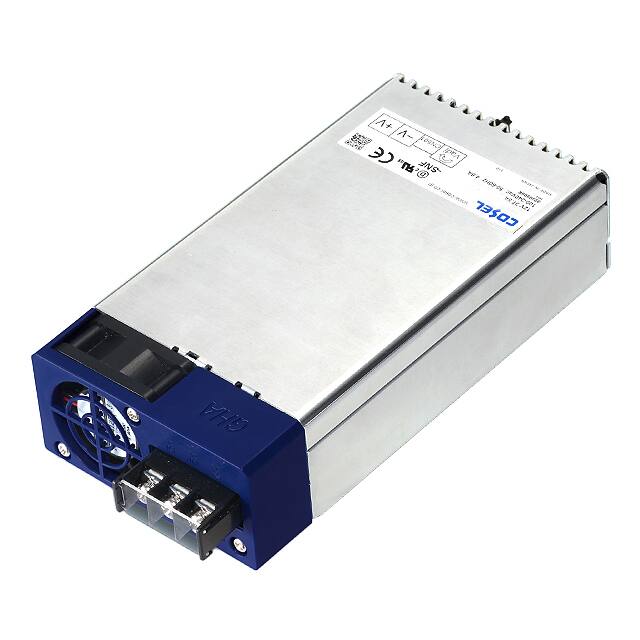

GHA500F-12-SNFAC/DC CONVERTER 12V 450W |
3,897 |
|
Datasheet | GHA (500W) | Box | Active | Enclosed | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 37.5 A | - | - | - | - | - | 450W | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, DC Input Capable, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|

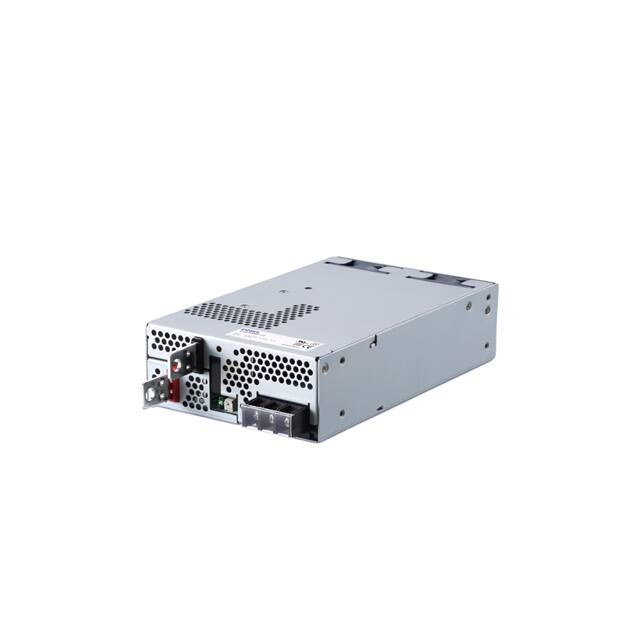

PJA1000F-24AC/DC CONVERTER 24V 1000W |
2,172 |
|
Datasheet | PJA (1000W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 42 A | - | - | - | - | - | 1000W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 9.45" L x 5.91" W x 2.40" H (240.0mm x 150.1mm x 61.0mm) |
|

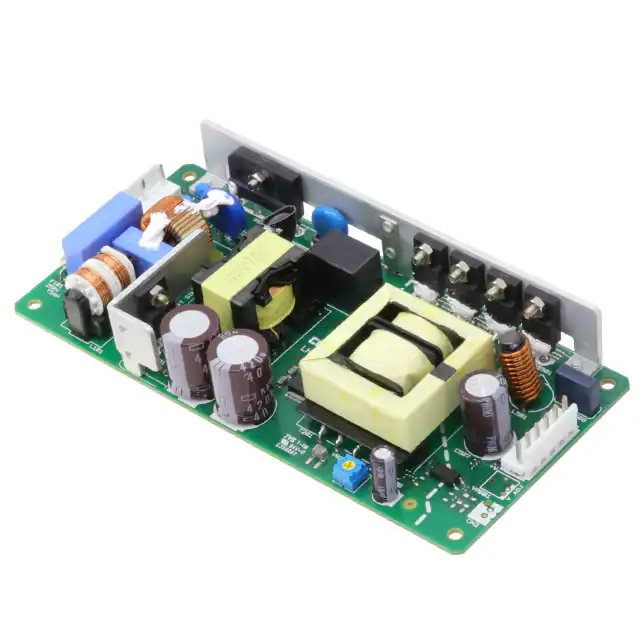

LHA150F-12AC/DC CONVERTER 12V 150W |
128 |
|
Datasheet | LHA (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 6.30" L x 2.95" W x 0.93" H (160.0mm x 74.9mm x 23.6mm) |
|

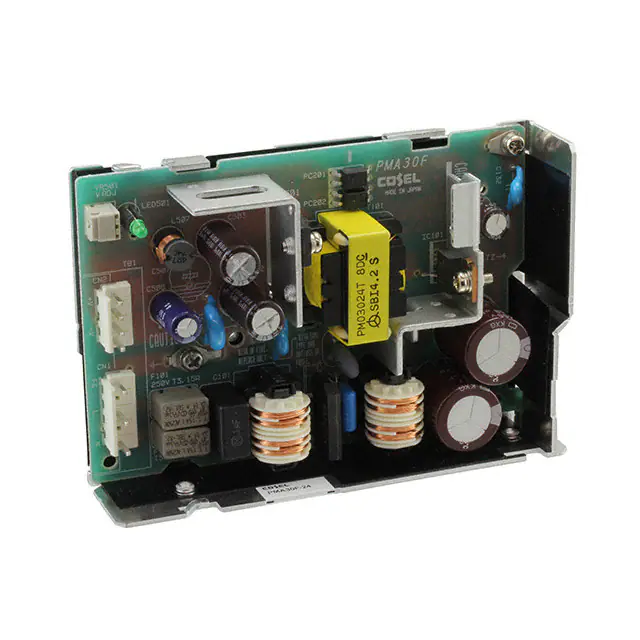

PMA30F-24AC/DC CONVERTER 24V |
102 |
|
Datasheet | PMA (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 1.3 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
|
PBA1500F-36AC/DC CONVERTER 36V 1500W |
4,374 |
|
Datasheet | PBA (1500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 47 A | - | - | - | - | - | 1692W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
LDA30F-12-SNAC/DC CONVERTER 12V 30W |
236 |
|
Datasheet | LDA (30W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 12V | - | - | - | - | - | 2.5 A | - | - | - | - | - | 30W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 6.42" L x 2.56" W x 1.42" H (163.0mm x 65.0mm x 36.0mm) |
|

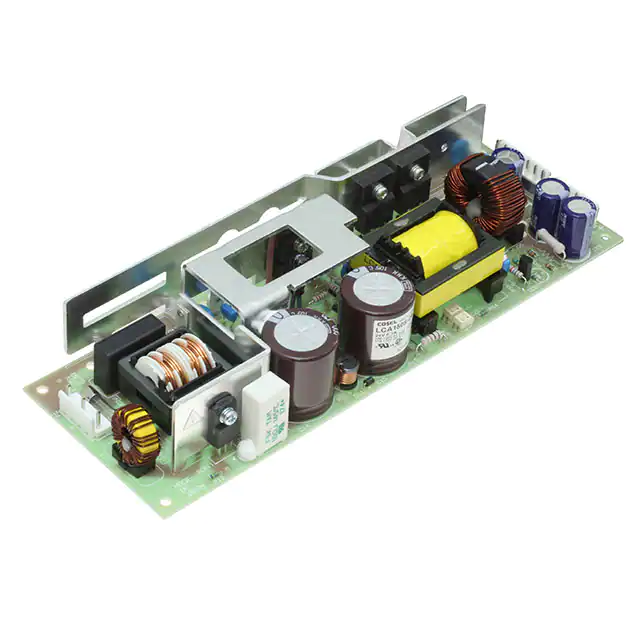

LCA50S-12AC/DC PS (OPEN FRAME) |
155 |
|
Datasheet | LCA (50W) | Box | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
PLA150F-36AC/DC CONVERTER 36V |
1,106 |
|
Datasheet | PLA (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 4.2 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -20°C ~ 70°C | - | Chassis Mount | 5.08" L x 1.61" W x 3.82" H (129.0mm x 40.9mm x 97.0mm) |
|
LFA150F-12-GAC/DC CONVERTER 12V |
300 |
|
Datasheet | LFA (150W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.46" H (160.0mm x 74.9mm x 37.1mm) |
|
|
LDA100W-48-YAC/DC CONVERTER 48V 96W |
3,376 |
|
Datasheet | LDA (100W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 48V | - | - | - | - | - | 2 A | - | - | - | - | - | 96W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.74" L x 2.44" W x 1.38" H (222.0mm x 62.0mm x 35.0mm) |
