AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

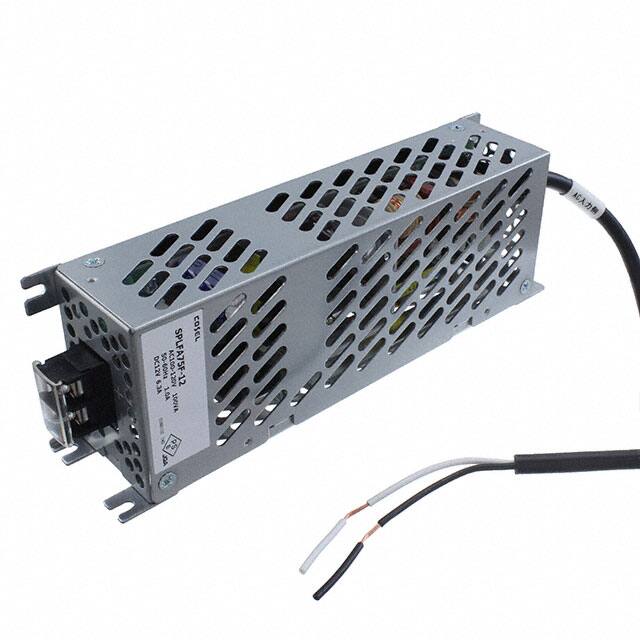

SPLFA75F-12AC/DC CONVERTER 12V |
3,466 |
|
Datasheet | SPLFA (75W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 6.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 50°C | - | Chassis Mount | 7.56" L x 2.40" W x 1.65" H (192.0mm x 61.0mm x 41.9mm) |
|

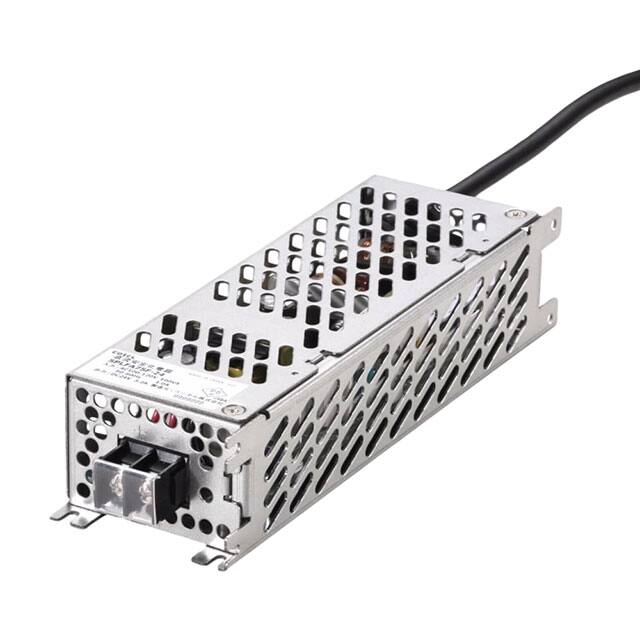

SPLFA75F-24AC/DC CONVERTER 24V |
4,382 |
|
Datasheet | SPLFA (75W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 50°C | - | Chassis Mount | 7.56" L x 2.40" W x 1.65" H (192.0mm x 61.0mm x 41.9mm) |
|

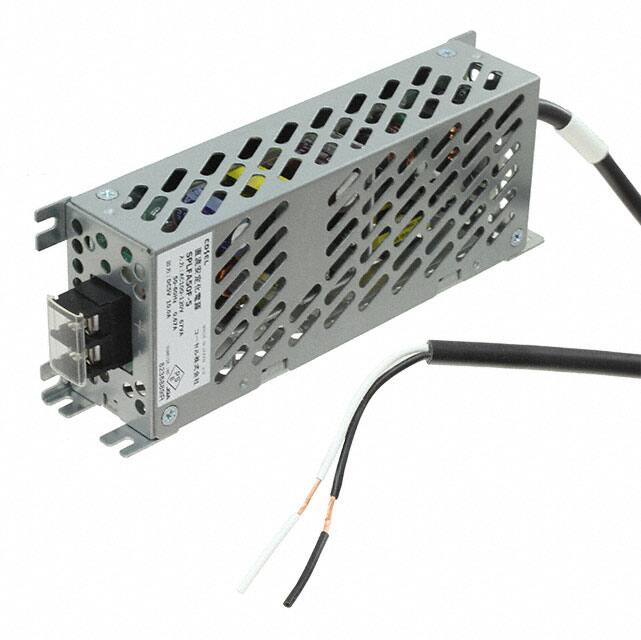

SPLFA75F-5AC/DC CONVERTER 5V |
2,516 |
|
Datasheet | SPLFA (75W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 15 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 50°C | - | Chassis Mount | 7.56" L x 2.40" W x 1.65" H (192.0mm x 61.0mm x 41.9mm) |
|
STA5000TAC/DC CONVERTER 370V |
2,431 |
|
Datasheet | STA (5000W) | Box | Obsolete | Enclosed | 1 | 170 ~ 264 VAC | 370V | - | - | - | - | - | - | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 50°C | - | Chassis Mount | 9.84" L x 5.18" W x 5.67" H (250.0mm x 131.5mm x 144.0mm) |
|
|
STA5000T-RAC/DC CONVERTER 370V |
3,607 |
|
Datasheet | STA (5000W) | Box | Obsolete | Enclosed | 1 | 170 ~ 264 VAC | 370V | - | - | - | - | - | - | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 50°C | - | Chassis Mount | 9.84" L x 5.18" W x 5.67" H (250.0mm x 131.5mm x 144.0mm) |
|
|
PBA50F-5-J1AC/DC CONVERTER 5V 50W |
3,403 |
|
Datasheet | PBA (50W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 5V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | Universal Input | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
|
|
PBA75F-24-J1AC/DC CONVERTER 24V 77W |
3,486 |
|
Datasheet | PBA (75W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | 77W | Industrial, ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | Universal Input | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|
|
PBW50F-15-J1AC/DC CONVERTER +/-15V 62W |
2,222 |
|
Datasheet | PBW (50W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC, 120 ~ 370 VDC | 15V | -15V | - | - | - | - | 1.7 A | 2.4 A | - | - | - | - | 62W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | Universal Input | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
|
|
PBA75F-9-J1AC/DC CONVERTER 9V 76W |
3,652 |
|
Datasheet | PBA (75W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 9V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 76W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | Universal Input | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|
|
PBA75F-48-J1AC/DC CONVERTER 48V 77W |
2,593 |
|
Datasheet | PBA (75W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC, 120 ~ 370 VDC | 48V | - | - | - | - | - | 1.6 A | - | - | - | - | - | 77W | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | Universal Input | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
