AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

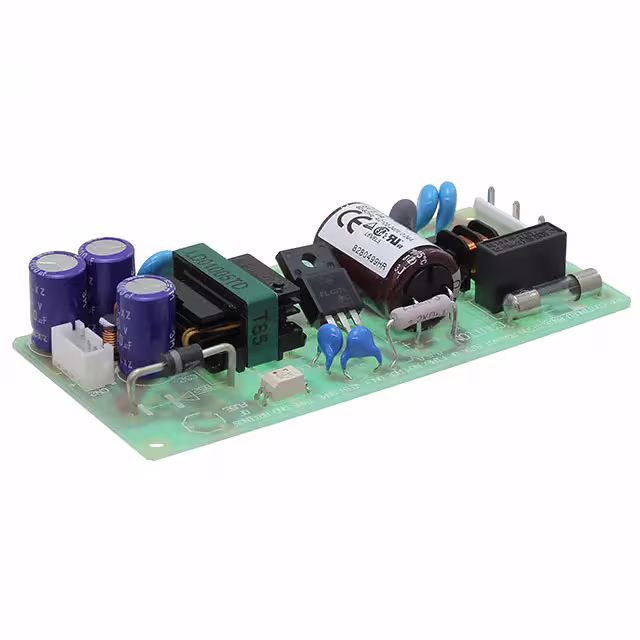

LDA10F-5AC/DC CONVERTER 5V 10W |
3,663 |
|
Datasheet | LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
LDA10F-5-CYAC/DC CONVERTER 5V 10W |
1,337 |
|
Datasheet | LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA10F-5-SNCAC/DC CONVERTER 5V 10W |
2,698 |
|
Datasheet | LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
|
|
LDA10F-5-SNCYAC/DC CONVERTER 5V 10W |
4,481 |
|
Datasheet | LDA (10W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.92" L x 2.24" W x 1.26" H (125.0mm x 57.0mm x 32.0mm) |
|
|
LDA10F-5-VAC/DC CONVERTER 5V 10W |
1,312 |
|
Datasheet | LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA10F-5-YAC/DC CONVERTER 5V 10W |
4,118 |
|
Datasheet | LDA (10W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | 10W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 4.13" L x 1.97" W x 0.83" H (105.0mm x 50.0mm x 21.0mm) |
|
|
LDA150W-12AC/DC CONVERTER 12V 150W |
3,652 |
|
Datasheet | LDA (150W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.46" H (222.0mm x 75.0mm x 37.0mm) |
|
|
LDA150W-15AC/DC CONVERTER 15V 150W |
4,907 |
|
Datasheet | LDA (150W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.46" H (222.0mm x 75.0mm x 37.0mm) |
|
|
LDA150W-15-SNAC/DC CONVERTER 15V 150W |
4,578 |
|
Datasheet | LDA (150W) | Box | Obsolete | Enclosed | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 15V | - | - | - | - | - | 10 A | - | - | - | - | - | 150W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 9.92" L x 3.35" W x 1.85" H (252.0mm x 85.0mm x 47.0mm) |
|
|
LDA150W-18AC/DC CONVERTER 18V 153W |
3,169 |
|
Datasheet | LDA (150W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 18V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 153W | ITE (Commercial) | - | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.74" L x 2.95" W x 1.46" H (222.0mm x 75.0mm x 37.0mm) |
