AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBA75F-5-JVNAC/DC CONVERTER 5V |
3,064 |
|
Datasheet | PBA (75W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 15 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|
|
PBA75F-9-JAC/DC CONVERTER 9V |
3,398 |
|
Datasheet | PBA (75W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 8.4 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|
|
PBA75F-9-JNAC/DC CONVERTER 9V |
2,799 |
|
Datasheet | PBA (75W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 8.4 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|
|
PBA75F-9-JN1AC/DC CONVERTER 9V |
2,801 |
|
Datasheet | PBA (75W) | Box | Obsolete | Enclosed | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 8.4 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|
|
PBA75F-9-JRAC/DC CONVERTER 9V |
4,607 |
|
Datasheet | PBA (75W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 8.4 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|

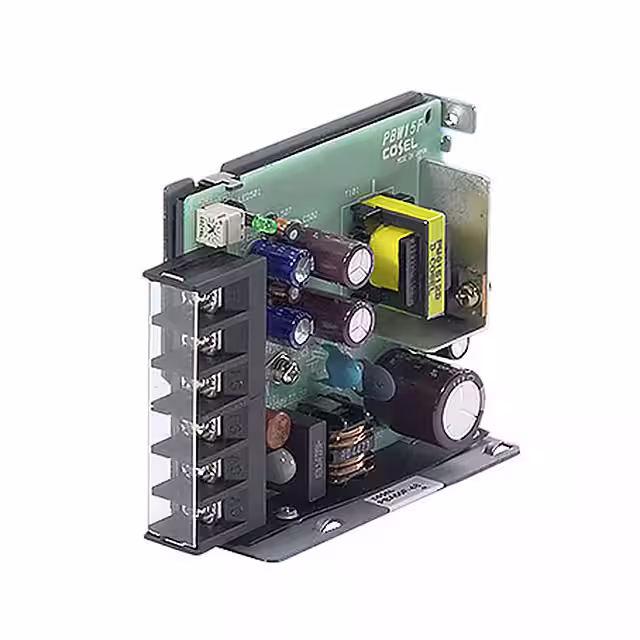

PBW15F-12-JAC/DC CONVERTER +/-12V |
1,632 |
|
Datasheet | PBW (15W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 700 mA | 1.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|

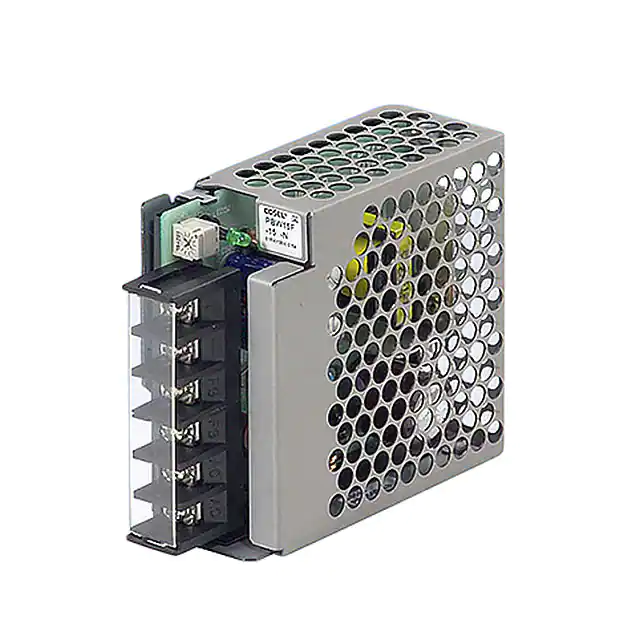

PBW15F-12-JNAC/DC CONVERTER +/-12V |
1,342 |
|
Datasheet | PBW (15W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 700 mA | 1.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
PBW15F-15-CJAC/DC CONVERTER +/-15V |
4,815 |
|
Datasheet | PBW (15W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 500 mA | 1 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
PBW15F-15-JAC/DC CONVERTER +/-15V |
3,050 |
|
Datasheet | PBW (15W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 500 mA | 1 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
PBW15F-15-JNAC/DC CONVERTER +/-15V |
3,805 |
|
Datasheet | PBW (15W) | Box | Obsolete | Open Frame | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 500 mA | 1 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
