AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJA1500F-24-CAC/DC CONVERTER 24V 1536W |
4,748 |
|
Datasheet | PJA (1500W) | Box | Active | Enclosed, Conformal Coated | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 64 A | - | - | - | - | - | 1536W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 10.55" L x 7.01" W x 2.40" H (268.0mm x 178.1mm x 61.0mm) |
|
|
PJA1500F-12-GAC/DC CONVERTER 12V 1500W |
1,737 |
|
Datasheet | PJA (1500W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 125 A | - | - | - | - | - | 1500W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 10.55" L x 7.01" W x 2.40" H (268.0mm x 178.1mm x 61.0mm) |
|
PBA600F-48-CAC/DC CONVERTER 48V |
2,912 |
|
Datasheet | PBA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 13 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | - | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 119.9mm x 61.0mm) |
|
|
PBA600F-7R5-CAC/DC CONVERTER 7.5V |
1,876 |
|
Datasheet | PBA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 7.5V | - | - | - | - | - | 80 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | - | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 119.9mm x 61.0mm) |
|
AC3-OHWM-00AC/DC CONVERTER 24V +/-12V 5V |
3,647 |
|
Datasheet | ACE (300W) | Box | Last Time Buy | Enclosed | 4 | 85 ~ 264 VAC | 24V | 12V | -12V | 5V | - | - | 6.5 A | 3.2 A | 4.2 A | 10 A | - | - | - | ITE (Commercial), Medical | 3 kV | -20°C ~ 70°C | - | Chassis Mount | 10.00" L x 4.06" W x 2.50" H (254.0mm x 103.1mm x 63.5mm) |
|

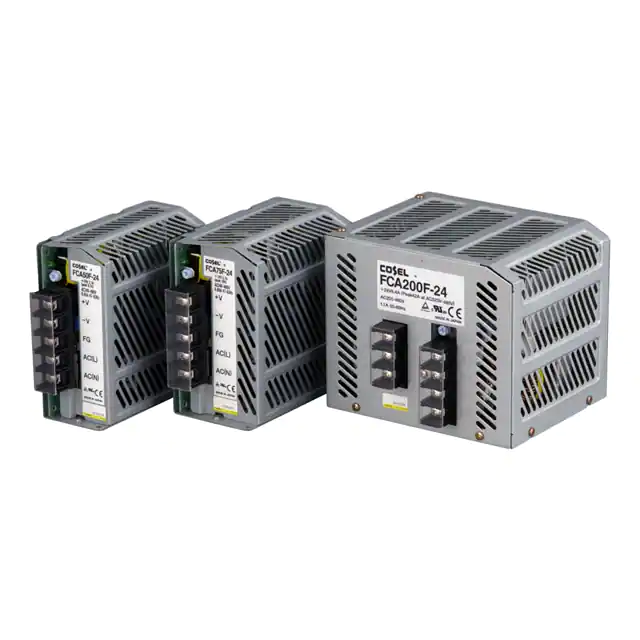

FCA200F-24AC/DC CONVERTER 24V 200W |
1,222 |
|
Datasheet | FCA (200W) | Box | Obsolete | Enclosed | 1 | 187 ~ 528 VAC, 265 ~ 530 VDC | 24V | - | - | - | - | - | 8.4 A | - | - | - | - | - | 200W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | DC Input Capable | Chassis Mount | 5.91" L x 5.00" W x 4.92" H (150.0mm x 127.0mm x 125.0mm) |
|
|
PBA600F-48-CF3AC/DC CONVERTER 48V |
1,387 |
|
Datasheet | PBA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 13 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | - | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 119.9mm x 61.0mm) |
|
|
PBA600F-5-CF3AC/DC CONVERTER 5V |
1,529 |
|
Datasheet | PBA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 120 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | - | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 119.9mm x 61.0mm) |
|
|
PBA600F-7R5-CF3AC/DC CONVERTER 7.5V |
2,484 |
|
Datasheet | PBA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 7.5V | - | - | - | - | - | 80 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | - | Chassis Mount | 7.48" L x 4.72" W x 2.40" H (190.0mm x 119.9mm x 61.0mm) |
|
|
AC3-OHWY-00AC/DC CONVERTER 24V +/-12V 5V |
3,830 |
|
Datasheet | ACE (300W) | Box | Last Time Buy | Enclosed | 5 | 85 ~ 264 VAC | 24V | 12V | -12V | 5V | - | - | 6.5 A | 3.2 A | 4.2 A | 3 A | 7 A | - | - | ITE (Commercial), Medical | 3 kV | -20°C ~ 70°C | - | Chassis Mount | 10.00" L x 4.06" W x 2.50" H (254.0mm x 103.1mm x 63.5mm) |
