AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PJA300F-48AC/DC CONVERTER 48V 302W |
1,145 |
|
Datasheet | PJA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 48V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 302W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | 7.48" L x 4.02" W x 1.61" H (190.0mm x 102.1mm x 40.9mm) |
|

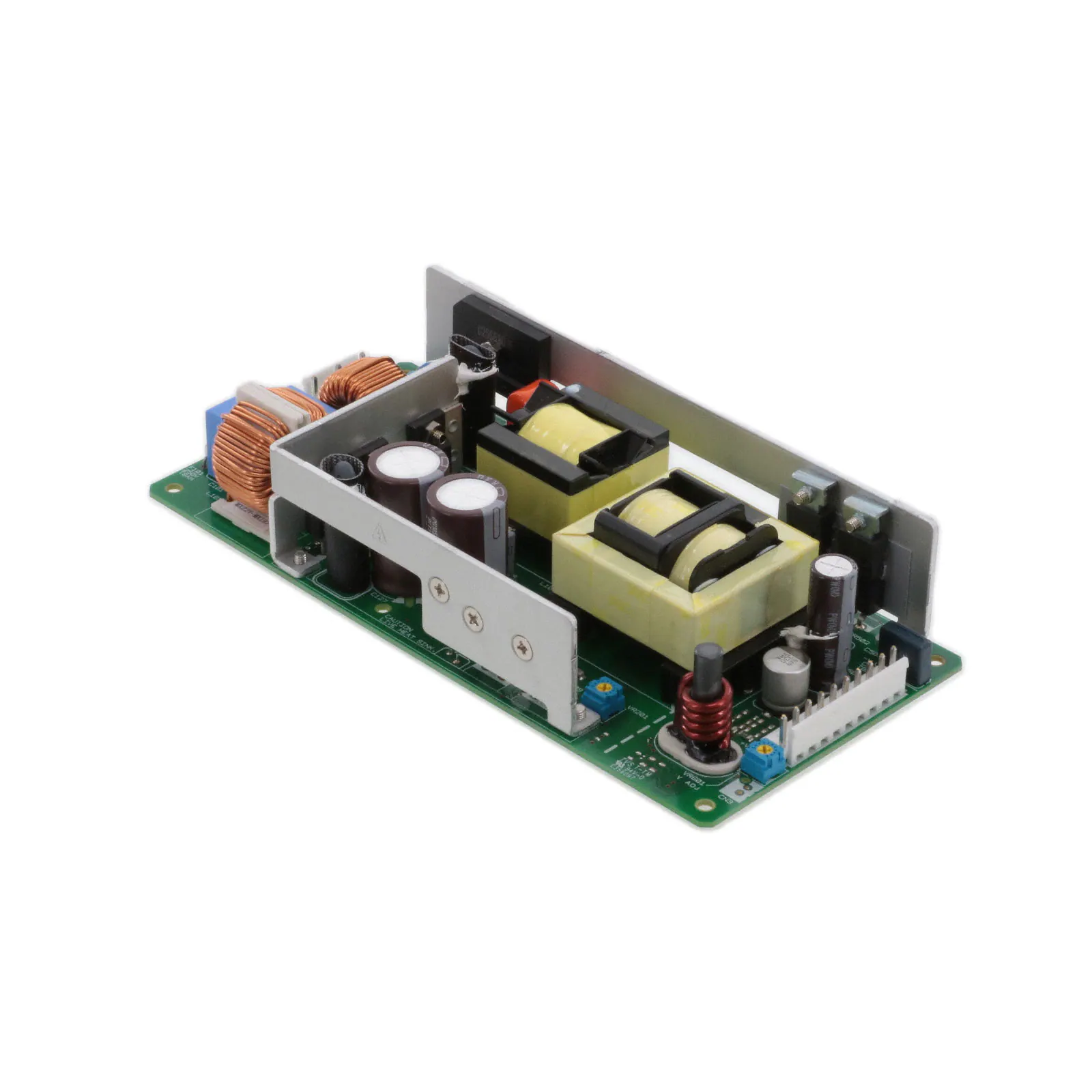

LHA300F-24-YAC/DC CONVERTER 24V 300W |
1,877 |
|
Datasheet | LHA (300W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.09" L x 3.31" W x 1.32" H (180.1mm x 84.1mm x 33.5mm) |
|
PBA150F-5-NAC/DC CONVERTER 5V 150W |
1,925 |
|
Datasheet | PBA (150W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 30 A | - | - | - | - | - | 150W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|

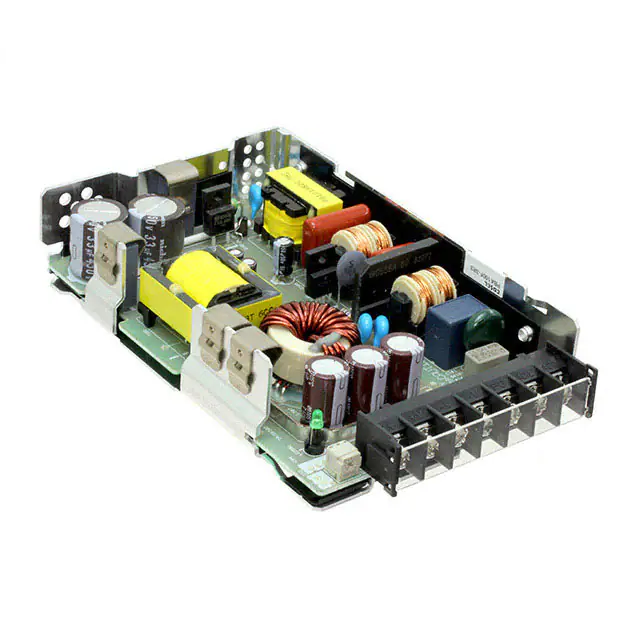

PBA100F-24AC/DC CONVERTER 24V 100W |
2,515 |
|
Datasheet | PBA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.5 A | - | - | - | - | - | 100W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|
PMA60F-3R3-NAC/DC CONVERTER 3.3V |
3,688 |
|
Datasheet | PMA (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 12 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|

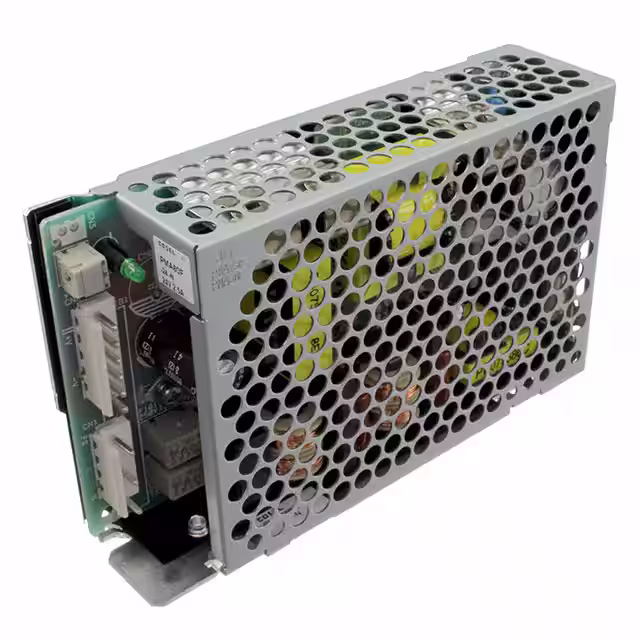

PMA60F-24-NAC/DC CONVERTER 24V |
1,896 |
|
Datasheet | PMA (60W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 2.5 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 5.31" L x 1.26" W x 3.23" H (134.9mm x 32.0mm x 82.0mm) |
|

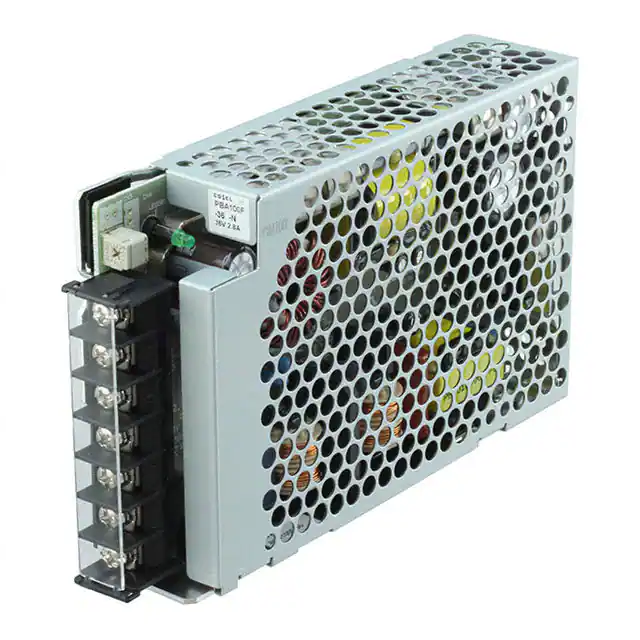

PBA100F-5-NAC/DC CONVERTER 5V 100W |
4,389 |
|
Datasheet | PBA (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 20 A | - | - | - | - | - | 100W | ITE (Commercial) | - | - | DC Input Capable, Universal Input | Chassis Mount | - |
|

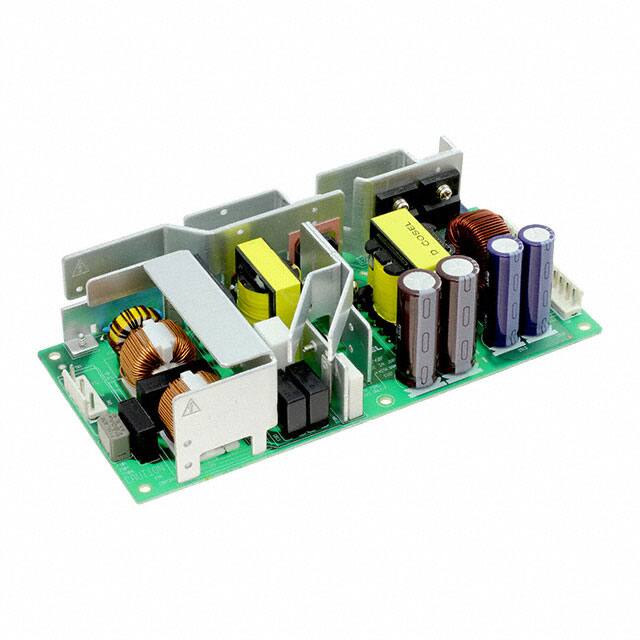

LFA240F-24AC/DC CONVERTER 24V |
4,699 |
|
Datasheet | LFA (240W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 10 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 5.20" L x 1.97" W x 1.04" H (132.1mm x 50.0mm x 26.4mm) |
|
GHA300F-48AC/DC CONVERTER 48V 100W |
3,088 |
|
Datasheet | GHA (300W) | Box | Active | Open Frame | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 2.1 A | - | - | - | - | - | 100W (300W Forced Air) | ITE (Commercial), Medical | 4 kV | -20°C ~ 80°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|
LFP240F-30-SNYAC/DC CONVERTER 30V |
3,980 |
|
Datasheet | LFP (240W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 30V | - | - | - | - | - | 8 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 7.09" L x 3.31" W x 1.81" H (180.1mm x 84.1mm x 46.0mm) |
