AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LFA300F-24-SNFTYAC/DC CONVERTER 24V |
3,922 |
|
Datasheet | LFA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 8.74" L x 3.74" W x 2.07" H (222.0mm x 95.0mm x 52.6mm) |
|
|
LFA300F-5-SNFTYAC/DC CONVERTER 5V |
3,319 |
|
Datasheet | LFA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 40 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 8.74" L x 3.74" W x 2.07" H (222.0mm x 95.0mm x 52.6mm) |
|
PLA600F-24-WAC/DC PS (ENCLOSED TYPE) |
3,101 |
|
Datasheet | PLA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 25 A | - | - | - | - | - | 600W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Remote Sense, Universal Input | Chassis Mount | 8.46" L x 4.72" W x 2.40" H (215.0mm x 120.0mm x 61.0mm) |
|
|
LFA300F-24-HSNFTYAC/DC CONVERTER 24V |
2,053 |
|
Datasheet | LFA (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 8.74" L x 3.74" W x 2.07" H (222.0mm x 95.0mm x 52.6mm) |
|
LDA300W-24AC/DC CONVERTER 24V 336W |
3,072 |
|
Datasheet | LDA (300W) | Box | Obsolete | Open Frame | 1 | 85 ~ 132 VAC, 170 ~ 264 VAC | 24V | - | - | - | - | - | 14 A | - | - | - | - | - | 336W | ITE (Commercial) | 3 kV | -10°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 10.04" L x 4.25" W x 1.85" H (255.0mm x 108.0mm x 47.0mm) |
|
|
GHA300F-24-SNFAC/DC CONVERTER 24V 300W |
4,986 |
|
Datasheet | GHA (300W) | Box | Active | Open Frame, Conformal Coated | 1 | 90 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|
|
GHA300F-48-SNFAC/DC CONVERTER 48V 302W |
2,253 |
|
Datasheet | GHA (300W) | Box | Active | Open Frame, Conformal Coated | 1 | 90 ~ 264 VAC | 48V | - | - | - | - | - | 6.3 A | - | - | - | - | - | 302W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|
|
GHA300F-12-SNFAC/DC CONVERTER 12V 300W |
3,311 |
|
Datasheet | GHA (300W) | Box | Active | Open Frame, Conformal Coated | 1 | 90 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 5.00" L x 3.00" W x 1.38" H (127.0mm x 76.2mm x 35.0mm) |
|

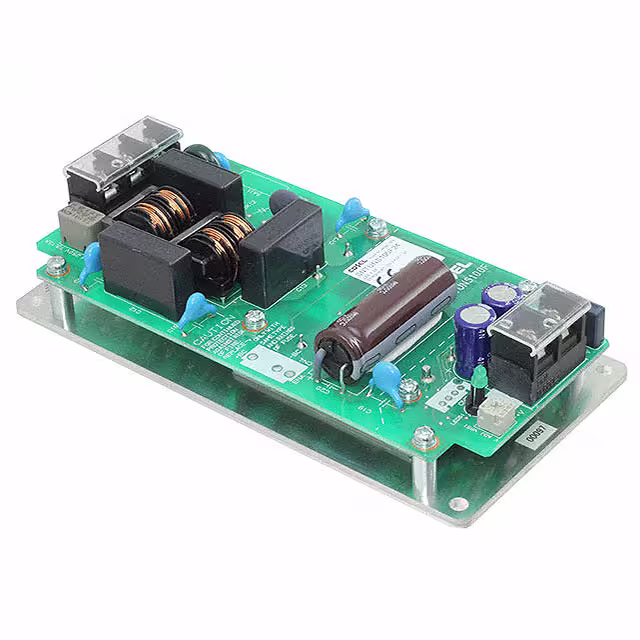

SNTUNS100F05AC/DC CONVERTER 5V |
3,741 |
|
Datasheet | SNTUNS (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 2 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -20°C ~ 95°C | - | Chassis Mount | 5.91" L x 1.97" W x 1.42" H (150.1mm x 50.0mm x 36.1mm) |
|

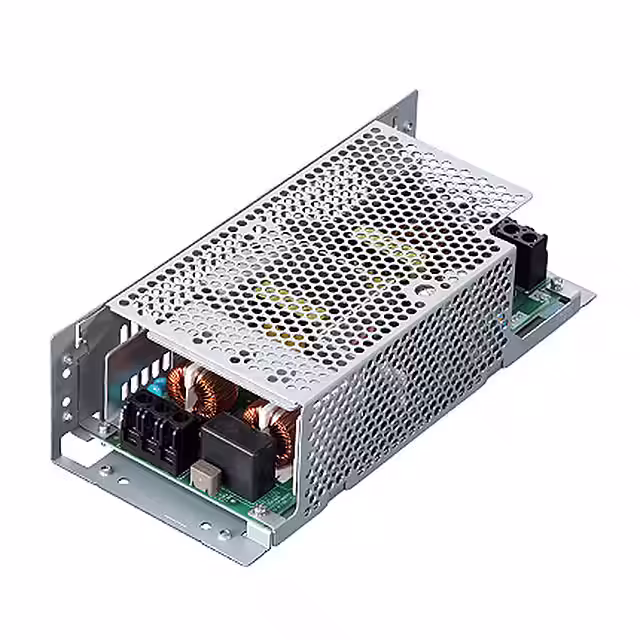

LFP300F-24-SNFTYAC/DC CONVERTER 24V |
4,844 |
|
Datasheet | LFP (300W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 8.74" L x 3.74" W x 2.07" H (222.0mm x 95.0mm x 52.6mm) |
