AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LDA75F-15AC/DC CONVERTER 15V 75W |
1,927 |
|
Datasheet | LDA (75W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.74" L x 2.17" W x 1.26" H (222.0mm x 55.0mm x 32.0mm) |
|

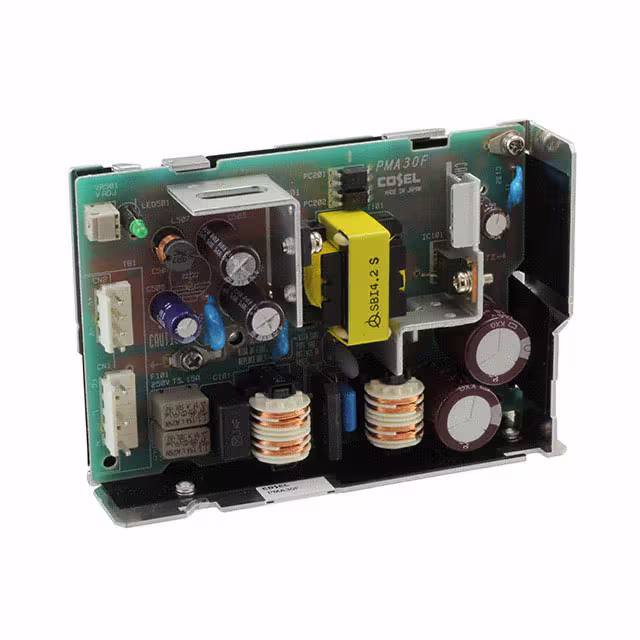

PMA30F-3R3AC/DC CONVERTER 3.3V |
2,608 |
|
Datasheet | PMA (30W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 6 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
|
LFA100F-15-YAC/DC CONVERTER 15V |
1,106 |
|
Datasheet | LFA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.10" L x 2.44" W x 1.32" H (154.9mm x 62.0mm x 33.5mm) |
|
|
LDA75F-15-YAC/DC CONVERTER 15V 75W |
4,788 |
|
Datasheet | LDA (75W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC, 110 ~ 370 VDC | 15V | - | - | - | - | - | 5 A | - | - | - | - | - | 75W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 8.74" L x 2.17" W x 1.26" H (222.0mm x 55.0mm x 32.0mm) |
|

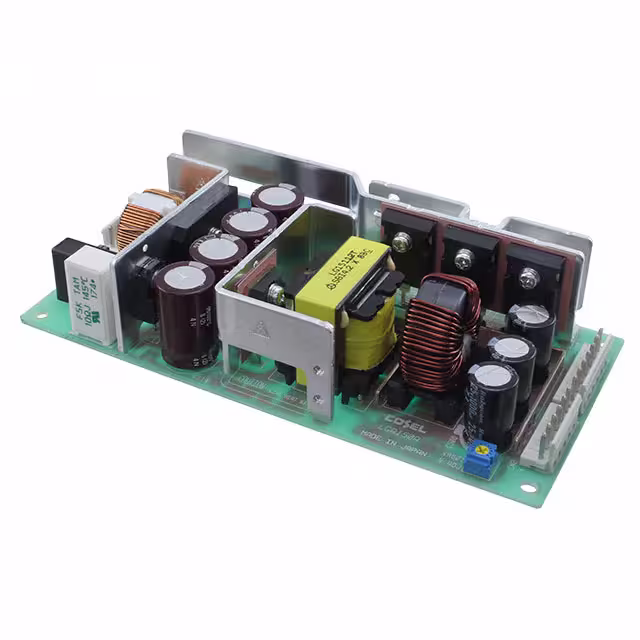

LGA150A-12-YAC/DC CONVERTER 12V |
4,640 |
|
Datasheet | LGA (150W) | Box | Active | Open Frame | 1 | 85 ~ 132 VAC | 12V | - | - | - | - | - | 12.5 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.54" H (160.0mm x 74.9mm x 39.1mm) |
|
LGA150A-3R3-YAC/DC CONVERTER 3.3V |
2,747 |
|
Datasheet | LGA (150W) | Box | Active | Open Frame | 1 | 85 ~ 132 VAC | 3.3V | - | - | - | - | - | 30 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.54" H (160.0mm x 74.9mm x 39.1mm) |
|

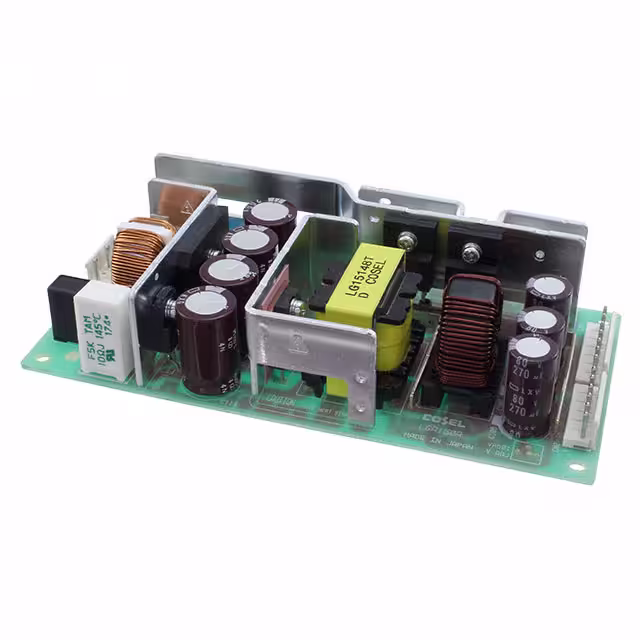

LGA150A-48AC/DC CONVERTER 48V |
2,812 |
|
Datasheet | LGA (150W) | Box | Active | Open Frame | 1 | 85 ~ 132 VAC | 48V | - | - | - | - | - | 3.2 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 6.30" L x 2.95" W x 1.54" H (160.0mm x 74.9mm x 39.1mm) |
|
PMA30F-5-NAC/DC CONVERTER 5V |
1,681 |
|
Datasheet | PMA (30W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 5V | - | - | - | - | - | 6 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
|

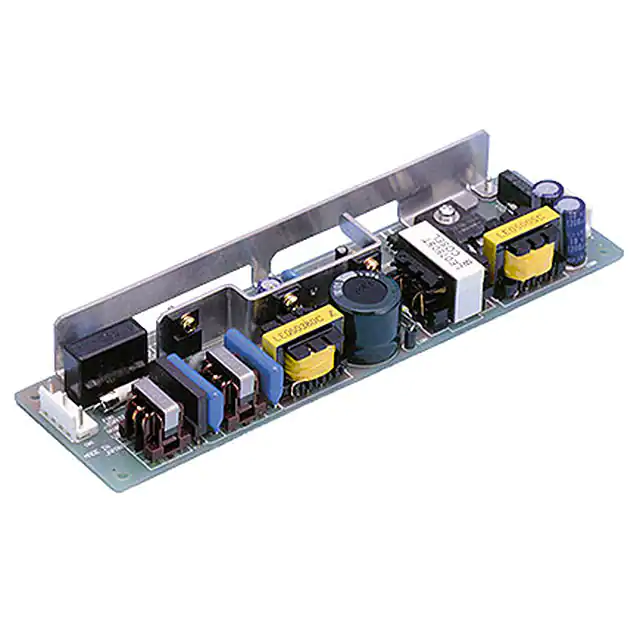

LEA50F-3R3-YAC/DC CONVERTER 3.3V 50W |
2,487 |
|
Datasheet | LEA (50W) | Box | Obsolete | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 10 A | - | - | - | - | - | 50W | ITE (Commercial) | 3 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 7.68" L x 2.17" W x 0.91" H (195.0mm x 55.0mm x 23.0mm) |
|
|
LFA100F-12-SNAC/DC CONVERTER 12V 100W |
2,155 |
|
Datasheet | LFA (100W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | 100W | ITE (Commercial) | - | -10°C ~ 70°C (With Derating) | Universal Input | Chassis Mount | - |
