AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
GMA300F-24-CAC/DC CONVERTER 24V 300W |
2,245 |
|
Datasheet | GMA (300W) | Box | Active | Open Frame, Conformal Coated | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.44" H (101.6mm x 50.8mm x 36.6mm) |
|
|
GMA300F-24-R3AC/DC CONVERTER 24V 300W |
1,909 |
|
Datasheet | GMA (300W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 12.5 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.44" H (101.6mm x 50.8mm x 36.6mm) |
|
|
GMA300F-12-CAC/DC CONVERTER 12V 300W |
3,834 |
|
Datasheet | GMA (300W) | Box | Active | Open Frame, Conformal Coated | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 25 A | - | - | - | - | - | 300W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Universal Input | Chassis Mount | 4.00" L x 2.00" W x 1.44" H (101.6mm x 50.8mm x 36.6mm) |
|
PJMA600F-36AC/DC CONVERTER 36V 601W |
2,633 |
|
Datasheet | PJMA (600W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 16.7 A | - | - | - | - | - | 601W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 8.46" L x 4.72" W x 2.40" H (214.9mm x 119.9mm x 61.0mm) |
|

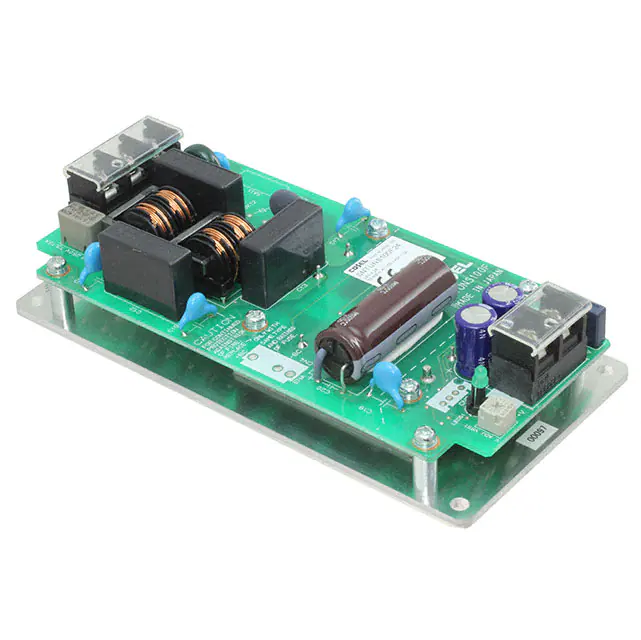

SNTUNS100F12AC/DC CONVERTER 12V |
4,041 |
|
Datasheet | SNTUNS (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 8.4 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -20°C ~ 95°C | - | Chassis Mount | 5.91" L x 1.97" W x 1.42" H (150.1mm x 50.0mm x 36.1mm) |
|
|
SNTUNS100F24AC/DC CONVERTER 24V |
4,446 |
|
Datasheet | SNTUNS (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 24V | - | - | - | - | - | 4.2 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -20°C ~ 95°C | - | Chassis Mount | 5.91" L x 1.97" W x 1.42" H (150.1mm x 50.0mm x 36.1mm) |
|

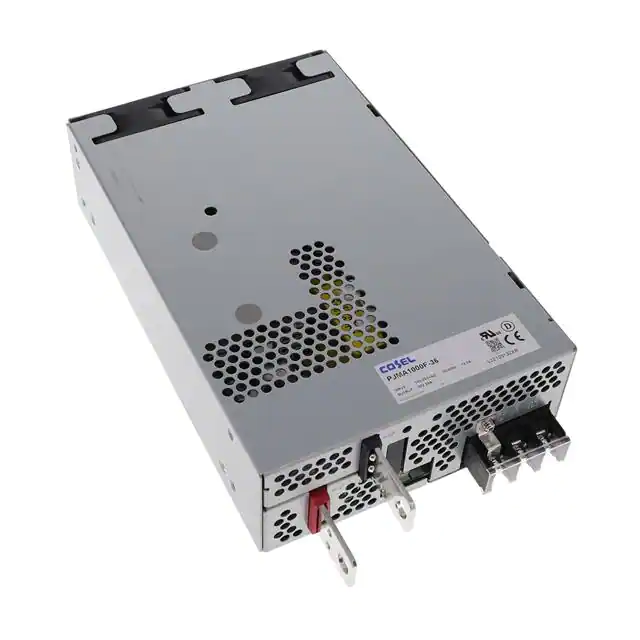

PJMA1000F-36AC/DC CONVERTER 36V 1008W |
1,925 |
|
Datasheet | PJMA (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 36V | - | - | - | - | - | 28 A | - | - | - | - | - | 1008W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.45" L x 5.91" W x 2.40" H (240.0mm x 150.1mm x 61.0mm) |
|
PJMA1000F-12AC/DC CONVERTER 12V 1008W |
2,224 |
|
Datasheet | PJMA (1000W) | Bulk | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 84 A | - | - | - | - | - | 1008W | Medical | 4 kV | -20°C ~ 70°C (With Derating) | Adjustable Output, PFC, Universal Input | Chassis Mount | 9.45" L x 5.91" W x 2.40" H (240.0mm x 150.1mm x 61.0mm) |
|
PCA600F-12-TP2AC/DC CONVERTER 12V 636W |
4,227 |
|
Datasheet | PCA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 53 A | - | - | - | - | - | 636W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) |
|
PCA600F-32-P2AC/DC CONVERTER 32V 640W |
2,048 |
|
Datasheet | PCA (600W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 32V | - | - | - | - | - | 20 A | - | - | - | - | - | 640W | ITE (Commercial), Medical | 4 kV | -20°C ~ 70°C | Adjustable Output, PFC, Remote On/Off, Remote Sense, Universal Input | Chassis Mount | 5.98" L x 3.50" W x 1.61" H (152.0mm x 89.0mm x 41.0mm) |
