AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBW30F-12-TNAC/DC CONVERTER +/-12V |
1,306 |
|
Datasheet | PBW (30W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 1.3 A | 1.7 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) |
|
|
PBW30F-15-TNAC/DC CONVERTER +/-15V |
2,138 |
|
Datasheet | PBW (30W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 15V | -15V | - | - | - | - | 1 A | 1.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) |
|
|
PBW30F-5-TNAC/DC CONVERTER +/-5V |
1,773 |
|
Datasheet | PBW (30W) | Box | Active | Enclosed | 2 | 85 ~ 264 VAC | 5V | -5V | - | - | - | - | 1.5 A | 2 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) |
|
LDC30F-1-YAC/DC CONVERTER 5V +/-12V 15W |
1,713 |
|
Datasheet | LDC (30W) | Box | Obsolete | Open Frame | 3 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | 12V | -12V | - | - | - | 3 A | 1.2 A | 300 mA | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.56" L x 1.02" W x 5.51" H (65.0mm x 25.9mm x 140.0mm) |
|
|
LDC30F-2-YAC/DC CONVERTER 5V +/-15V 15W |
4,695 |
|
Datasheet | LDC (30W) | Box | Obsolete | Open Frame | 3 | 85 ~ 264 VAC, 110 ~ 370 VDC | 5V | 15V | -15V | - | - | - | 3 A | 1 A | 300 mA | - | - | - | 15W | ITE (Commercial) | 3 kV | -10°C ~ 60°C (With Derating) | Adjustable Output, Universal Input | Chassis Mount | 2.56" L x 1.02" W x 5.51" H (65.0mm x 25.9mm x 140.0mm) |
|

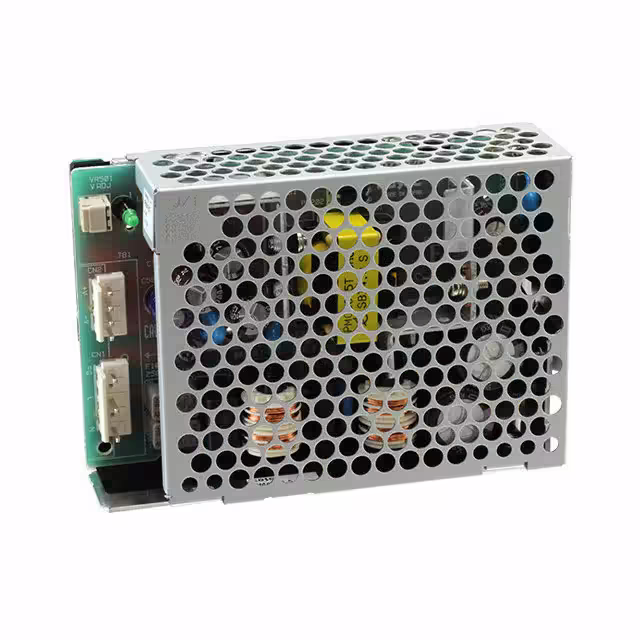

PMA30F-15-NAC/DC CONVERTER 15V |
1,338 |
|
Datasheet | PMA (30W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 2 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 4.72" L x 1.22" W x 3.23" H (119.9mm x 31.0mm x 82.0mm) |
|
LFA100F-12-SGAC/DC CONVERTER 12V |
3,606 |
|
Datasheet | LFA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.10" L x 2.44" W x 1.32" H (154.9mm x 62.0mm x 33.5mm) |
|
|
LFA100F-12-SGJ1AC/DC CONVERTER 12V |
1,016 |
|
Datasheet | LFA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.10" L x 2.44" W x 1.32" H (154.9mm x 62.0mm x 33.5mm) |
|
|
LFA100F-12-SGYAC/DC CONVERTER 12V |
1,263 |
|
Datasheet | LFA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 8.5 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.10" L x 2.44" W x 1.32" H (154.9mm x 62.0mm x 33.5mm) |
|
|
LFA100F-15-SGAC/DC CONVERTER 15V |
2,265 |
|
Datasheet | LFA (100W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 6.7 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 6.10" L x 2.44" W x 1.32" H (154.9mm x 62.0mm x 33.5mm) |
