AC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Number of Outputs | Voltage - Input | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Voltage - Output 5 | Voltage - Output 6 | Current - Output 1 | Current - Output 2 | Current - Output 3 | Current - Output 4 | Current - Output 5 | Current - Output 6 | Power (Watts) | Applications | Voltage - Isolation | Operating Temperature | Features | Mounting Type | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PBA15F-9-CAC/DC CONVERTER 9V |
4,949 |
|
Datasheet | PBA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 1.7 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
LGA75A-24-HSNAC/DC CONVERTER 24V |
1,851 |
|
Datasheet | LGA (75W) | Box | Active | Enclosed | 1 | 85 ~ 132 VAC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 5.91" L x 1.97" W x 1.36" H (150.1mm x 50.0mm x 34.5mm) |
|
|
LGA75A-24-HSNJ1AC/DC CONVERTER 24V |
1,408 |
|
Datasheet | LGA (75W) | Box | Active | Enclosed | 1 | 85 ~ 132 VAC | 24V | - | - | - | - | - | 3.2 A | - | - | - | - | - | - | ITE (Commercial) | 2 kV | -10°C ~ 60°C | - | Chassis Mount | 5.91" L x 1.97" W x 1.36" H (150.1mm x 50.0mm x 34.5mm) |
|
|
PBA15F-12-GTNAC/DC CONVERTER 12V |
3,634 |
|
Datasheet | PBA (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
PBA15F-9-ETNAC/DC CONVERTER 9V |
1,511 |
|
Datasheet | PBA (15W) | Box | Active | Enclosed | 1 | 85 ~ 264 VAC | 9V | - | - | - | - | - | 1.7 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|

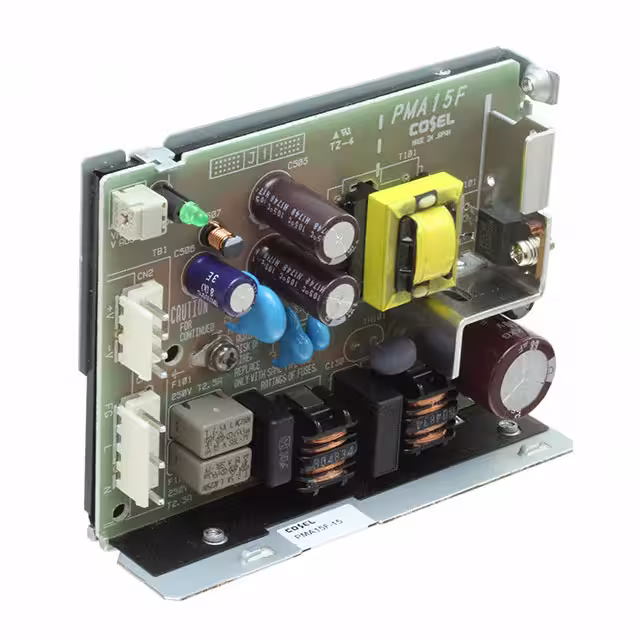

PMA15F-15AC/DC CONVERTER 15V |
4,223 |
|
Datasheet | PMA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 15V | - | - | - | - | - | 1 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) |
|

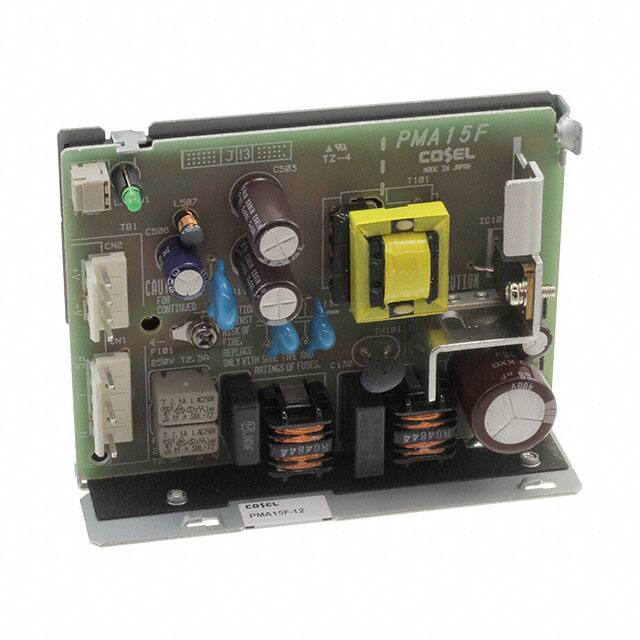

PMA15F-12AC/DC CONVERTER 12V |
1,571 |
|
Datasheet | PMA (15W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 12V | - | - | - | - | - | 1.3 A | - | - | - | - | - | - | Medical | 2 kV | -10°C ~ 70°C | - | Chassis Mount | 4.06" L x 1.22" W x 3.07" H (103.1mm x 31.0mm x 78.0mm) |
|
LFA50F-3R3-GJ1YAC/DC CONVERTER 3.3V |
2,724 |
|
Datasheet | LFA (50W) | Box | Active | Open Frame | 1 | 85 ~ 264 VAC | 3.3V | - | - | - | - | - | 10 A | - | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 70°C | - | Chassis Mount | 5.20" L x 1.97" W x 1.04" H (132.1mm x 50.0mm x 26.4mm) |
|
PBW15F-12-EAC/DC CONVERTER +/-12V |
2,367 |
|
Datasheet | PBW (15W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 700 mA | 1.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
|
|
PBW15F-12-GAC/DC CONVERTER +/-12V |
3,110 |
|
Datasheet | PBW (15W) | Box | Active | Open Frame | 2 | 85 ~ 264 VAC | 12V | -12V | - | - | - | - | 700 mA | 1.4 A | - | - | - | - | - | ITE (Commercial) | 3 kV | -10°C ~ 71°C (With Derating) | - | Chassis Mount | 3.35" L x 1.22" W x 3.07" H (85.1mm x 31.0mm x 78.0mm) |
