Wireless Charging Coils
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Function | Type | Inductance | Tolerance | DC Resistance (DCR) | Q @ Freq | Current Rating (Amps) | Current - Saturation (Isat) | Frequency - Self Resonant | Operating Temperature | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SWC5547AK120-500TX 1 COIL 1 LAYER 12.5UH |
225 |
|
Datasheet | SWC | Box | Active | Transmitter | 1 Coil, 1 Layer | 12.5µH | ±10% | 65mOhm Max | 90 @ 100kHz | - | - | - | -40°C ~ 125°C | 2.173" L x 1.858" W x 0.118" H (55.20mm x 47.20mm x 3.00mm) |
|
RWC5050AK060-500TX 1 COIL 1 LAYER 6.5UH |
1,399 |
|
Datasheet | RWC | Box | Active | Transmitter | 1 Coil, 1 Layer | 6.5µH | ±10% | 50mOhm Max | 70 @ 100kHz | - | - | - | -40°C ~ 125°C | 1.97" Dia x 0.12" H (50.0mm x 3.0mm) |
|
RWC5353EJ240-501TX 1 COIL 2 LAYER 24UH 5.5A |
4,076 |
|
Datasheet | RWC | Box | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 75mOhm Max | 90 @ 100kHz | 5.5A | 10A | - | -40°C ~ 125°C | 2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm) |
|

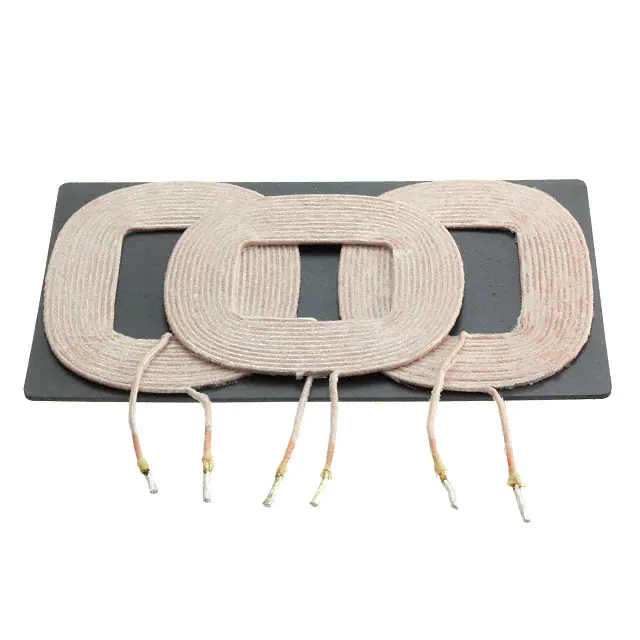

SWC10056AA120-500TRANSMITTER 3 COIL 1 LAYER |
4,650 |
|
Datasheet | SWC | Box | Active | Transmitter | 3 Coil, 1 Layer | 12.5µH, 11.5µH, 12.5µH | ±10% | 65mOhm Max | 90 @ 100kHz | - | - | - | -40°C ~ 125°C | 3.94" L x 2.20" W x 0.18" H (100.0mm x 56mm x 4.5mm) |
|
RWC5353EJ240-500TX 1 COIL 2 LAYER 24UH 5.5A |
3,971 |
|
Datasheet | RWC | Box | Active | Transmitter | 1 Coil, 2 Layer | 24µH | ±10% | 75mOhm Max | 90 @ 100kHz | 5.5A | 10A | - | -40°C ~ 125°C | 2.09" L x 2.09" W x 0.26" H (53.0mm x 53.0mm x 6.7mm) |
|

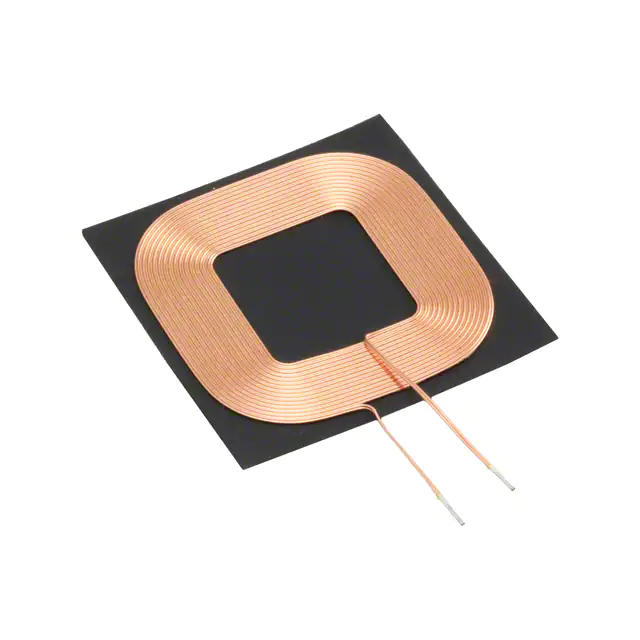

SWC4242KB120-100RX 1 COIL 1 LAYER 12.5UH |
2,536 |
|
Datasheet | SWC | Box | Active | Receiver | 1 Coil, 1 Layer | 12.5µH | ±10% | 240mOhm Max | 20 @ 100kHz | - | - | - | -40°C ~ 85°C | 1.65" L x 1.65" W x 0.03" H (42.0mm x 42.0mm x 0.7mm) |
