Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVM-1DSX30B15TRIMMER 100K OHM 0.2W J LEAD TOP |
2,469 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 100 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) |
|
|
EVM-1DSX30B25TRIMMER 200K OHM 0.2W J LEAD TOP |
1,951 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 200 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) |
|
|
EVM-1DSX30B55TRIMMER 500K OHM 0.2W J LEAD TOP |
1,347 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 500 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.177" x 0.150" Face (4.50mm x 3.80mm) |
|

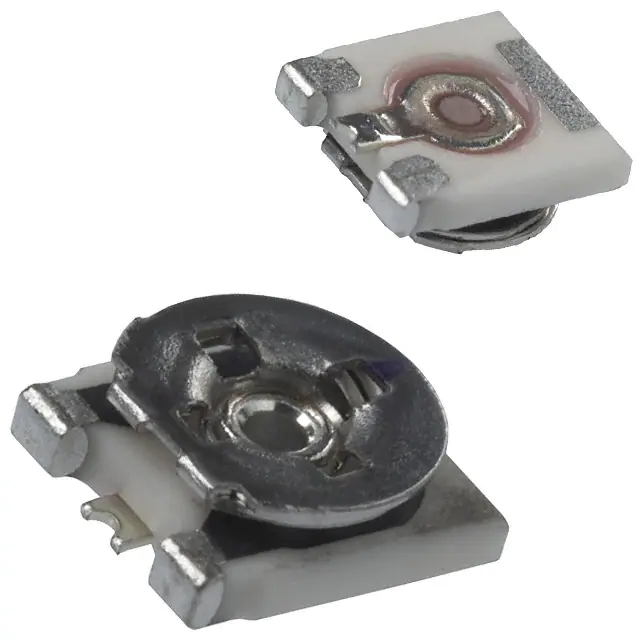

EVM-1ESX30B22TRIMMER 200 OHM 0.2W J LEAD TOP |
3,883 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 200 Ohms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.165" x 0.150" Face (4.20mm x 3.80mm) |
|
|
EVM-1ESX30B52TRIMMER 500 OHM 0.2W J LEAD TOP |
2,377 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 500 Ohms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.165" x 0.150" Face (4.20mm x 3.80mm) |
|
|
EVM-1ESX30B13TRIMMER 1K OHM 0.2W J LEAD TOP |
3,235 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 1 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.165" x 0.150" Face (4.20mm x 3.80mm) |
|
|
EVM-1ESX30B23TRIMMER 2K OHM 0.2W J LEAD TOP |
4,043 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 2 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.165" x 0.150" Face (4.20mm x 3.80mm) |
|
|
EVM-1ESX30B53TRIMMER 5K OHM 0.2W J LEAD TOP |
1,512 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 5 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.165" x 0.150" Face (4.20mm x 3.80mm) |
|
|
EVM-1ESX30B14TRIMMER 10K OHM 0.2W J LEAD TOP |
2,431 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 10 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.165" x 0.150" Face (4.20mm x 3.80mm) |
|
|
EVM-1ESX30B24TRIMMER 20K OHM 0.2W J LEAD TOP |
2,620 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 20 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.165" x 0.150" Face (4.20mm x 3.80mm) |
|
|
EVM-1ESX30B54TRIMMER 50K OHM 0.2W J LEAD TOP |
4,807 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 50 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.165" x 0.150" Face (4.20mm x 3.80mm) |
|
|
EVM-1ESX30B15TRIMMER 100K OHM 0.2W J LEAD TOP |
3,178 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 100 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.165" x 0.150" Face (4.20mm x 3.80mm) |
|
|
EVM-1ESX30B55TRIMMER 500K OHM 0.2W J LEAD TOP |
4,467 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 500 kOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.165" x 0.150" Face (4.20mm x 3.80mm) |
|
|
EVM-1ESX30B16TRIMMER 1M OHM 0.2W J LEAD TOP |
3,801 |
|
Datasheet | EVM | Tape & Reel (TR) | Obsolete | 1 MOhms | 0.2W, 1/5W | ±25% | ±250ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.165" x 0.150" Face (4.20mm x 3.80mm) |
|
201XR503BTRIMMER 50K OHM 0.2W PC PIN SIDE |
4,605 |
|
Datasheet | 201 | Bulk | Obsolete | 50 kOhms | 0.2W, 1/5W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.734" x 0.594" Face (18.64mm x 15.10mm) |
|
|
201XR101BTRIMMER 100OHM 0.25W PC PIN SIDE |
2,624 |
|
Datasheet | 201 | Bulk | Obsolete | 100 Ohms | 0.25W, 1/4W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.734" x 0.594" Face (18.64mm x 15.10mm) |
|
|
201XR251BTRIMMER 250OHM 0.25W PC PIN SIDE |
2,303 |
|
Datasheet | 201 | Bulk | Obsolete | 250 Ohms | 0.25W, 1/4W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.734" x 0.594" Face (18.64mm x 15.10mm) |
|
|
201XR501BTRIMMER 500OHM 0.25W PC PIN SIDE |
2,646 |
|
Datasheet | 201 | Bulk | Obsolete | 500 Ohms | 0.25W, 1/4W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.734" x 0.594" Face (18.64mm x 15.10mm) |
|
|
201XR102BTRIMMER 1K OHM 0.25W PC PIN SIDE |
1,321 |
|
Datasheet | 201 | Bulk | Obsolete | 1 kOhms | 0.25W, 1/4W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.734" x 0.594" Face (18.64mm x 15.10mm) |
|
|
201XR252BTRIMMER 2.5K OHM 0.25W PC PIN |
1,669 |
|
Datasheet | 201 | Bulk | Obsolete | 2.5 kOhms | 0.25W, 1/4W | ±20% | - | 1.0 | Side Adjustment | Carbon | Through Hole | PC Pins | Rectangular - 0.734" x 0.594" Face (18.64mm x 15.10mm) |
