Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

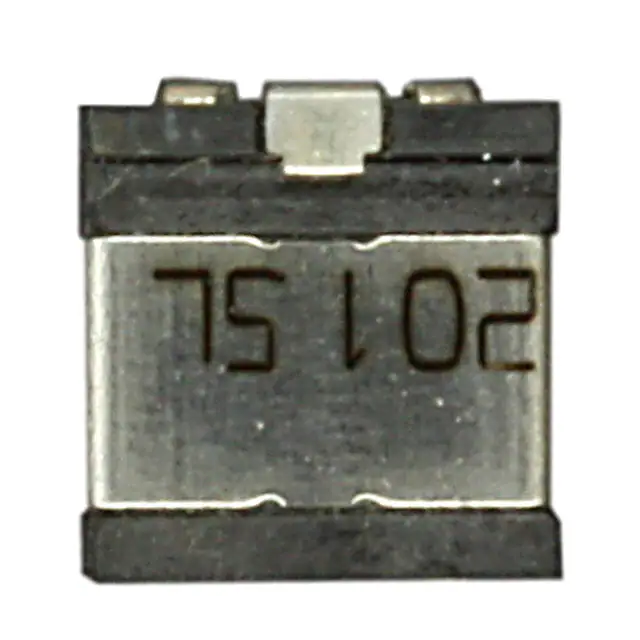

SM4W102TRIMMER 1K OHM 0.25W J LEAD TOP |
2,439 |
|
Datasheet | SM4 | Bulk | Obsolete | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.146" Face (4.90mm x 3.70mm) |
|
|
SM4W202TRIMMER 2K OHM 0.25W J LEAD TOP |
4,936 |
|
Datasheet | SM4 | Bulk | Obsolete | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.146" Face (4.90mm x 3.70mm) |
|
|
SM4W502TRIMMER 5K OHM 0.25W J LEAD TOP |
4,363 |
|
Datasheet | SM4 | Bulk | Obsolete | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.146" Face (4.90mm x 3.70mm) |
|
|
SM4W103TRIMMER 10K OHM 0.25W J LEAD TOP |
2,007 |
|
Datasheet | SM4 | Bulk | Obsolete | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.146" Face (4.90mm x 3.70mm) |
|
|
SM4W203TRIMMER 20K OHM 0.25W J LEAD TOP |
3,947 |
|
Datasheet | SM4 | Bulk | Obsolete | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.146" Face (4.90mm x 3.70mm) |
|
|
SM4W503TRIMMER 50K OHM 0.25W J LEAD TOP |
4,717 |
|
Datasheet | SM4 | Bulk | Obsolete | 50 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.146" Face (4.90mm x 3.70mm) |
|
|
SM4W104TRIMMER 100KOHM 0.25W J LEAD TOP |
2,742 |
|
Datasheet | SM4 | Bulk | Obsolete | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.146" Face (4.90mm x 3.70mm) |
|
SM4A101TRIMMER 100OHM 0.25W J LEAD SIDE |
2,558 |
|
Datasheet | SM4 | Bulk | Obsolete | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.146" Face (4.90mm x 3.70mm) |
|
|
SM4A201TRIMMER 200OHM 0.25W J LEAD SIDE |
3,567 |
|
Datasheet | SM4 | Bulk | Obsolete | 200 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.146" Face (4.90mm x 3.70mm) |
|
|
SM4A501TRIMMER 500OHM 0.25W J LEAD SIDE |
1,159 |
|
Datasheet | SM4 | Bulk | Obsolete | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.146" Face (4.90mm x 3.70mm) |
