Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
FT-63EP201TRIMMER 200 OHM 0.5W PC PIN TOP |
111 |
|
Datasheet | FT-63 | Bulk | Active | 200 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Square - 0.276" x 0.276" Face (7.00mm x 7.00mm) |
|
|
FT-63EV202TRIMMER 2K OHM 0.5W PC PIN TOP |
105 |
|
Datasheet | FT-63 | Bulk | Active | 2 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Square - 0.276" x 0.276" Face (7.00mm x 7.00mm) |
|
|
CT-6ES102TRIMMER 1K OHM 0.5W PC PIN SIDE |
143 |
|
Datasheet | CT6 | Bulk | Active | 1 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.323" x 0.276" Face (8.20mm x 7.00mm) |
|
|
CT-9EP503TRIMMER 50K OHM 0.5W PC PIN SIDE |
2,833 |
|
Datasheet | CT9 | Bulk | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.378" x 0.378" Face (9.60mm x 9.60mm) |
|
|
ST-4ETA201TRIMMER 200 OHM 0.25W J LEAD TOP |
693 |
|
Datasheet | ST4 | Tape & Reel (TR) | Active | 200 Ohms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.197" x 0.177" Face (5.00mm x 4.50mm) |
|
|
CT-94EX101TRIMMER 100 OHM 0.5W PC PIN SIDE |
164 |
|
Datasheet | CT94 | Bulk | Active | 100 Ohms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.378" x 0.189" Face (9.60mm x 4.80mm) |
|
|
RJ-5EX104TRIMMER 100K OHM 0.25W PC PIN |
703 |
|
Datasheet | RJ-5 | Bulk | Active | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 14.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.236" x 0.169" Face (6.00mm x 4.30mm) |
|

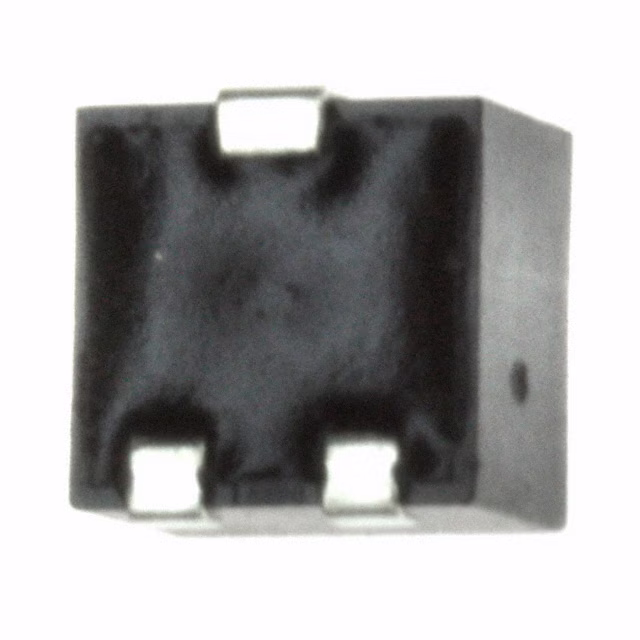

SM-42TA105TRIMMER 1M OHM 0.25W J LEAD SIDE |
675 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 1 MOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
TM-7ES105TRIMMER 1M OHM 0.5W PC PIN SIDE |
200 |
|
Datasheet | TM-7 | Bulk | Active | 1 MOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 3.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.323" x 0.283" Face (8.20mm x 7.20mm) |
|
|
ST-5ETP502TRIMMER 5K OHM 0.25W GW SIDE ADJ |
501 |
|
Datasheet | ST5 | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 14.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.266" x 0.236" Face (6.75mm x 6.00mm) |
