Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

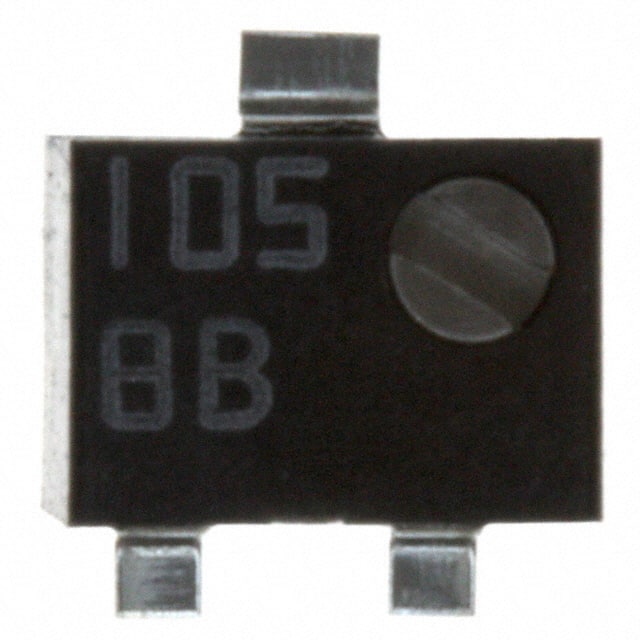

SM-42TX105TRIMMER 1M OHM 0.25W GW TOP ADJ |
252 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 1 MOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
ST-2TA101TRIMMER 100 OHM 0.1W J LEAD TOP |
1,494 |
|
Datasheet | ST2 | Tape & Reel (TR) | Active | 100 Ohms | 0.1W, 1/10W | ±20% | ±150ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.110" x 0.094" Face (2.80mm x 2.40mm) |
|
|
ST-5ETX103TRIMMER 10K OHM 0.25W GW SIDE |
1,707 |
|
Datasheet | ST5 | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 14.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.236" x 0.169" Face (6.00mm x 4.30mm) |
|
|
ST-7ETA502TRIMMER 5K OHM 0.25W J LEAD TOP |
1,465 |
|
Datasheet | ST7 | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 3.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.252" x 0.240" Face (6.40mm x 6.10mm) |
|
|
ST-7ETA103TRIMMER 10K OHM 0.25W J LEAD TOP |
256 |
|
Datasheet | ST7 | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±20% | ±100ppm/°C | 3.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.252" x 0.240" Face (6.40mm x 6.10mm) |
|
|
CT-6EW203TRIMMER 20K OHM 0.5W PC PIN TOP |
215 |
|
Datasheet | CT6 | Bulk | Active | 20 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 1.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Square - 0.276" x 0.276" Face (7.00mm x 7.00mm) |
|
|
CT-94EY504TRIMMER 500K OHM 0.5W PC PIN TOP |
1,041 |
|
Datasheet | CT94 | Bulk | Active | 500 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 18.0 | Top Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.378" x 0.189" Face (9.60mm x 4.80mm) |
|
|
CT-94EX503TRIMMER 50K OHM 0.5W PC PIN SIDE |
502 |
|
Datasheet | CT94 | Bulk | Active | 50 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Rectangular - 0.378" x 0.189" Face (9.60mm x 4.80mm) |
|
|
CT-9EP103TRIMMER 10K OHM 0.5W PC PIN SIDE |
876 |
|
Datasheet | CT9 | Bulk | Active | 10 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.378" x 0.378" Face (9.60mm x 9.60mm) |
|
|
CT-9EP202TRIMMER 2K OHM 0.5W PC PIN SIDE |
873 |
|
Datasheet | CT9 | Bulk | Active | 2 kOhms | 0.5W, 1/2W | ±10% | ±100ppm/°C | 18.0 | Side Adjustment | Cermet | Through Hole | PC Pins | Square - 0.378" x 0.378" Face (9.60mm x 9.60mm) |
