Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ST-2A502TRIMMER 5K OHM 0.1W J LEAD TOP |
1,001 |
|
Datasheet | ST2 | Bulk | Active | 5 kOhms | 0.1W, 1/10W | ±20% | ±150ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.110" x 0.094" Face (2.80mm x 2.40mm) |
|
|
ST-2A503TRIMMER 50K OHM 0.1W J LEAD TOP |
2,433 |
|
Datasheet | ST2 | Bulk | Active | 50 kOhms | 0.1W, 1/10W | ±20% | ±150ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.110" x 0.094" Face (2.80mm x 2.40mm) |
|
|
ST-2A504TRIMMER 500K OHM 0.1W J LEAD TOP |
4,161 |
|
Datasheet | ST2 | Bulk | Active | 500 kOhms | 0.1W, 1/10W | ±20% | ±150ppm/°C | 1.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.110" x 0.094" Face (2.80mm x 2.40mm) |
|

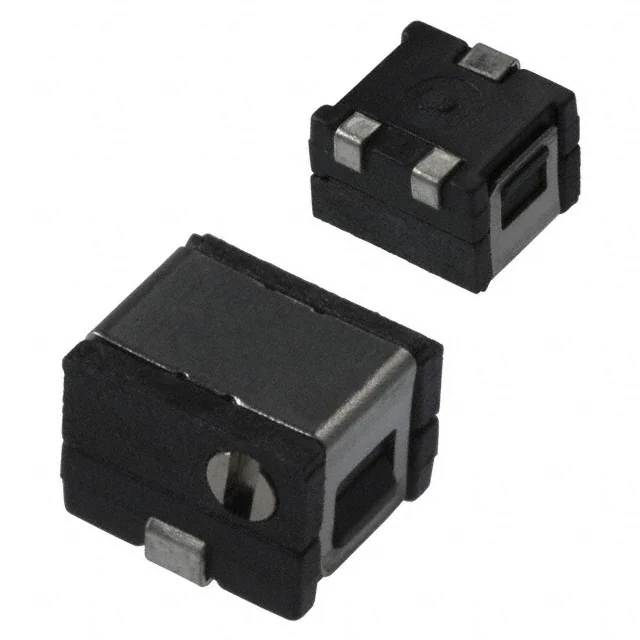

SM4ETA101TRIMMER 100OHM 0.25W J LEAD SIDE |
3,826 |
|
Datasheet | SM4 | Tape & Reel (TR) | Obsolete | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.177" Face (4.90mm x 4.50mm) |
|
|
SM4ETA102TRIMMER 1K OHM 0.25W J LEAD SIDE |
3,057 |
|
Datasheet | SM4 | Tape & Reel (TR) | Obsolete | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.177" Face (4.90mm x 4.50mm) |
|
|
SM4ETA103TRIMMER 10KOHM 0.25W J LEAD SIDE |
2,809 |
|
Datasheet | SM4 | Tape & Reel (TR) | Obsolete | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.177" Face (4.90mm x 4.50mm) |
|
|
SM4ETA104TRIMMER 100K OHM 0.25W J LEAD |
3,875 |
|
Datasheet | SM4 | Tape & Reel (TR) | Obsolete | 100 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.177" Face (4.90mm x 4.50mm) |
|
|
SM4ETA202TRIMMER 2K OHM 0.25W J LEAD SIDE |
1,945 |
|
Datasheet | SM4 | Tape & Reel (TR) | Obsolete | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.177" Face (4.90mm x 4.50mm) |
|
|
SM4ETA203TRIMMER 20KOHM 0.25W J LEAD SIDE |
1,104 |
|
Datasheet | SM4 | Tape & Reel (TR) | Obsolete | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.177" Face (4.90mm x 4.50mm) |
|
|
SM4ETA204TRIMMER 200K OHM 0.25W J LEAD |
2,682 |
|
Datasheet | SM4 | Tape & Reel (TR) | Obsolete | 200 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 12.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.193" x 0.177" Face (4.90mm x 4.50mm) |
