Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

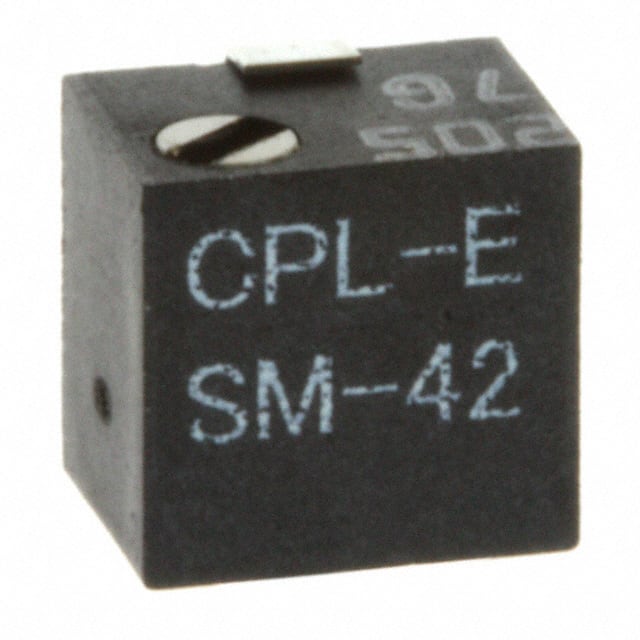

SM-42TA205TRIMMER 2M OHM 0.25W J LEAD SIDE |
1,684 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 2 MOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
SM-42TB100TRIMMER 10 OHM 0.25W GW SIDE ADJ |
1,209 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 10 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
SM-42TB200TRIMMER 20 OHM 0.25W GW SIDE ADJ |
3,991 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 20 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
SM-42TB500TRIMMER 50 OHM 0.25W GW SIDE ADJ |
3,332 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 50 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
SM-42TB101TRIMMER 100 OHM 0.25W GW SIDE |
3,684 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 100 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
SM-42TB201TRIMMER 200 OHM 0.25W GW SIDE |
3,428 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 200 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
SM-42TB501TRIMMER 500 OHM 0.25W GW SIDE |
1,086 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
SM-42TB102TRIMMER 1K OHM 0.25W GW SIDE ADJ |
2,148 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
SM-42TB202TRIMMER 2K OHM 0.25W GW SIDE ADJ |
2,480 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
SM-42TB502TRIMMER 5K OHM 0.25W GW SIDE ADJ |
4,958 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
