Trimmer Potentiometers
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Resistance | Power (Watts) | Tolerance | Temperature Coefficient | Number of Turns | Adjustment Type | Resistive Material | Mounting Type | Termination Style | Size / Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

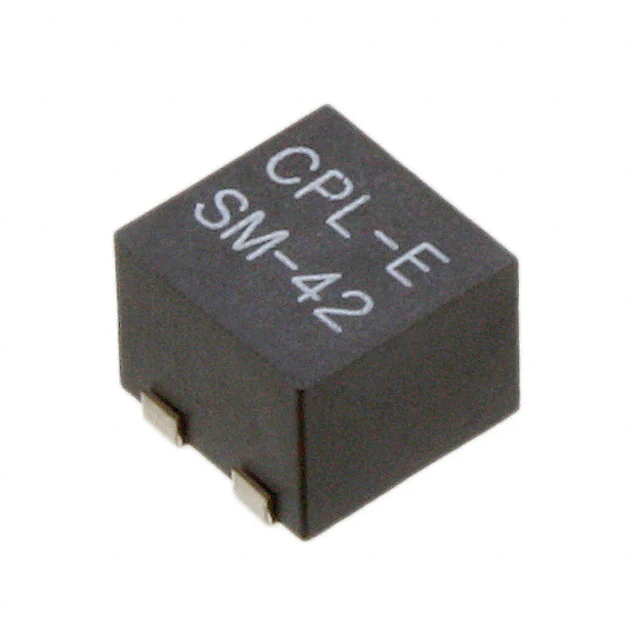

SM-42TA102TRIMMER 1K OHM 0.25W J LEAD SIDE |
5,263 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
SM-42TW202TRIMMER 2K OHM 0.25W J LEAD TOP |
5,035 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 2 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

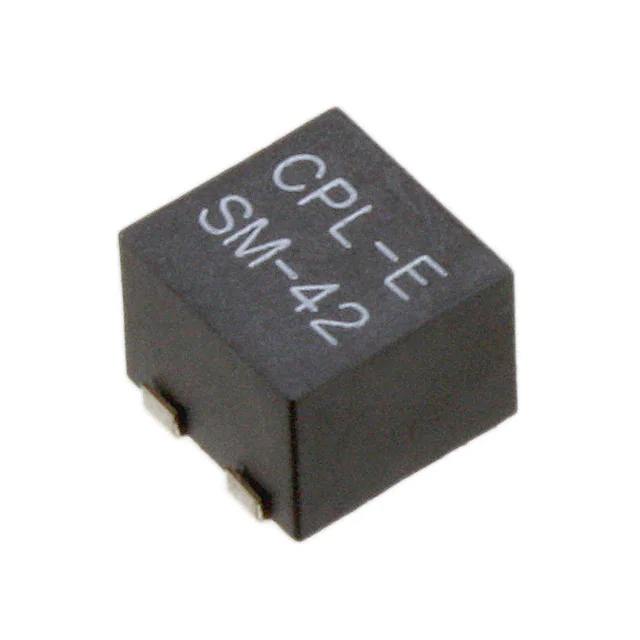

SM-42TA103TRIMMER 10KOHM 0.25W J LEAD SIDE |
4,748 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|

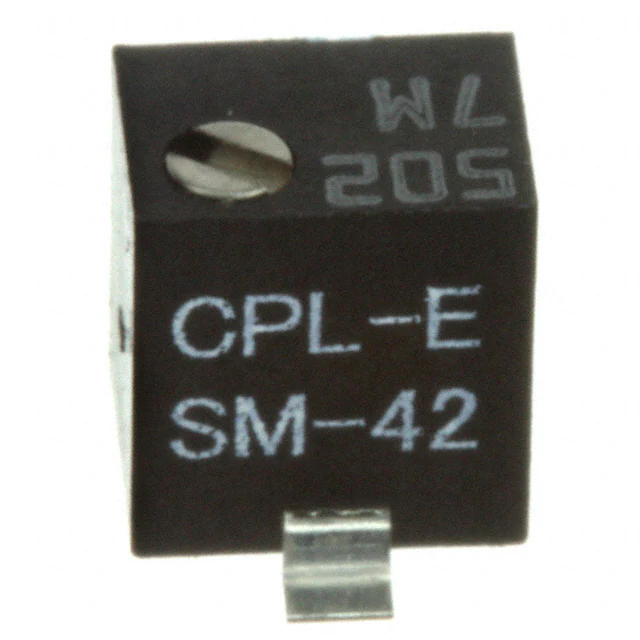

SM-42TX502TRIMMER 5K OHM 0.25W GW TOP ADJ |
4,154 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 5 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

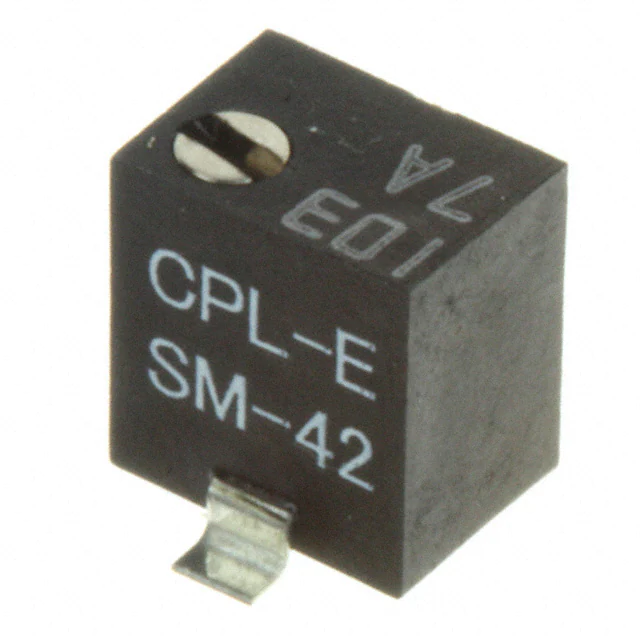

SM-42TX103TRIMMER 10K OHM 0.25W GW TOP ADJ |
2,885 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 10 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

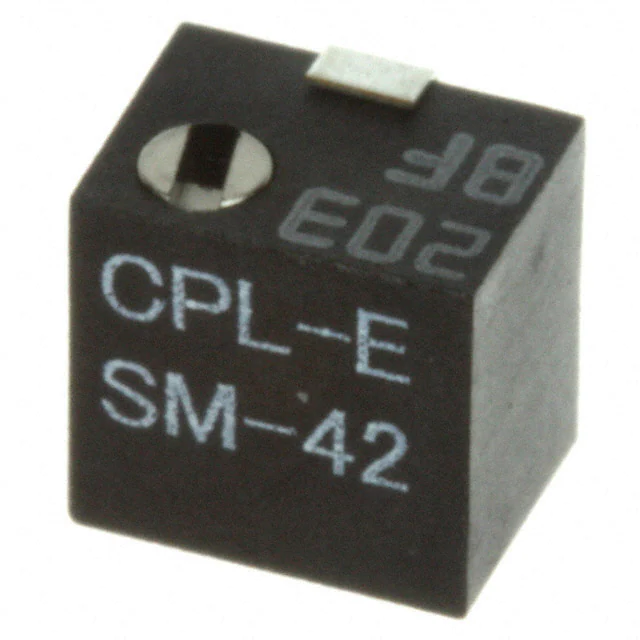

SM-42TA203TRIMMER 20KOHM 0.25W J LEAD SIDE |
2,433 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
|
|
SM-42TW203TRIMMER 20K OHM 0.25W J LEAD TOP |
2,017 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 20 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

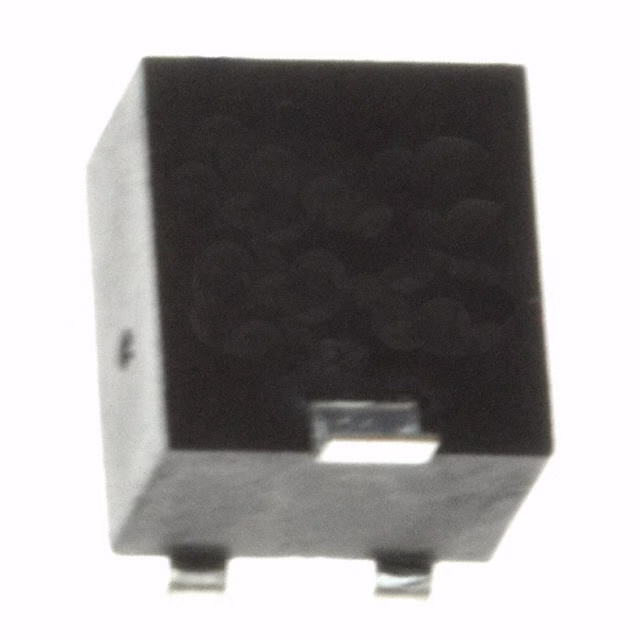

SM-42TX102TRIMMER 1K OHM 0.25W GW TOP ADJ |
1,885 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 1 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | Gull Wing | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|
|
SM-42TW501TRIMMER 500 OHM 0.25W J LEAD TOP |
1,515 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 500 Ohms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Top Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.138" Face (4.80mm x 3.50mm) |
|

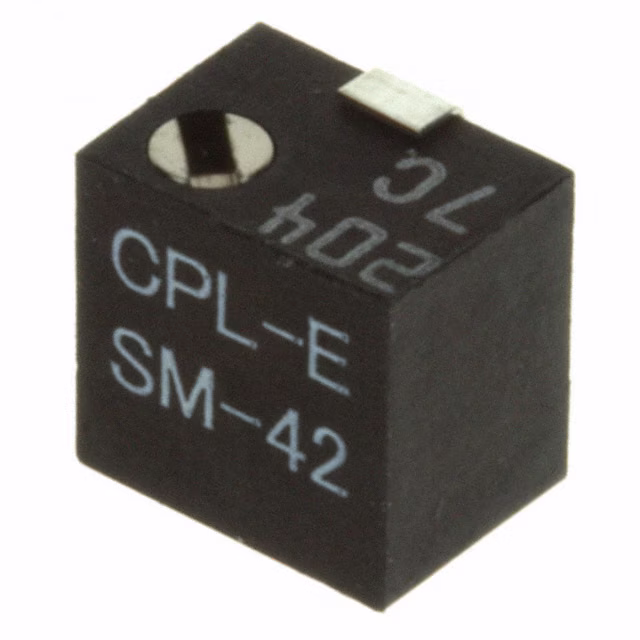

SM-42TA204TRIMMER 200K OHM 0.25W J LEAD |
1,498 |
|
Datasheet | SM42 | Tape & Reel (TR) | Active | 200 kOhms | 0.25W, 1/4W | ±10% | ±100ppm/°C | 11.0 | Side Adjustment | Cermet | Surface Mount | J Lead | Rectangular - 0.189" x 0.181" Face (4.80mm x 4.60mm) |
