Surge Protection Devices (SPDs)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Form | Number of Poles | Voltage - Continuous Operating (Max) (MCOV) | Current - Discharge (Nom) (8/20µS) | Current - Discharge (Max) (8/20µS) | Operating Temperature | Voltage - Protection Rating (VPR) | Voltage - Protection Level (VP) (2416) | Operating Temperature | Features | Mounting Type | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SPDN-B240-3DSPD TYPE 1 275V MCOV 1 POLE |
2,603 |
|
Datasheet | SPDN-B | Bulk | Active | Type 1 | Module Only | 1 | 275V | 20 kA | 130 kA | 200 kA | 1.2 kV | - | -35°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|

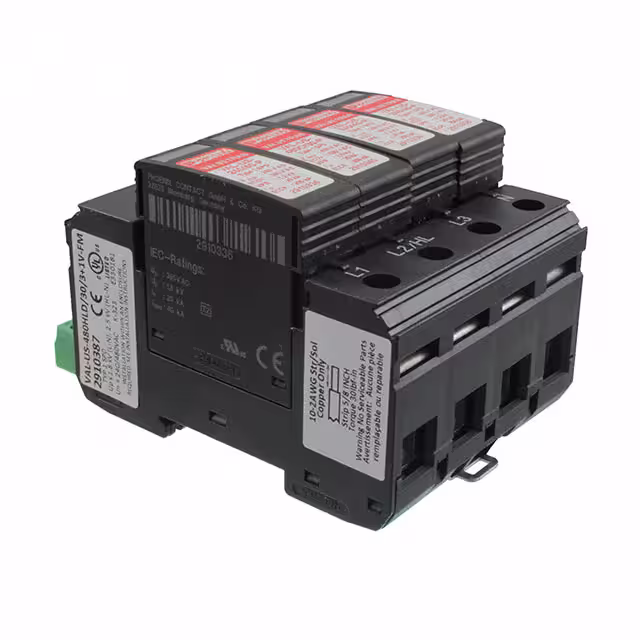

2910387SPD TYPE 1 750VAC MCOV 1 POLE |
1,846 |
|
Datasheet | VAL-US | Bulk | Active | Type 1 | Base + Module | 1 | 750VAC | 15 kA | 30 kA | 25 kA | 3.5 kV | 2.5 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
|
1260-4SMG-120SPD 150VAC MCOV 1 POLE |
3,275 |
|
Datasheet | 1260 | Box | Active | - | Base + Module | 1 | 150VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4SMG-400SPD 440VAC MCOV 1 POLE |
1,833 |
|
Datasheet | 1260 | Box | Active | - | Base + Module | 1 | 440VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4SMG-230SPD 275VAC MCOV 1 POLE |
2,341 |
|
Datasheet | 1260 | Box | Active | - | Base + Module | 1 | 275VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
SPDN-A120-2SSPD TYPE 2 180V MCOV 1 POLE |
3,453 |
|
Datasheet | SPDN-A | Bulk | Active | Type 2 | Module Only | 1 | 180V | 20 kA | 130 kA | 200 kA | 1.2 kV | - | -40°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|

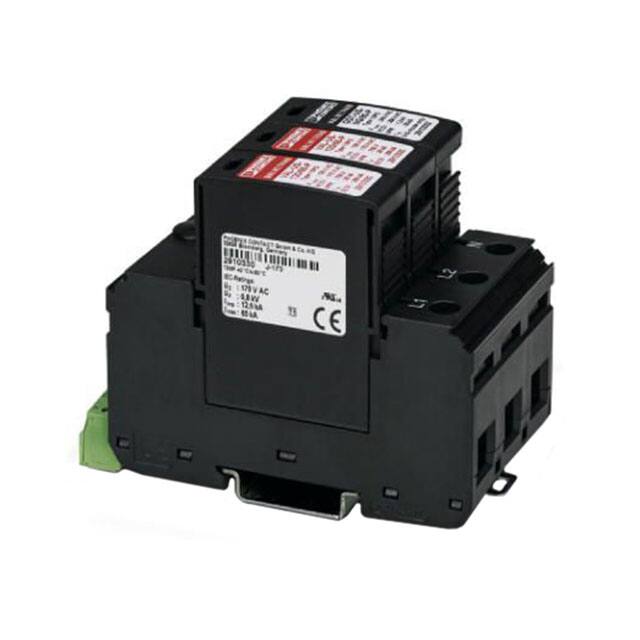

2910358SPD TYPE 1 264VAC MCOV 1 POLE |
2,920 |
|
Datasheet | VAL-US | Bulk | Active | Type 1 | Base + Module | 1 | 264VAC | 50 kA | - | 25 kA | 1.5 kV | 2 kV | -40°C ~ 80°C | - | DIN Rail | cUL, UL |
|
|
2591460000SPD TYPE 1/TYPE 2 300VAC MCOV |
4,064 |
|
Datasheet | - | Box | Active | Type 1, Type 2 | Base + Module | 4 | 300VAC | 50 kA | 100 kA | 150 kA | - | - | -40°C ~ 85°C | - | DIN Rail | CE, cURus, VDE |
|
|
2801160SPD TYPE 1/TYPE 2 1.17KVDC MCOV |
2,558 |
|
Datasheet | VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 1.17kVDC | 15 kA | 40 kA | 50 kA | 3 kV | 3.5 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, EAC, UR |
|
|
1260-4NSMG-230SPD 275VAC MCOV 1 POLE |
1,207 |
|
Datasheet | 1260 | Box | Active | - | Base + Module | 1 | 275VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
1260-4NSMG-120SPD 150VAC MCOV 1 POLE |
2,011 |
|
Datasheet | 1260 | Box | Active | - | Base + Module | 1 | 150VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
2800189SPD TYPE 1/TYPE 2 335VAC MCOV |
3,601 |
|
Datasheet | VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 335VAC | 12.5 kA | 50 kA | 25 kA | - | 1.2 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
|
2801161SPD TYPE 1/TYPE 2 1.17KVDC MCOV |
1,331 |
|
Datasheet | VAL-MS | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 1.17kVDC | 15 kA | 40 kA | 50 kA | 3 kV | 3.5 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
5603514SPD 150VAC MCOV 1 POLE |
4,652 |
|
Datasheet | - | Bulk | Active | - | Module Only | 1 | 150VAC | - | 10 kA | - | - | - | -40°C ~ 85°C | - | - | - |
|
|
1260-4SMG-480SPD 600VAC MCOV 1 POLE |
1,433 |
|
Datasheet | 1260 | Box | Active | - | Base + Module | 1 | 600VAC | 25 kA | 100 kA | 50 kA | - | - | -40°C ~ 85°C | Remote Signaling Contacts, Visual Life Indicator | DIN Rail | - |
|
|
2905415SPD TYPE 1/TYPE 2 350VAC MCOV |
3,770 |
|
Datasheet | FLT | Bulk | Active | Type 1, Type 2 | Base + Module | 1 | 350VAC | 25 kA | 50 kA | 50 kA | 1.5 kV | 2.5 kV | -40°C ~ 80°C | - | DIN Rail | CB, cUR, cURus, EAC, UR |
|
|
SPDN-A120-3YSPD TYPE 2 150V MCOV 1 POLE |
2,850 |
|
Datasheet | SPDN-A | Bulk | Active | Type 2 | Module Only | 1 | 150V | 20 kA | 130 kA | 200 kA | 1.2 kV | - | -40°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
SPDN-A240-3DSPD TYPE 2 275V MCOV 1 POLE |
4,460 |
|
Datasheet | SPDN-A | Bulk | Active | Type 2 | Module Only | 1 | 275V | 20 kA | 130 kA | 200 kA | 1.2 kV | - | -40°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
SPDN-A480-3DSPD TYPE 2 550V MCOV 1 POLE |
2,938 |
|
Datasheet | SPDN-A | Bulk | Active | Type 2 | Module Only | 1 | 550V | 20 kA | 130 kA | 200 kA | 1.8 kV | - | -40°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
|
|
SPDN-A277-3YSPD TYPE 2 350V MCOV 1 POLE |
4,312 |
|
Datasheet | SPDN-A | Bulk | Active | Type 2 | Module Only | 1 | 350V | 20 kA | 130 kA | 200 kA | 2.5 kV | - | -40°C ~ 85°C | Thermally Protected, Visual Life Indicator | Panel Mount | cULus |
