Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1004P3T1B1M7QEHSWITCH TOGGLE 4PDT 5A 120V |
3,160 |
|
Datasheet | 100 | Bulk | Active | Panel Mount, Right Angle, Vertical | 4PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P4T7B13M1QESWITCH TOGGLE 3PDT 5A 120V |
3,147 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | 3PDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1003P5T8B13M1QESWITCH TOGGLE 3PDT 5A 120V |
1,399 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | 3PDT | On-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 18.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

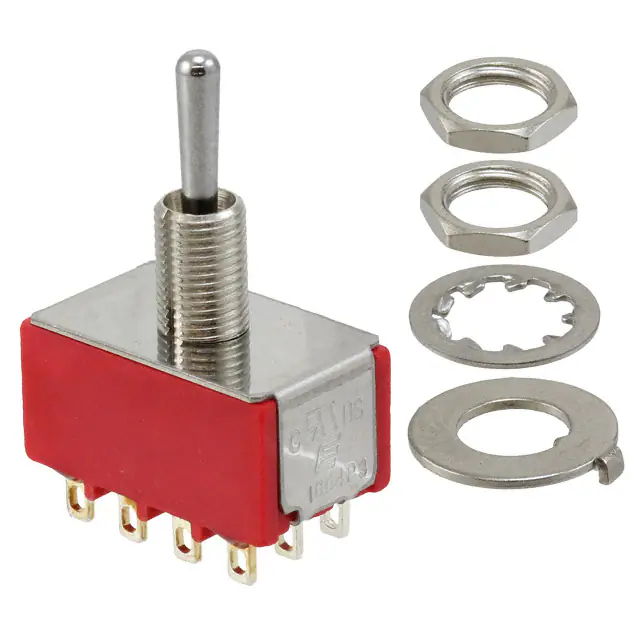

1004P4T1B1M1QEHSWITCH TOGGLE 4PDT 5A 120V |
3,540 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | 4PDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1004P7T1B1M1QEHSWITCH TOGGLE DP3T 5A 120V |
1,307 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | DP3T | On-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
ST32SE00Switches |
2,610 |
|
Datasheet | ST3 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 24A (AC) | 125 V | - | Standard Round | 21.34mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
|
1004P3T6B15M1QEHSWITCH TOGGLE 4PDT 5A 120V |
2,731 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
1004P1T8B13M2REHSWITCH TOGGLE 4PDT 0.4VA 20V |
3,254 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | 4PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 18.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST26JD00SWITCH TOGGLE DPDT 20A 125V |
1,531 |
|
Datasheet | ST2 | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 17.80mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
|
1004P1T1B1M2QESWITCH TOGGLE 4PDT 5A 120V |
2,059 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
