Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

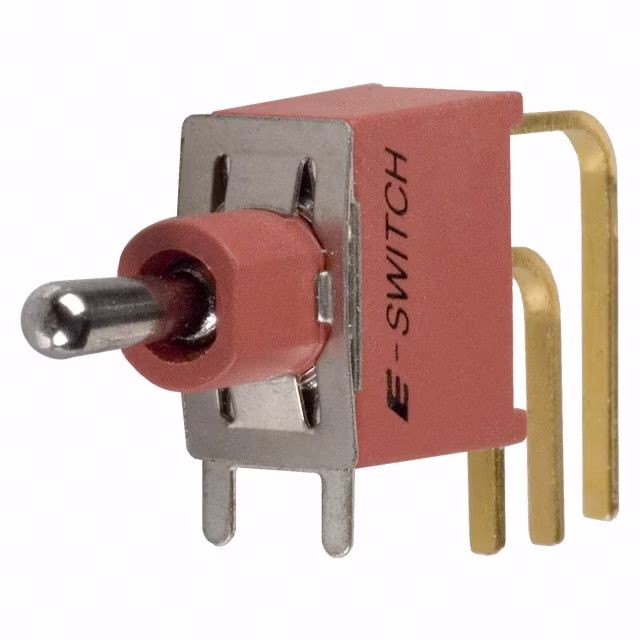

100AWSP5T2B4M7RESWITCH TOGGLE SPDT 0.4VA 20V |
3,565 |
|
Datasheet | 100A | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100AWDP3T2B4M7RESWITCH TOGGLE DPDT 0.4VA 20V |
2,641 |
|
Datasheet | 100A | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1K1B25M2RESWITCH TOGGLE SPDT 0.4VA 20V |
1,510 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Locking Lever | 14.40mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T3B2VS3QESWITCH TOGGLE DP3T 5A 120V |
2,625 |
|
Datasheet | 100 | Bulk | Active | Through Hole | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.97mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
1003P1K2B25M1QEHSWITCH TOGGLE 3PDT 5A 120V |
3,597 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 14.73mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
ST2W062D00SWITCH TOGGLE 20A 125V |
1,554 |
|
Datasheet | ST2 | Bulk | Active | Panel Mount | - | - | 20A (AC) | 125 V | - | Standard Round | - | Non-Illuminated | - | - | Wire Leads | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
|
100SP1K1B26M6QESWITCH TOGGLE SPDT 5A 120V |
4,041 |
|
Datasheet | 100 | Tray | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 14.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T2B4M7RESWITCH TOGGLE DPDT 0.4VA 20V |
1,383 |
|
Datasheet | 200 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
200MDP3T4B7M6QESWITCH TOGGLE DPDT 3A 120V |
2,792 |
|
Datasheet | 200 | Tray | Active | Panel Mount, Right Angle | DPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 11.68mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP6T7B13M3RESWITCH TOGGLE DP3T 0.4VA 20V |
4,582 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | SP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.98mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 11.91mm Dia | 15/32-32 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
