Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

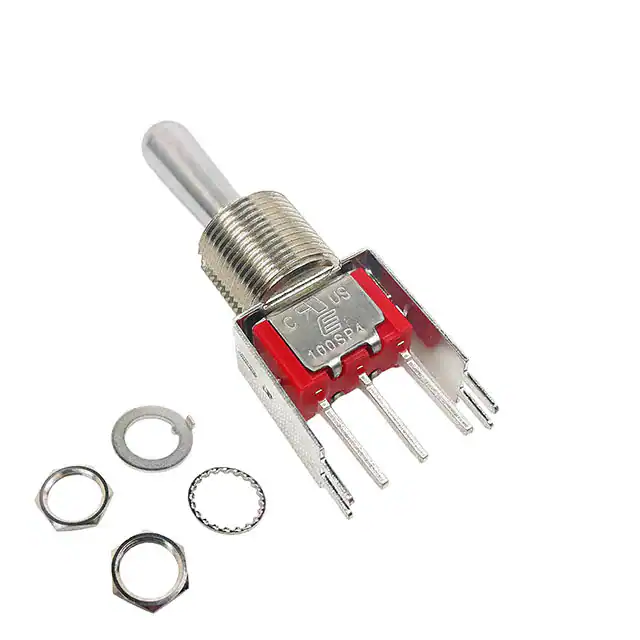

100SP4T8B13VS3QEHSWITCH TOGGLE SPDT 5A 120V |
1,682 |
|
Datasheet | 100 | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 18.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP6T1B1M6QEHSWITCH TOGGLE SP3T 5A 120V |
433 |
|
Datasheet | 100 | Bulk | Active | Panel Mount, Right Angle | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
100DP6K2B25M1QESWITCH TOGGLE SP3T 5A 120V |
398 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | SP3T | On-On-On | 5A (AC/DC) | 120 V | 28 V | Locking Lever | 14.73mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
ST143D00SWITCH TOGGLE SPDT 20A 125V |
368 |
|
Datasheet | ST1 | Bulk | Active | Panel Mount | SPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 19.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
1003P1T2B1M1QESWITCH TOGGLE 3PDT 5A 120V |
269 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
1003P1T1B1M1QEHSWITCH TOGGLE 3PDT 5A 120V |
528 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

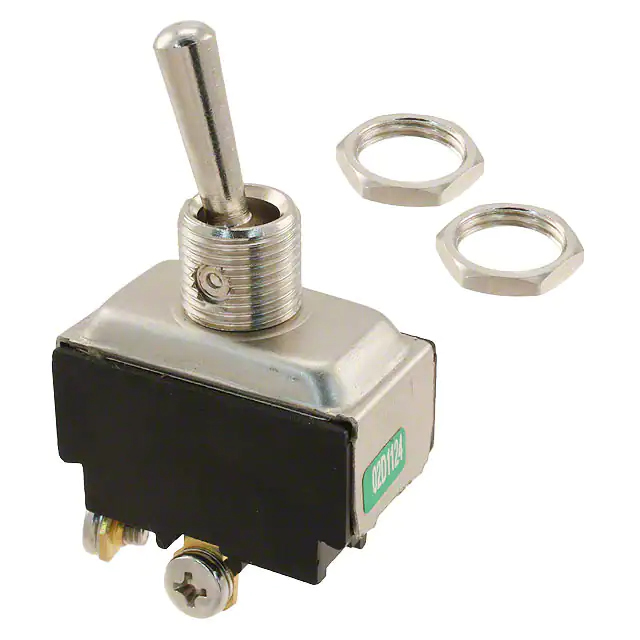

ST262D00SWITCH TOGGLE DPST 20A 125V |
937 |
|
Datasheet | ST2 | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
.jpg)
|
ST24KD00SWITCH TOGGLE DPDT 20A 125V |
7,903 |
|
Datasheet | ST2 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 20A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
ST26GD00SWITCH TOGGLE DPDT 20A 125V |
1,611 |
|
Datasheet | ST2 | Bulk | Active | Panel Mount | DPDT | On-On | 20A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.00mm Dia | M12 x 1 | - | - | 0°C ~ 85°C |
|
|
1004P1T1B9M7QEHSWITCH TOGGLE 4PDT 5A 120V |
361 |
|
Datasheet | 100 | Tray | Active | Panel Mount, Right Angle, Vertical | 4PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
