Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
100DP1T6B11M53REHSWITCH TOGGLE DPDT 0.4VA 20V |
3,621 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T6B11M51QESWITCH TOGGLE DPDT 5A 120V |
4,646 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T3B3M7RESWITCH TOGGLE DPDT 0.4VA 20V |
3,366 |
|
Datasheet | 100 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.97mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

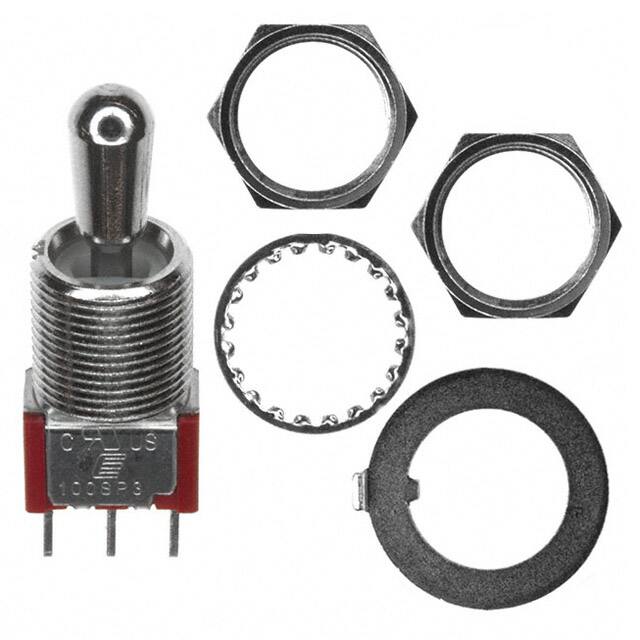

100SP3T7B13M2QEHSWITCH TOGGLE SPDT 5A 120V |
1,891 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.00mm | Non-Illuminated | - | - | PC Pin | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100DP2T7B13M3REHSWITCH TOGGLE DPDT 0.4VA 20V |
2,360 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 13.00mm | Non-Illuminated | - | - | Quick Connect - 0.062" (1.5mm) | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP3T1B1M6REHSWITCH TOGGLE DPDT 0.4VA 20V |
1,125 |
|
Datasheet | 100 | Bulk | Active | Panel Mount, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T6B11M6QEHSWITCH TOGGLE DPDT 5A 120V |
1,548 |
|
Datasheet | 100 | Bulk | Active | Panel Mount, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 12.30mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MSP3T2B2M6RESWITCH TOGGLE SPDT 0.4VA 20V |
3,364 |
|
Datasheet | 200 | Bulk | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100AWSP3T2B1M2RESWITCH TOGGLE SPDT 0.4VA 20V |
3,177 |
|
Datasheet | 100A | Bulk | Active | Panel Mount | SPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
100DP1T1B2M6QESWITCH TOGGLE DPDT 5A 120V |
1,428 |
|
Datasheet | 100 | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
