Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

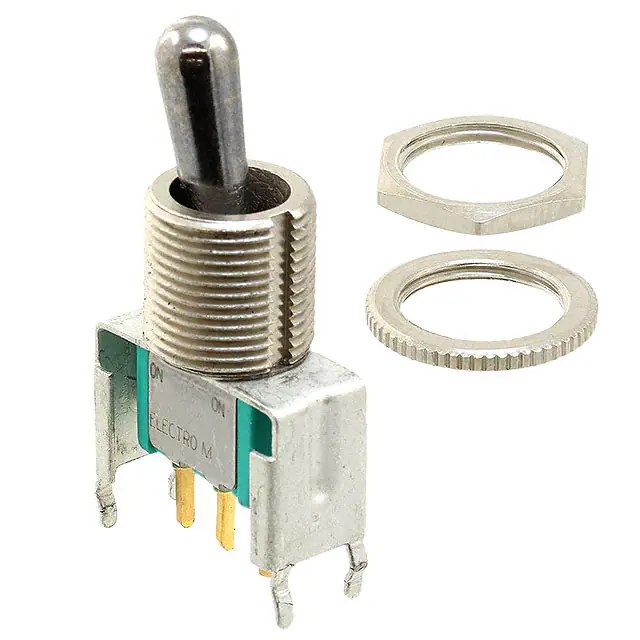

A123T11TXV61BSWITCH TOGGLE SPDT 0.5VA 28V |
1,235 |
|
Datasheet | A | Bulk | Active | Panel Mount | SPDT | On-On | 0.5VA (AC/DC) | 28 V | 28 V | Standard Round | 11.89mm | Non-Illuminated | - | - | PC Pin | - | 15/32-32 | Splash Proof | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
A221P31DAV2BSWITCH TOGGLE DPDT 0.5VA 28V |
4,383 |
|
Datasheet | A | Bulk | Active | Panel Mount, Right Angle, Vertical | DPDT | On-Off-On | 0.5VA (AC/DC) | 28 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A221P31YCQSWITCH TOGGLE DPDT 6A 125V |
1,211 |
|
Datasheet | A | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223P41D9CQSWITCH TOGGLE DPDT 6A 125V |
3,905 |
|
Datasheet | A | Bulk | Active | Through Hole | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 6.35mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223P42DZQSWITCH TOGGLE DPDT 6A 125V |
2,894 |
|
Datasheet | A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Flatted | 6.35mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 90°C |
|
|
A226P31YZQSWITCH TOGGLE DPDT 6A 125V |
1,756 |
|
Datasheet | A | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 11.38mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A227P11YZQSWITCH TOGGLE DPDT 6A 125V |
3,098 |
|
Datasheet | A | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC/DC) | 125 V | 28 V | Flatted | 21.34mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A234S1YZQSWITCH TOGGLE DPDT 6A 125V |
1,222 |
|
Datasheet | A | Bulk | Active | Panel Mount | DPDT | On-Mom | 6A (AC/DC) | 125 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A123S1YAV2QPSWITCH TOGGLE SPDT 6A 125V |
3,816 |
|
Datasheet | A | Bulk | Active | Panel Mount, Right Angle, Vertical | SPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Anti-Rotation | 10.41mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 90°C |
|
|
A223M3YZQSWITCH TOGGLE DPDT 6A 28V |
3,638 |
|
- |
A | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC/DC) | 125 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | - | - |
