Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
033TBSSCSCSSWITCH TOGGLE SPDT 3A 120V |
196 |
|
Datasheet | 033TB | Bag | Active | Through Hole | SPDT | On-Off-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|

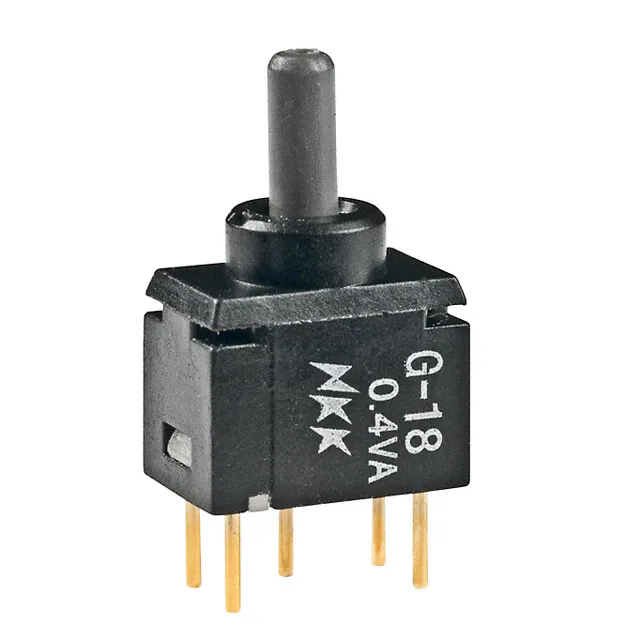

G18APSWITCH TOGGLE SPDT 0.4VA 28V |
109 |
|
Datasheet | G | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
G15AHSWITCH TOGGLE SPDT 0.4VA 28V |
558 |
|
Datasheet | G | Tray | Active | Through Hole, Right Angle | SPDT | On-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Process Sealed | -25°C ~ 85°C |
|
|
ATE 1 E-RASWITCH TOGGLE 1-POLE ON OFF ON |
500 |
|
Datasheet | ATE | Box | Active | Through Hole, Right Angle | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -20°C ~ 85°C |
|
|
ATE 1 GSWITCH TOGGLE 1-POLE MOM OFF MOM |
499 |
|
Datasheet | ATE | Box | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -20°C ~ 85°C |
|
|
ATE 1 HSWITCH TOGGLE 1-POLE MOM OFF ON |
478 |
|
Datasheet | ATE | Box | Active | Through Hole | SPDT | Mom-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -20°C ~ 85°C |
|
|
MTA 106 DSWITCH TOGGLE 1-POLE ON - ON |
377 |
|
Datasheet | MTA | Box | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.20mm Dia | M6 x 0.75 | - | - | -45°C ~ 140°C |
|

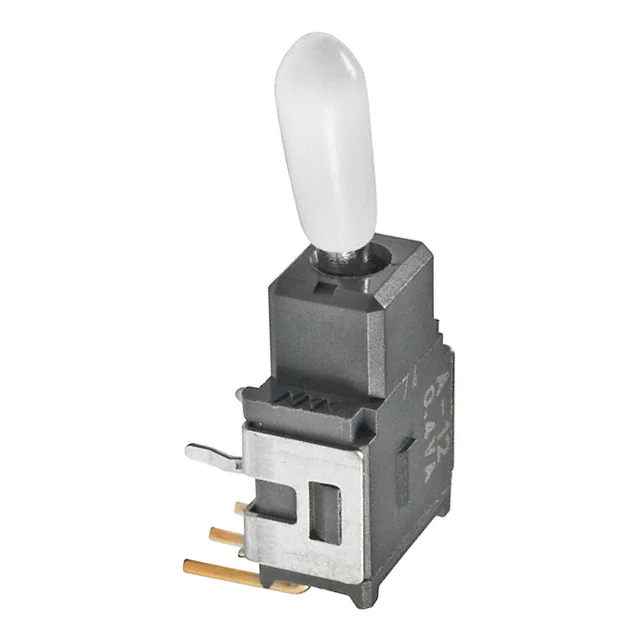

A12AH-GBSWITCH TOGGLE SPDT 0.4VA 28V |
2,603 |
|
Datasheet | A | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round with Cap | 10.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded, Square | - | White Cap | -30°C ~ 85°C |
|
|
MN12SA1W03SWITCH TOGGLE |
303 |
|
Datasheet | M | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 12.27mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
033TBHSATBSWITCH TOGGLE SP 120VAC 3A |
300 |
|
Datasheet | 033TB | Bag | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
ATE 2 HSWITCH TOGGLE 2-POLE MOM OFF ON |
500 |
|
Datasheet | ATE | Box | Active | Through Hole | DPDT | Mom-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -20°C ~ 85°C |
|
|
033TESDATA2B1SWITCH TOGGLE DP 120VAC 3A |
300 |
|
Datasheet | 033TE | Bag | Active | Through Hole | DPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
|
ATE 1 H-RASWITCH TOGGLE 1-POLE MOM OFF ON |
500 |
|
Datasheet | ATE | Box | Active | Through Hole, Right Angle | SPDT | Mom-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -20°C ~ 85°C |
|
|
ATE 1 G-RASWITCH TOGGLE 1-POLE MOM OFF MOM |
497 |
|
Datasheet | ATE | Box | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.00mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -20°C ~ 85°C |
|
B12KH-BASWITCH TOGGLE SPDT 0.4VA 28V |
177 |
|
Datasheet | B | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 14.20mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
|
033TBVSASBSWITCH TOGGLE SPDT 0.4VA 20V |
200 |
|
Datasheet | 033TB | Bag | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.16mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|

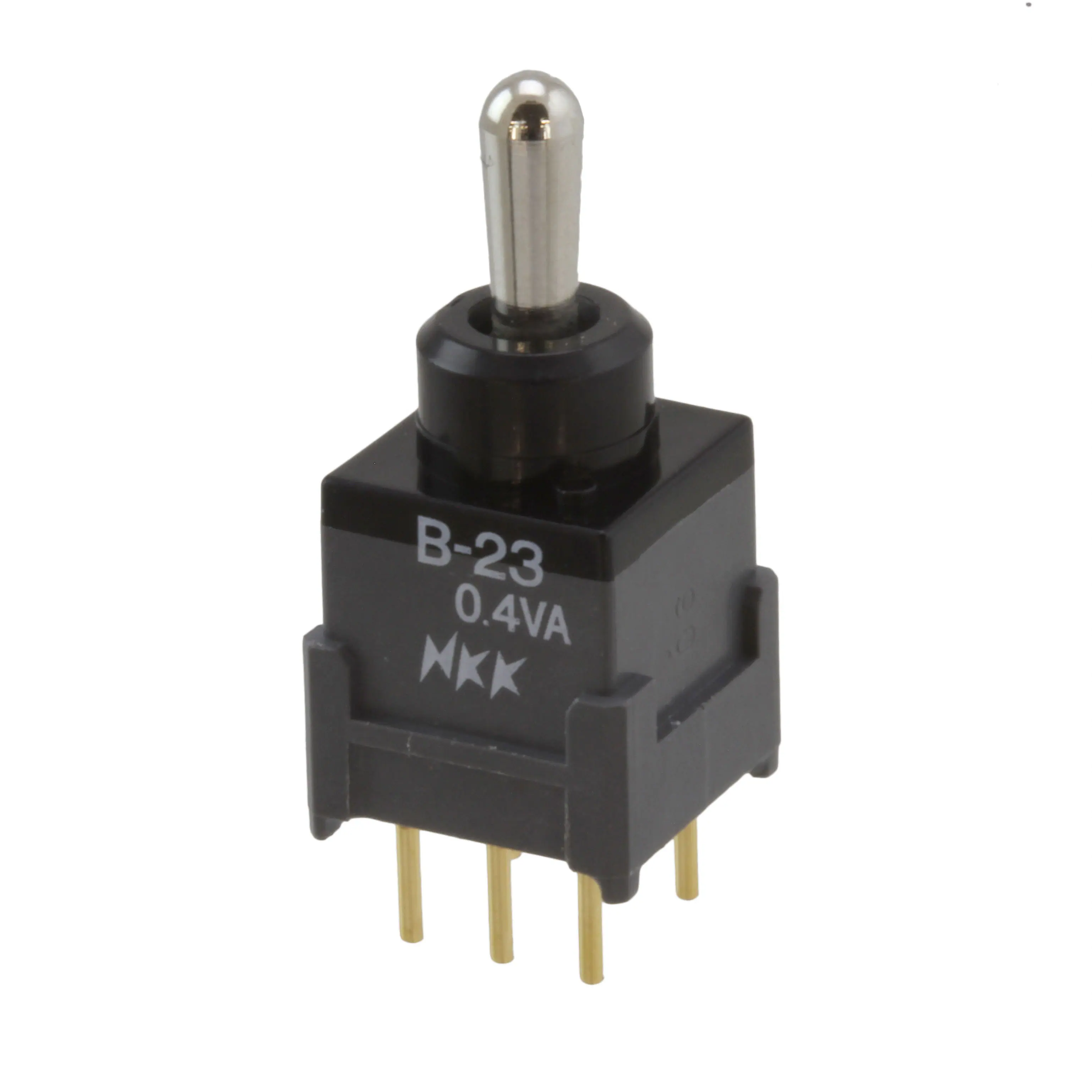

B23JPSWITCH TOGGLE DPDT 0.4VA 28V |
196 |
|
Datasheet | B | Tray | Active | Through Hole | DPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 6.30mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

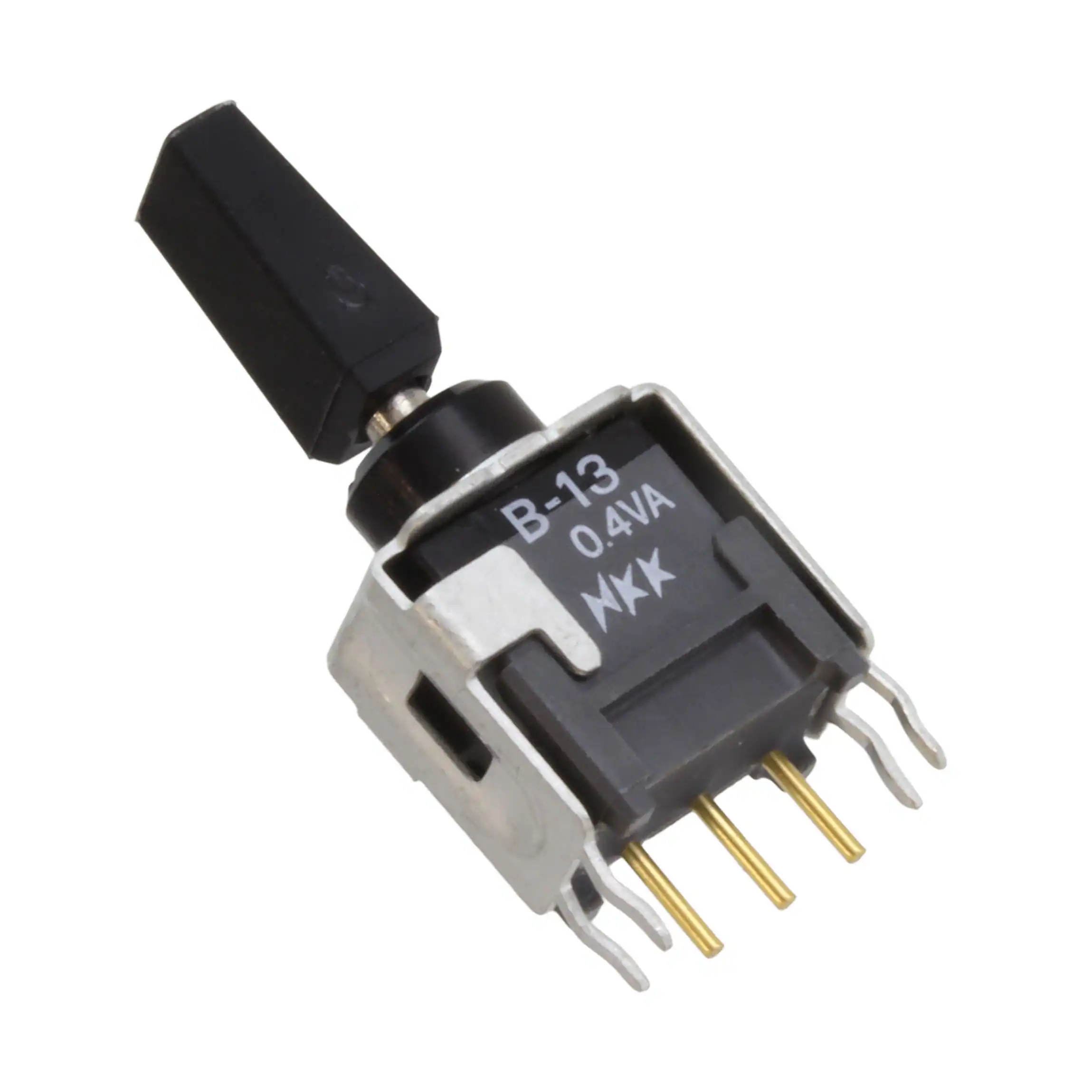

B13KB-AASWITCH TOGGLE SPDT 0.4VA 28V |
1,838 |
|
Datasheet | B | Bulk | Active | Through Hole | SPDT | On-Off-On | 0.4VA (AC/DC) | 28 V | 28 V | Snap On Paddle | 9.40mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|
3-1825138-1SWITCH TOGGLE DPDT 5A 120V |
316 |
|
Datasheet | Gemini A | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.00mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
033TBSDATCS2SWITCH TOGGLE DPDT 3A 120V |
196 |
|
Datasheet | 033TB | Bag | Active | Through Hole | DPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
