Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7301TZQESSWITCH TOGGLE 3PDT 5A 120V |
3,858 |
|
Datasheet | 7000 | Bulk | Obsolete | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Satin Chrome Actuator | -30°C ~ 85°C |
|
E203MD1ABESWITCH TOGGLE DPDT 0.4VA 20V |
2,889 |
|
Datasheet | E | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7301TPZGESWITCH TOGGLE 3PDT 5A 120V |
3,351 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Anti-Rotation | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7208TCWZQESWITCH TOGGLE DPDT 5A 120V |
4,352 |
|
Datasheet | 7000 | Tray | Active | Panel Mount | DPDT | On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7203SY9ABESWITCH TOGGLE DPDT 0.4VA 20V |
3,677 |
|
Datasheet | 7000 | Bulk | Active | Through Hole, Right Angle | DPDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
PT101SZQSWITCH TOGGLE SPDT 15A 277V |
2,036 |
|
Datasheet | PT | Tray | Active | Panel Mount | SPDT | On-On | 15A (AC/DC) | 277 V | 28 V | Standard Round | 17.20mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | Sealed | -40°C ~ 85°C |
|
|
E201SD1AV2GESWITCH TOGGLE DPDT 7.5A 125V |
1,076 |
|
Datasheet | E | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 7.5A (AC/DC) | 125 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|

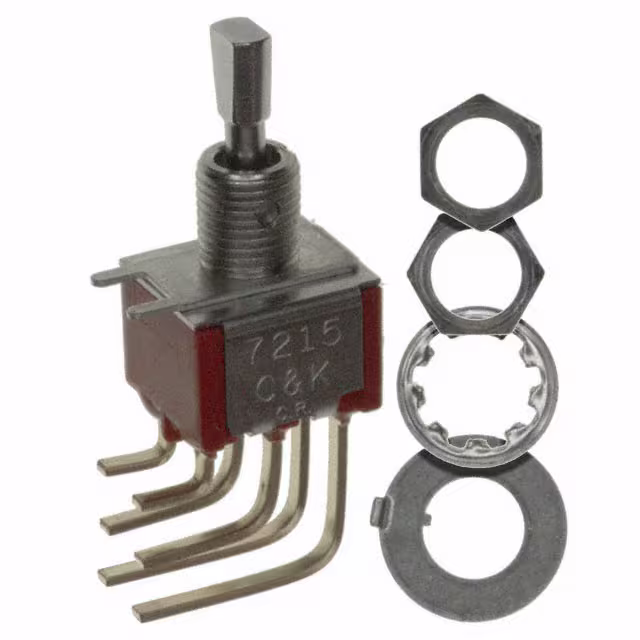

7215P4DAV2BESWITCH TOGGLE SP3T 0.4VA 20V |
3,098 |
|
Datasheet | 7000 | Tray | Active | Panel Mount, Right Angle, Vertical | SP3T | Mom-On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 8.13mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7208TPZBESWITCH TOGGLE DPDT 0.4VA 20V |
2,388 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount | DPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 17.45mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7411T1CWZBE2SWITCH TOGGLE DP3T 0.4VA 20V |
4,465 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount | DP3T | On-On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 12.37mm | Non-Illuminated | - | - | Solder Lug | Circular - 11.91mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Jumper needed to achieve triple throw | -30°C ~ 85°C |
