Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7101P3Y1ZBESWITCH TOGGLE SPDT 0.4VA 20V |
374 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
7101P3D9V3BE2SWITCH TOGGLE SPDT 0.4VA 20V |
514 |
|
Datasheet | 7000 | Bulk | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
|

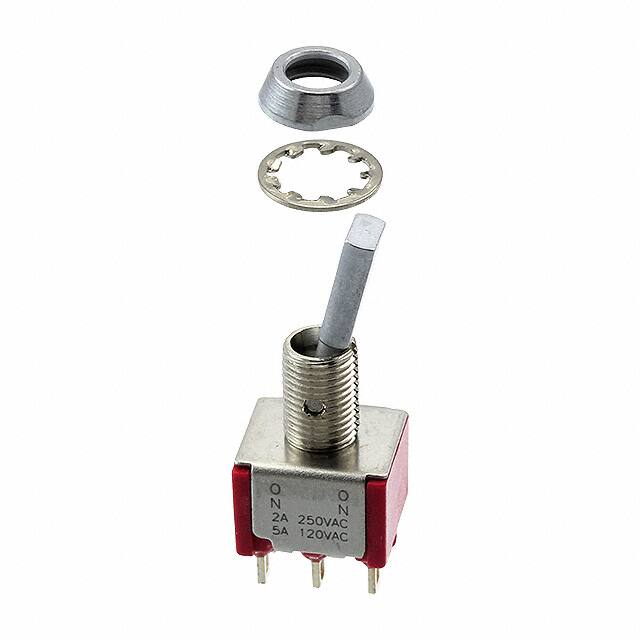

7201P3YZQESSWITCH TOGGLE DPDT 5A 120V |
1,377 |
|
Datasheet | 7000 | Bulk | Obsolete | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 85°C |
|
7201SYV3QESWITCH TOGGLE DPDT 5A 120V |
184 |
|
Datasheet | 7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E205MD1ABESWITCH TOGGLE DPDT 0.4VA 20V |
4,897 |
|
Datasheet | E | Bulk | Active | Through Hole, Right Angle | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7101SYZQESSWITCH TOGGLE SPDT 5A 120V |
2,352 |
|
Datasheet | 7000 | Bulk | Obsolete | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 85°C |
|
7205SPYAV2BESSWITCH TOGGLE DPDT 0.4VA 20V |
3,150 |
|
Datasheet | 7000 | Bulk | Obsolete | Panel Mount, Right Angle, Vertical | DPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Anti-Rotation | 10.67mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 85°C |
|
7105SYZBESSWITCH TOGGLE SPDT 0.4VA 20V |
4,140 |
|
Datasheet | 7000 | Bulk | Obsolete | Panel Mount | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Satin Chrome Actuator | -30°C ~ 85°C |
|
U215L2HZQESSWITCH TOGGLE SP3T 5A 120V |
1,198 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount | SP3T | Mom-On-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 13.97mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -30°C ~ 85°C |
|
|
7101P3D9AV2QE22SWITCH TOGGLE SPDT 5A 120V |
1,504 |
|
Datasheet | 7000 | Bulk | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 13.21mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Black Actuator | -30°C ~ 85°C |
