Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

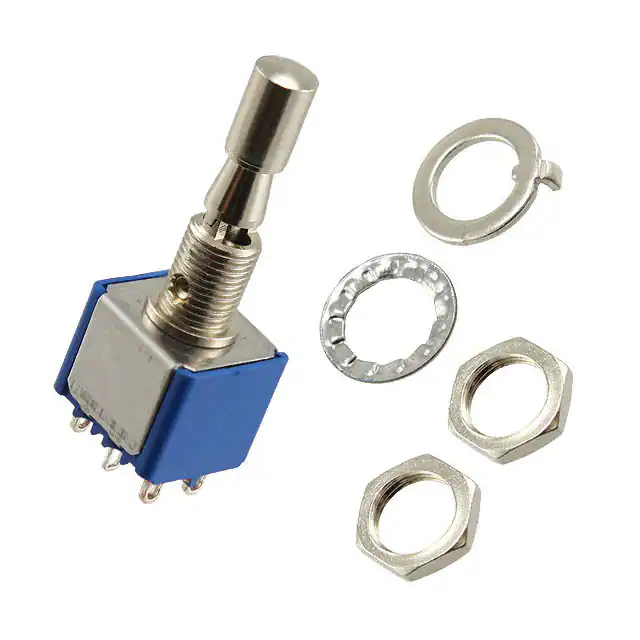

5649AB3VSWITCH TOGGLE DPDT 6A 125V |
1,563 |
|
Datasheet | 5000 | Tray | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 15.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
637H/2KSWITCH TOGGLE SPDT 10A 250V |
1,326 |
|
Datasheet | 600H | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Front Panel Sealing | -20°C ~ 55°C |
|
5644THAB3VSWITCH TOGGLE SP3T 6A 125V |
4,891 |
|
Datasheet | 5000 | Tray | Active | Panel Mount | SP3T | On-On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 15.10mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Jumper needed to achieve triple throw | -40°C ~ 85°C |
|
648H/2SWITCH TOGGLE DPDT 10A 250V |
3,649 |
|
Datasheet | 600H | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 10A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|

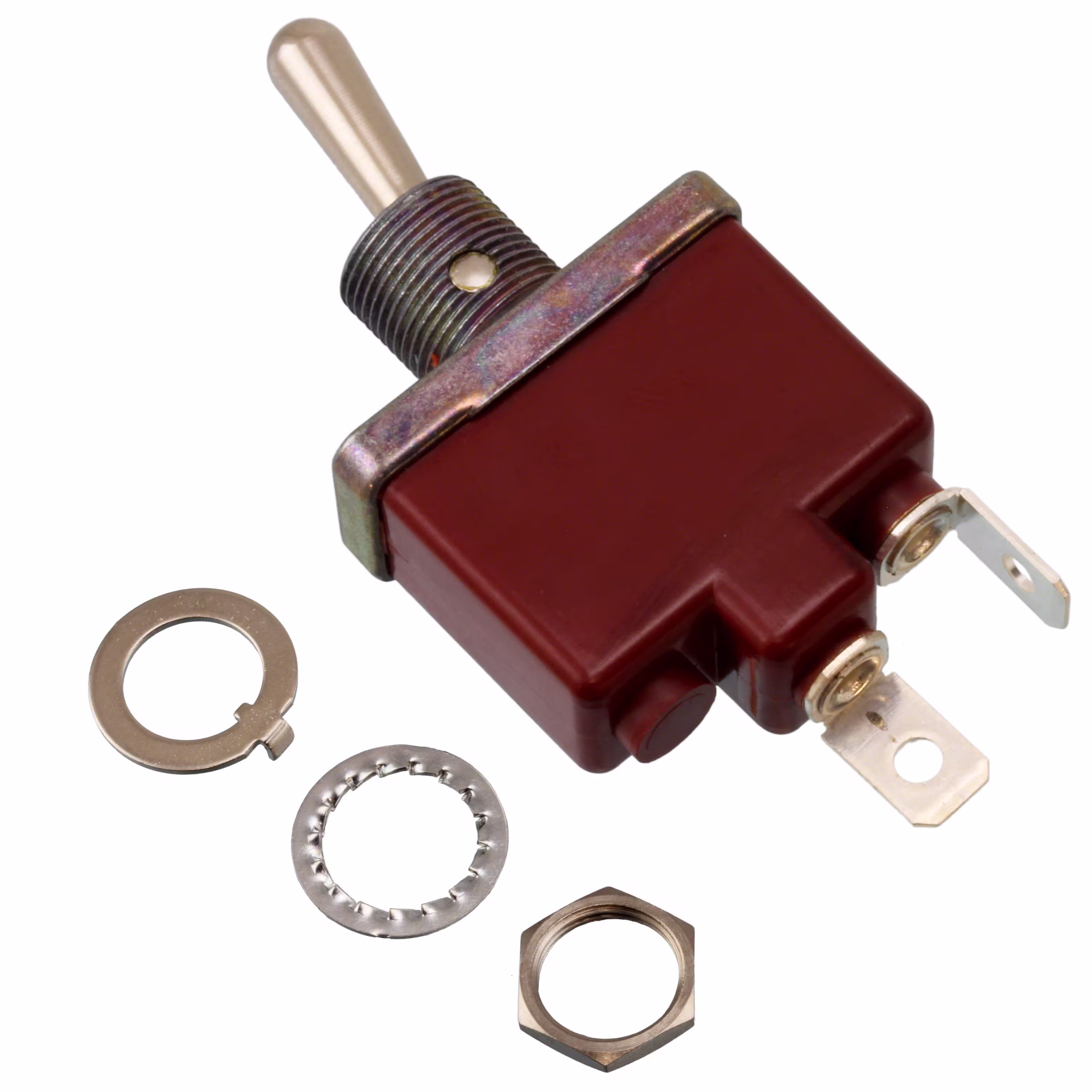

CT31021N000SWITCH TOGGLE SPST 10A 125V |
4,848 |
|
Datasheet | CT | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|
|
641H/2KSWITCH TOGGLE DPST 15A 250V |
4,758 |
|
Datasheet | 600H | Tray | Active | Panel Mount | DPST | On-Off | 15A (AC) | 250 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Front Panel Sealing | -20°C ~ 55°C |
|
3631NF/2SWITCH TOGGLE SPST 6A 125V |
3,423 |
|
Datasheet | 3600NF | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
|

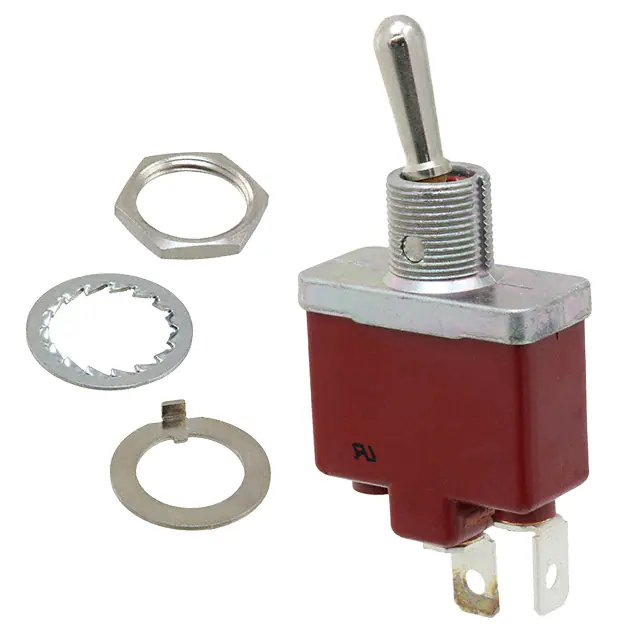

CT31021N020SWITCH TOGGLE SPST 10A 125V |
1,037 |
|
Datasheet | CT | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|

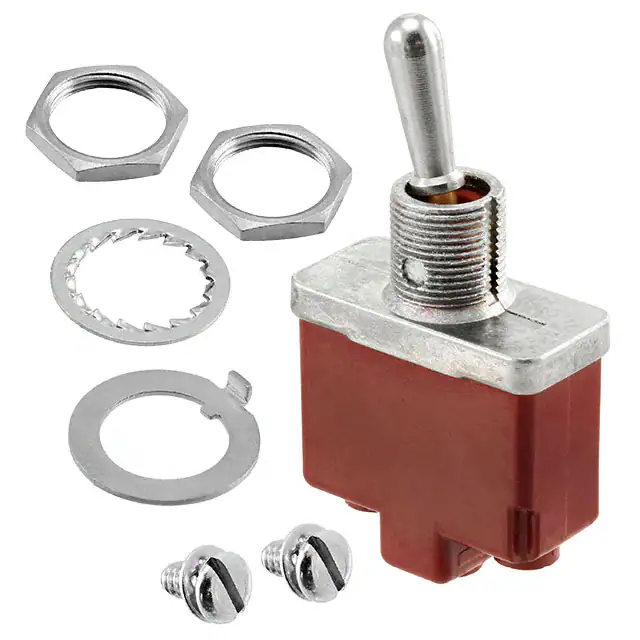

CT31001N020SWITCH TOGGLE SPST 10A 125V |
2,323 |
|
Datasheet | CT | Bulk | Active | Panel Mount | SPST | On-Off | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
|

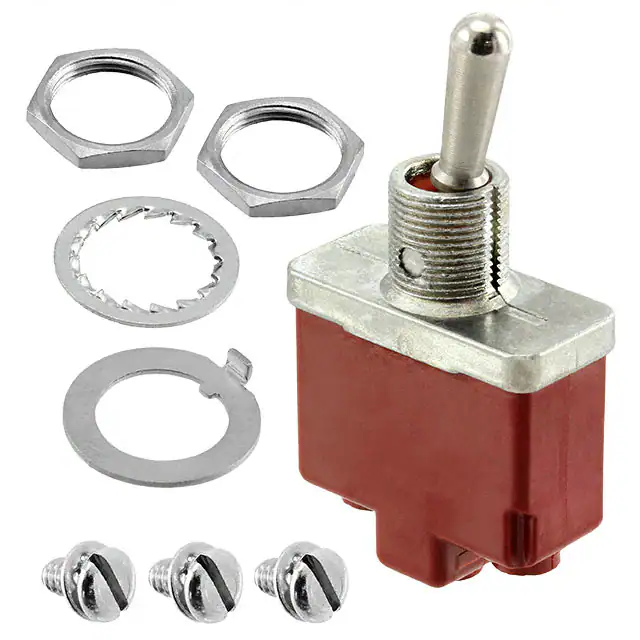

CT36001N020SWITCH TOGGLE SPDT 10A 125V |
1,606 |
|
Datasheet | CT | Bulk | Active | Panel Mount | SPDT | On-On | 10A (AC), 15A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.20mm Dia | 15/32-32 | IP67 - Dust Tight, Waterproof | Sealed - Fully | -40°C ~ 85°C |
