Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

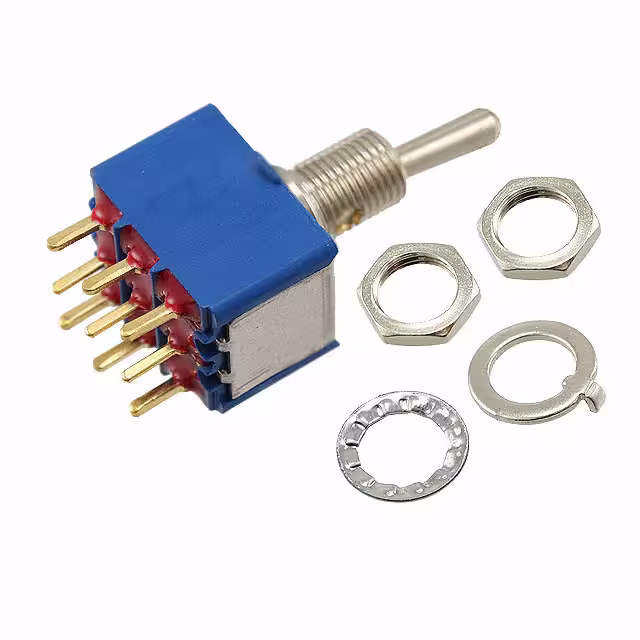

5256CDBSWITCH TOGGLE 3PDT 0.4VA 20V |
1,518 |
|
Datasheet | 5000 | Tray | Active | Panel Mount | 3PDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
SW246A7SWITCH TOGGLE DPDT 5A 125V |
4,020 |
|
Datasheet | S | Bulk | Active | Through Hole, Right Angle | DPDT | On-On | 5A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 7.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Sealed | -20°C ~ 85°C |
|
|
5259CDBSWITCH TOGGLE 3PDT 0.4VA 20V |
3,756 |
|
Datasheet | 5000 | Bulk | Active | Panel Mount | 3PDT | On-Off-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5636AGB9TOGGLE SWITCH 5000 MINIATURE |
2,375 |
|
Datasheet | 5000 | Bulk | Active | Panel Mount | SPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5632CDBX408TOGGLE SWITCH 5000 MINIATURE |
4,777 |
|
Datasheet | 5000 | Bulk | Active | Panel Mount | SPDT | On-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -40°C ~ 85°C |
|
|
5246WATOGGLE SWITCH 5000 MINIATURE |
4,351 |
|
Datasheet | 5000 | Bulk | Active | Through Hole, Right Angle, Vertical | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 13.50mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | - | -40°C ~ 85°C |
|
|
644NH/22RTOGGLE SWITCH 600H HIGH POWER |
2,072 |
|
Datasheet | 600NH | Bulk | Active | Panel Mount | DP3T | Mom-On-Mom | 15A (AC) | 125 V | - | Flatted | 13.50mm | Non-Illuminated | - | - | Solder, Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | - | -20°C ~ 55°C |
|
|
5256ABSWITCH TOGGLE 3PDT 6A 125V |
2,083 |
|
Datasheet | 5000 | Bulk | Active | Panel Mount | 3PDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | PC Pin | Circular - 6.50mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
|
5647AKBSWITCH TOGGLE DPDT 6A 125V |
1,246 |
|
Datasheet | 5000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 10.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | Front Panel Sealing | -40°C ~ 85°C |
|
3639NF/2SWITCH TOGGLE SPDT 6A 125V |
2,553 |
|
Datasheet | 3600NF | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 12A (DC) | 125 V | 28 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.20mm Dia | M12 x 0.75 | - | Sealed | -40°C ~ 85°C |
