Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
9203CSWITCH TOGGLE DPST 20A 125V |
3,123 |
|
Datasheet | 9200 | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 14.27mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | - | 15/32-32 | - | - | -10°C ~ 65°C |
|
EHTSLBSWITCH TOGGLE DPDT |
1,745 |
|
Datasheet | EH | Bulk | Active | Panel Mount | DPDT | On-On | - | - | - | Standard Round | - | Non-Illuminated | - | - | Solder Lug | - | - | - | - | - |
|
|
MN11LL1W01-CSWITCH TOGGLE |
2,802 |
|
Datasheet | M | Bulk | Active | Panel Mount | SPST | On-Off | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
|
MN22LL1W01SWITCH TOGGLE |
2,010 |
|
Datasheet | M | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
E101MD1AV2BESWITCH TOGGLE SPDT 0.4VA 20V |
3,681 |
|
Datasheet | E | Tray | Active | Through Hole, Right Angle, Vertical | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ET05MD1ABESWITCH TOGGLE SPDT 0.4VA 20V |
3,375 |
|
Datasheet | ET | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 6.10mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7105SD9AGESWITCH TOGGLE SPDT 5A 120V |
4,832 |
|
Datasheet | 7000 | Bulk | Active | Through Hole, Right Angle | SPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.45mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
E105MD1V3BESWITCH TOGGLE SPDT 0.4VA 20V |
1,035 |
|
Datasheet | E | Tray | Active | Through Hole | SPDT | Mom-Off-Mom | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 7.62mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP57 - Dust Protected, Waterproof | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN22B2B3W01SWITCH TOGGLE |
1,681 |
|
Datasheet | M | Bulk | Active | Panel Mount | DPDT | On-On | 6A (AC), 4A (DC) | 125 V | 30 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
|
7201SYWQESWITCH TOGGLE DPDT 5A 120V |
4,299 |
|
Datasheet | 7000 | Tray | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Wire Wrap | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
7205SYZQESWITCH TOGGLE DPDT 5A 120V |
3,454 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
C3960BASWITCH TOGGLE DPDT 16A 125V |
3,375 |
|
Datasheet | 3900 | Bulk | Active | Panel Mount | DPDT | On-On | 16A (AC), 14A (DC) | 125 V | 36 V | Standard Round | 17.50mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.70mm Dia | 15/32-32 | - | - | - |
|
|
MN32LL1W01SWITCH TOGGLE |
3,891 |
|
Datasheet | M | Bulk | Active | Panel Mount | 3PDT | On-On | 4A (AC), 3A (DC) | 125 V | 30 V | Locking Lever | 16.50mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.50mm Dia | 1/4-40 | - | - | -30°C ~ 85°C |
|
MTA106EPCSWITCH TOGGLE SPDT 6A 125V |
1,511 |
|
Datasheet | MTA Green | Bulk | Active | Panel Mount | SPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | PC Pin | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
1825222-3SWITCH TOGGLE SPDT 3A 125V |
4,430 |
|
Datasheet | TT | Bulk | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 125 V | 28 V | Standard Round | 7.52mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.83mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
MTA206PSWITCH TOGGLE DPDT 6A 125V |
4,618 |
|
Datasheet | MTA Green | Bulk | Active | Panel Mount | DPDT | On-Off-On | 6A (AC), 4A (DC) | 125 V | 28 V | Standard Round | 10.49mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.40mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -20°C ~ 80°C |
|
2GM54-73SWITCH TOGGLE DPDT 15A 125V |
4,800 |
|
Datasheet | G | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Standard Round | 17.45mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.70mm Dia | 15/32-32 | - | - | 0°C ~ 85°C |
|

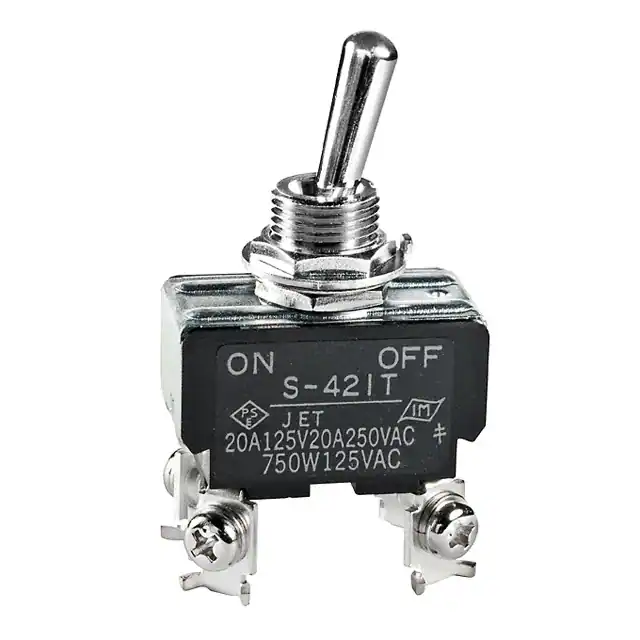

S421TSWITCH TOGGLE DPST 20A 125V |
1,148 |
|
Datasheet | S400 | Bulk | Active | Panel Mount | DPST | On-Off | 20A (AC) | 125 V | - | Standard Round | 17.50mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.50mm Dia | M12 x 1 | - | - | -10°C ~ 70°C |
|
7301P3YZQESWITCH TOGGLE 3PDT 5A 120V |
3,006 |
|
Datasheet | 7000 | Bulk | Active | Panel Mount | 3PDT | On-On | 5A (AC/DC) | 120 V | 28 V | Flat Anti-Rotation | 11.43mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
|
MN12WBG01SWITCH TOGGLE |
2,342 |
|
Datasheet | M | Bulk | Active | Panel Mount | SPDT | On-On | 0.4VA (AC/DC) | 28 V | 28 V | Standard Round | 20.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | M12 x 1 | IP67 - Dust Tight, Waterproof | - | -30°C ~ 85°C |
