Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
12TW1-70SWITCH TOGGLE DPDT 5A 125V |
2,766 |
|
Datasheet | TW | Bulk | Active | Panel Mount | DPDT | Mom-On-Mom | 5A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
11TW105-7SWITCH TOGGLE SPDT 5A 125V |
1,387 |
|
Datasheet | TW | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 5A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2NT1-7-COMBSEALED OI SWITCH |
3,033 |
|
Datasheet | - | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|

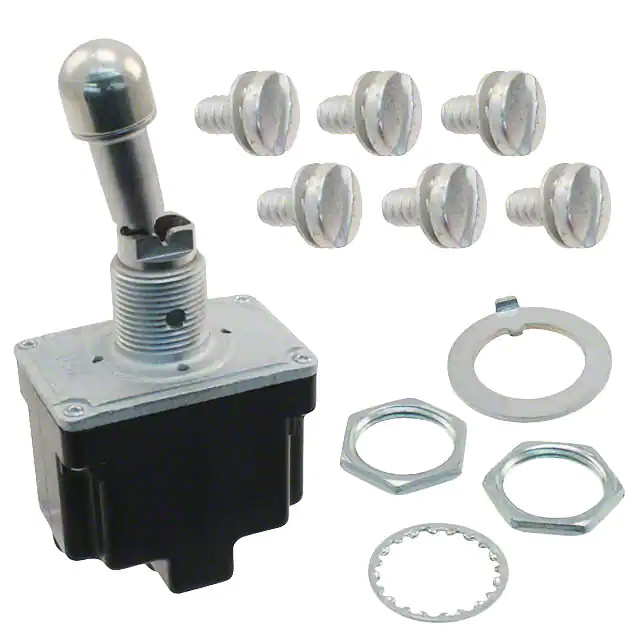

2TL1-1ESWITCH TOGGLE DPDT 15A 125V |
4,022 |
|
Datasheet | TL | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

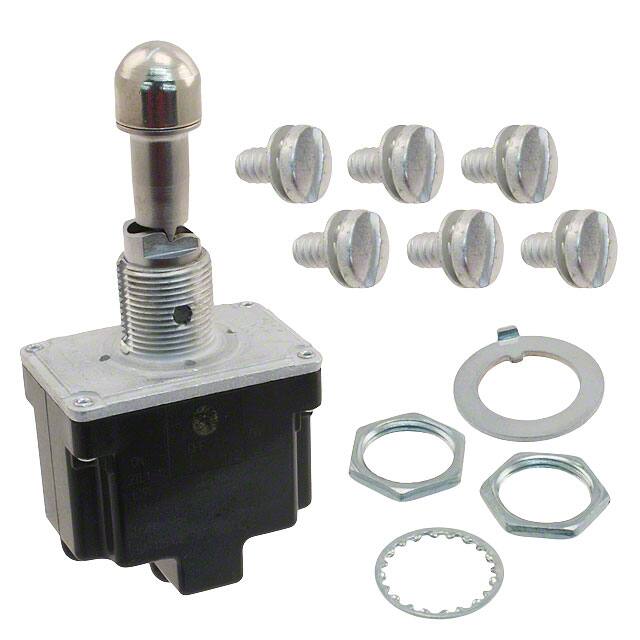

2TL1-1LSWITCH TOGGLE DPDT 15A 125V |
2,647 |
|
Datasheet | TL | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
2TL1-5FSWITCH TOGGLE DPDT 10A 125V |
4,167 |
|
Datasheet | TL | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
1TL1-7LSWITCH TOGGLE SPDT 10A 125V |
3,898 |
|
Datasheet | TL | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
2TL11-7SWITCH TOGGLE DPDT 10A 125V |
1,986 |
|
Datasheet | TL | Bulk | Active | Panel Mount | DPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL1-1NSWITCH TOGGLE DPDT 15A 125V |
1,238 |
|
Datasheet | TL | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
|
2TL1-1PSWITCH TOGGLE DPDT 15A 125V |
3,234 |
|
Datasheet | TL | Bulk | Active | Panel Mount | DPDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
