Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AML25GBF2CA01RGSWITCH TOGGLE DPDT 3A 125V |
1,956 |
|
Datasheet | AML25 | Bulk | Active | Panel Mount, Snap-In | DPDT | On-On | 3A (AC), 2A (DC) | 125 V | 24 V | Paddle | - | Illuminated | LED, Green/Red | 24 VDC | Solder, Quick Connect - 0.110" (2.8mm) | Rectangular - 28.98mm x 19.05mm | - | - | - | - |
|

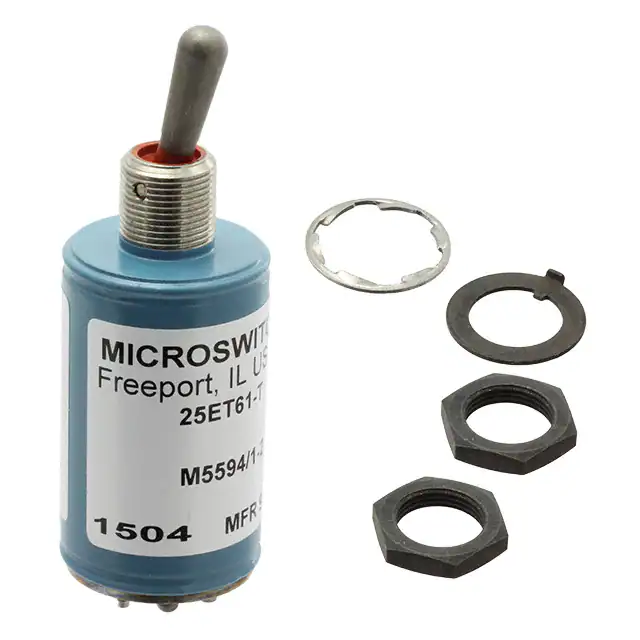

25ET61-TSWITCH TOGGLE SPDT 4A 28V |
2,717 |
|
Datasheet | ET | Bulk | Active | Panel Mount | SPDT | On-Mom | 4A (DC) | - | 28 V | Standard Round | 17.53mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | Magnetic Hold | -65°C ~ 71°C |
|
31NT91-6SWITCH TOGGLE SPST-NO 10A 125V |
1,500 |
|
Datasheet | NT | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Quick Connect - 0.250" (6.3mm) | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

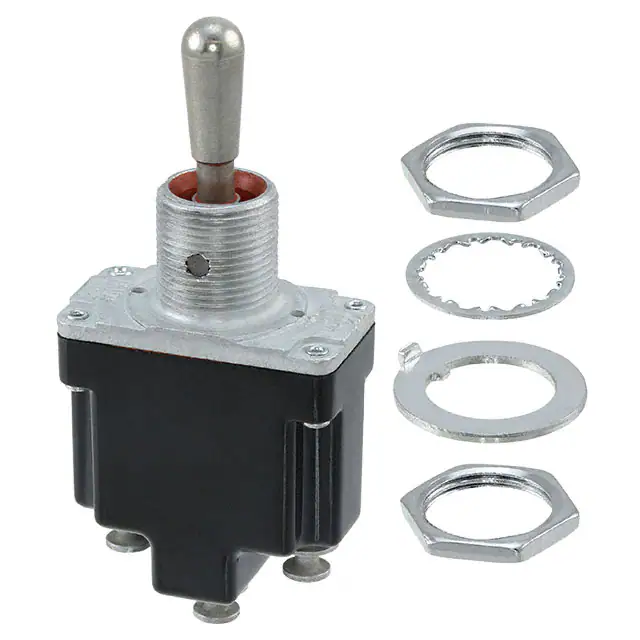

11TL1-7SWITCH TOGGLE SPDT 10A 125V |
4,694 |
|
Datasheet | TL | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
12TW1-5KSWITCH TOGGLE DPDT 5A 125V |
3,673 |
|
Datasheet | TW | Bulk | Active | Panel Mount | DPDT | On-Off-Mom | 5A (AC) | 125 V | - | Locking Lever | 29.46mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
4TL1-1ESWITCH TOGGLE 4PDT 15A 125V |
3,025 |
|
Datasheet | TL | Bulk | Active | Panel Mount | 4PDT | On-Off-On | 15A (AC) | 125 V | - | Locking Lever | 26.67mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
11TW1-2DSWITCH TOGGLE SPST 5A 125V |
4,063 |
|
Datasheet | TW | Bulk | Active | Panel Mount | SPST | On-Off | 5A (AC/DC) | 125 V | 28 V | Locking Lever | 29.46mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

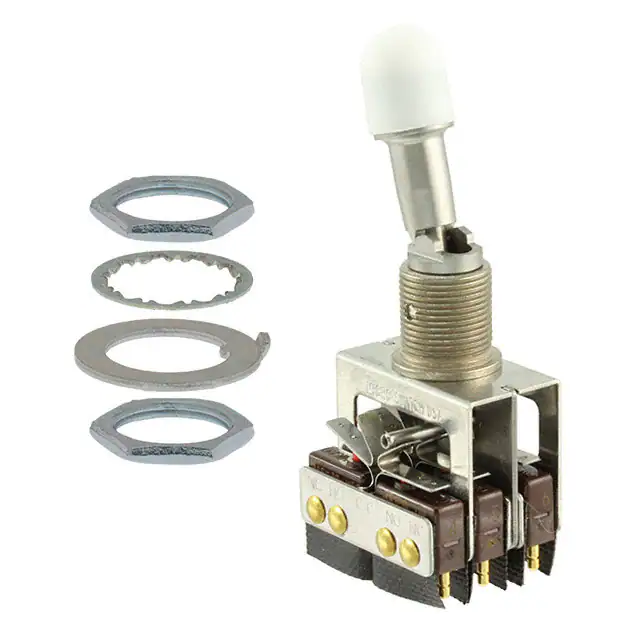

66AT22-3DSWITCH TOGGLE 6PDT 7A 115V |
2,240 |
|
Datasheet | AT | Bulk | Active | Panel Mount | 6PDT | On-On | 7A (AC/DC) | 115 V | 28 V | Locking Lever | 30.00mm | Non-Illuminated | - | - | Quick Connect - 0.058" (Round) | Circular - 12.40mm Dia | 15/32-32 | - | - | -55°C ~ 85°C |
|
1TW1-3SWITCH TOGGLE SPDT 5A 125V |
2,235 |
|
Datasheet | TW | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 125 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Turret | Circular - 6.60mm Dia | 1/4-40 | - | - | -65°C ~ 71°C |
|
1TL133-1SWITCH TOGGLE SPDT 15A 125V |
3,338 |
|
Datasheet | TL | Bulk | Active | Panel Mount | SPDT | On-Off-On | 15A (AC) | 125 V | - | Bar | 20.32mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
