Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
61NT887-7SWITCH TOGGLE SPDT 10A 125V |
4,827 |
|
Datasheet | NT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
|

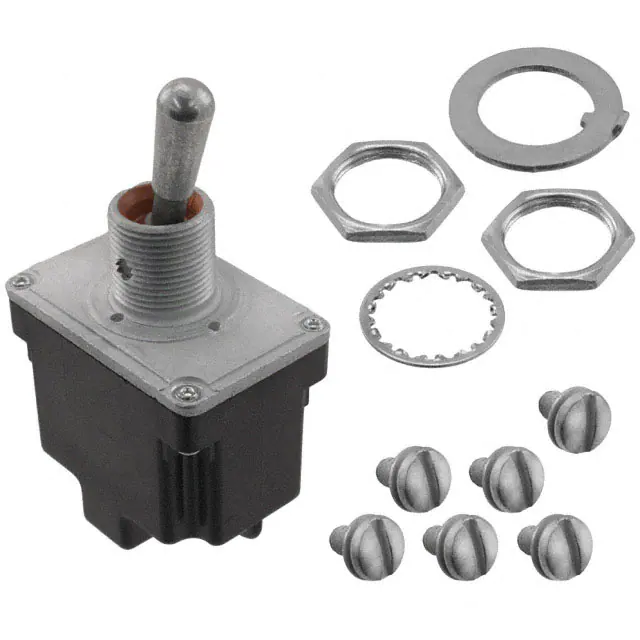

2TL1-31SWITCH TOGGLE DPDT 15A 125V |
2,260 |
|
Datasheet | TL | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
12TL1-2SWITCH TOGGLE DPST 15A 125V |
1,601 |
|
Datasheet | TL | Bulk | Active | Panel Mount | DPST | On-Off | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

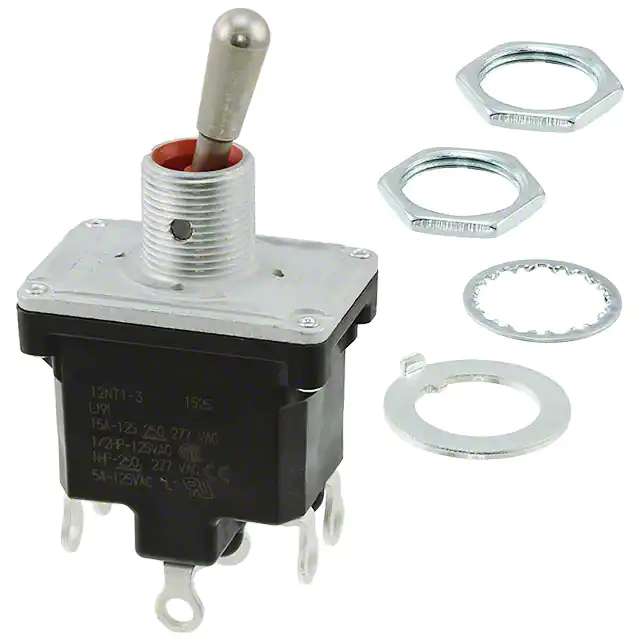

12NT1-3SWITCH TOGGLE DPDT 15A 125V |
2,579 |
|
Datasheet | NT | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -65°C ~ 71°C |
|

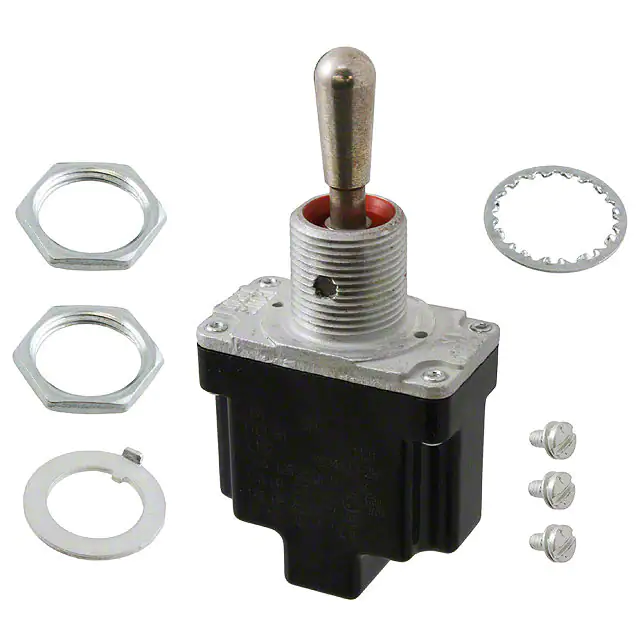

1TL1-61SWITCH TOGGLE SPST-NO 10A 125V |
1,131 |
|
Datasheet | TL | Bulk | Active | Panel Mount | SPST-NO | Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
101TL2-3SWITCH TOGGLE SPDT 7.5A 115V |
1,461 |
|
Datasheet | TL | Bulk | Active | Panel Mount | SPDT | On-On | 7.5A (AC/DC) | 115 V | 30 V | Standard Round | 17.27mm | Non-Illuminated | - | - | IWTS | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|
12TL1-3SWITCH TOGGLE DPDT 15A 125V |
4,367 |
|
Datasheet | TL | Bulk | Active | Panel Mount | DPDT | On-On | 15A (AC) | 125 V | - | Standard Round | 17.27mm | Non-Illuminated | - | - | Solder Turret | Circular - 12.40mm Dia | 15/32-32 | Environment Sealed | - | -65°C ~ 71°C |
|

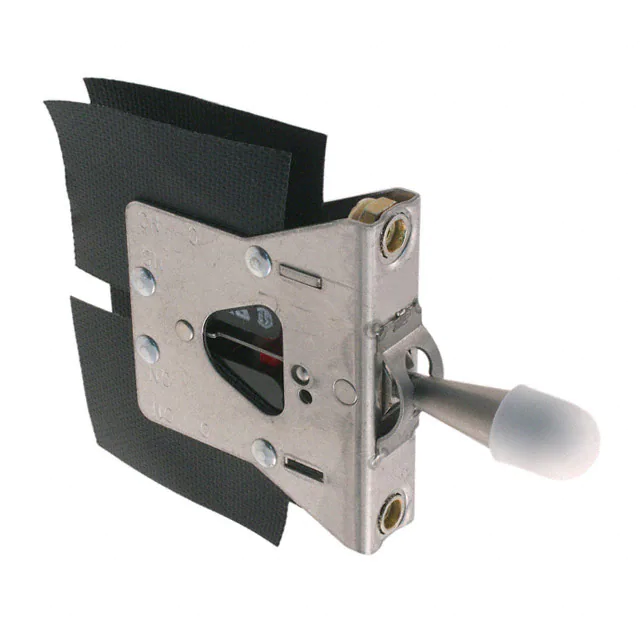

111AT25SWITCH TOGGLE DPDT 15A 125V |
2,569 |
|
Datasheet | AT | Bulk | Active | Panel Mount | DPDT | On-Mom | 15A (AC) | 125 V | - | Locking Lever | 31.75mm | Non-Illuminated | - | - | Screw Terminal | - | - | - | White Cap | - |
|

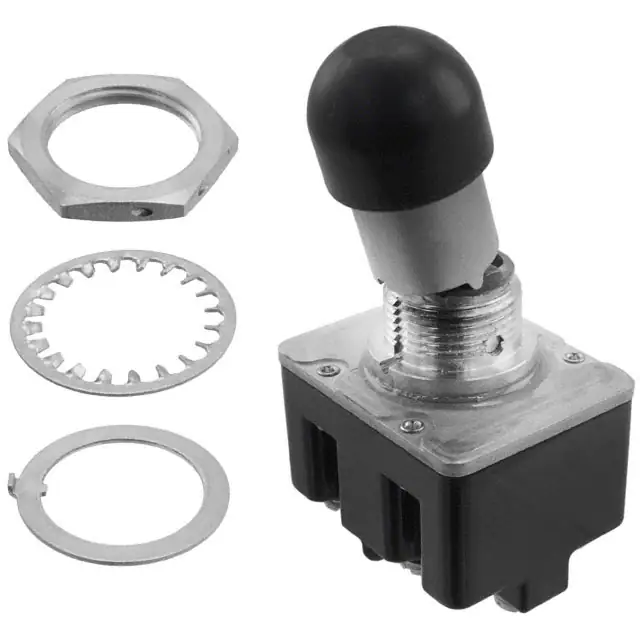

3TL32-1-3DSWITCH TOGGLE 3PDT 15A 125V |
1,743 |
|
Datasheet | TL | Bulk | Active | Panel Mount | 3PDT | On-On | 15A (AC) | 125 V | - | Locking Lever | 38.86mm | Illuminated | Incandescent, Red | 28 VAC | Wire Leads | - | 3/4-20 | Environment Sealed | - | -65°C ~ 71°C |
|

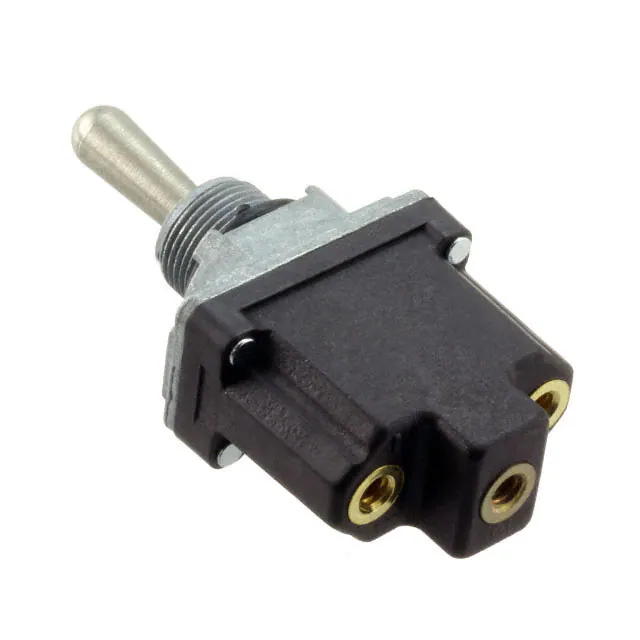

61NT1-7-NHSWITCH TOGGLE SPDT 10A 125V |
3,383 |
|
Datasheet | NT | Bulk | Active | Panel Mount | SPDT | Mom-Off-Mom | 10A (AC) | 125 V | - | Standard Round | 17.02mm | Non-Illuminated | - | - | Screw Terminal | Circular - 12.40mm Dia | 15/32-32 | IP67/IP68 - Dust Tight, Waterproof | Sealed | -40°C ~ 71°C |
