Toggle Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Circuit | Switch Function | Current Rating (Amps) | Voltage Rating - AC | Voltage Rating - DC | Actuator Type | Actuator Length | Illumination | Illumination Type, Color | Illumination Voltage (Nominal) | Termination Style | Panel Cutout Dimensions | Bushing Thread | Ingress Protection | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
121462VX778SWITCH TOGGLE DPDT 4A 125V |
3,428 |
|
Datasheet | 12000 | Bulk | Active | Panel Mount | DPDT | On-On | 4A (AC/DC) | 125 V | 30 V | Locking Lever | 19.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 12.50mm Dia | 15/32-32 | - | Epoxy Sealed Terminals | -40°C ~ 85°C |
|
SW-T2-3A-A-A2-M2SWITCH TOGGLE DPST 6A 125V |
293 |
|
Datasheet | SW | Bag | Active | Panel Mount | DPST | On-Off | 6A (AC) | 125 V | - | Standard Round | 11.00mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.00mm Dia | M6 x 0.75 | - | - | -25°C ~ 85°C |
|
SW-T3-4B-A-A3-S2SWITCH TOGGLE DPDT 3A 125V |
313 |
|
Datasheet | SW | Bag | Active | Panel Mount | DPDT | On-On | 3A (AC) | 125 V | - | Standard Round | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 5.00mm Dia | M5 x 0.5 | - | - | -25°C ~ 85°C |
|
BNT11SEBQESWITCH TOGGLE SPDT 3A 120V |
112 |
|
Datasheet | BNT | Bulk | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | Solder Lug | Circular - 4.95mm Dia | 10-48 | - | - | -40°C ~ 85°C |
|
100DP1T1B1M2QESWITCH TOGGLE DPDT 5A 120V |
211 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.41mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
ANT21SECQESWITCH TOGGLE DPDT 5A 120V |
7,266 |
|
Datasheet | ANT | Bulk | Active | Through Hole | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | - | -40°C ~ 85°C |
|
ANT11TFHQESWITCH TOGGLE SPDT 5A 120V |
640 |
|
Datasheet | ANT | Bulk | Active | Through Hole, Right Angle | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | - | 1/4-40 | - | - | -40°C ~ 85°C |
|

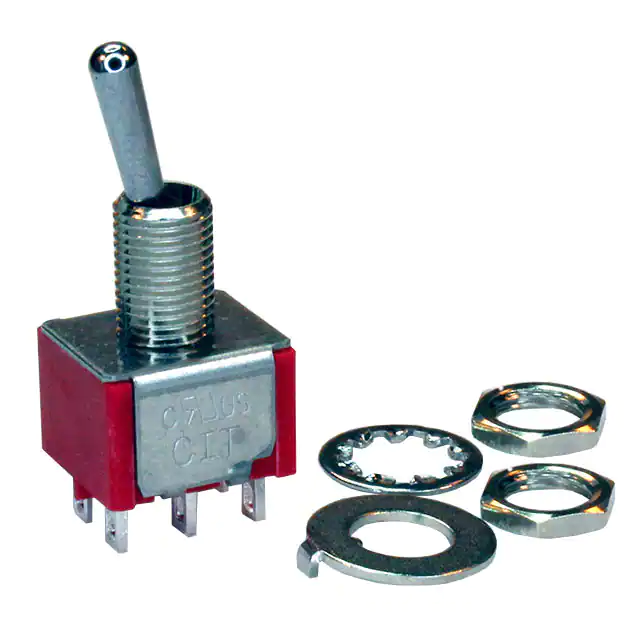

ANT21SEBQESWITCH TOGGLE DPDT 5A 120V |
1,580 |
|
Datasheet | ANT | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | - | -40°C ~ 85°C |
|
BNT11SECQESWITCH TOGGLE SPDT 3A 120V |
1,907 |
|
Datasheet | BNT | Bulk | Active | Through Hole | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 9.40mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | - | -40°C ~ 85°C |
|
ANT13SEBQESWITCH TOGGLE SPDT 5A 120V |
909 |
|
Datasheet | ANT | Bulk | Active | Panel Mount | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 10.67mm | Non-Illuminated | - | - | Solder Lug | - | 1/4-40 | - | - | -40°C ~ 85°C |
|
AST11SEBQSWITCH TOGGLE SPDT 5A 120V |
330 |
|
Datasheet | AST | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
CST11T2CRSWITCH TOGGLE SPDT 0.4VA 20V |
771 |
|
Datasheet | CST | Tube | Active | Through Hole | SPDT | On-On | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
CST10T2CRSWITCH TOGGLE SPST 0.4VA 20V |
151 |
|
Datasheet | CST | Tube | Active | Through Hole | SPST | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 3.80mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
100DP1T4B1M1QEHSWITCH TOGGLE DPDT 5A 120V |
616 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | DPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 16.26mm | Non-Illuminated | - | - | Solder Lug | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
AST13SNCQSWITCH TOGGLE SPDT 5A 120V |
666 |
|
Datasheet | AST | Bulk | Active | Through Hole | SPDT | On-Off-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 12.70mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | IP67 - Dust Tight, Waterproof | - | -40°C ~ 85°C |
|
200MSP6T1B1M5RESWITCH TOGGLE SPST 0.4VA 20V |
181 |
|
Datasheet | 200 | Bulk | Active | Panel Mount | SPST | On-Off | 0.4VA (AC/DC) | 20 V | 20 V | Standard Round | 9.40mm | Non-Illuminated | - | - | Wire Wrap | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
100SP1T2B3M2QEHSWITCH TOGGLE SPDT 5A 120V |
381 |
|
Datasheet | 100 | Bulk | Active | Panel Mount | SPDT | On-On | 5A (AC/DC) | 120 V | 28 V | Standard Round | 5.08mm | Non-Illuminated | - | - | PC Pin | Circular - 6.35mm Dia | 1/4-40 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MSP1T2B1M2QEHSWITCH TOGGLE SPDT 3A 120V |
567 |
|
Datasheet | 200 | Bulk | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MSP1T2B4M2QESWITCH TOGGLE SPDT 3A 120V |
177 |
|
Datasheet | 200 | Bulk | Active | Through Hole | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | - | Unthreaded | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
|
200MSP1T2B1M2QESWITCH TOGGLE SPDT 3A 120V |
132 |
|
Datasheet | 200 | Bulk | Active | Panel Mount | SPDT | On-On | 3A (AC/DC) | 120 V | 28 V | Standard Round | 5.33mm | Non-Illuminated | - | - | PC Pin | Circular - 4.95mm Dia | 10-48 | - | Epoxy Sealed Terminals | -30°C ~ 85°C |
