Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
88827503RELAY TIME DELAY 100HR 8A 250V |
2,271 |
|
- |
MURC3 | Box | Active | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 100 Hrs | 8A @ 250VAC | 12 ~ 240VAC/DC | Spring Terminal | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
THD1B410.5SRELAY TIME DELAY 0.5 SEC CHAS MT |
4,221 |
|
Datasheet | THD1 | Bulk | Active | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | Fixed, 0.5 Sec | - | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
HRDM3112SRELAY TIME DELAY 12 SEC 30A 125V |
4,776 |
|
Datasheet | HRDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | Fixed, 12 Sec | 30A @ 125/240VAC | 24VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
HRDR431A1RRELAY TIME DELAY 100SEC 30A 125V |
2,855 |
|
Datasheet | HRDR | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | 0.1 Sec ~ 100 Sec | 30A @ 125/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage, Trigger Signal | - | - |
|
HRDR321A4RRELAY TIME DELAY 100SEC 30A 125V |
4,933 |
|
Datasheet | HRDR | Bulk | Active | Chassis Mount | Mechanical Relay | Repeat Cycle | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 30A @ 125/240VAC | 24VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
HRDB124RELAY TIME DELAY 100MIN 30A 125V |
2,014 |
|
Datasheet | HRDB | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 1 Min ~ 100 Min | 30A @ 125/240VAC | 12VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
HRDS321RELAY TIME DELAY 100SEC 30A 125V |
3,024 |
|
Datasheet | HRDS | Bulk | Active | Chassis Mount | Mechanical Relay | One Shot | SPDT (1 Form C) | 1 Sec ~ 100 Sec | 30A @ 125/240VAC | 24VDC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage, Trigger Signal | - | - |
|
HRDM413MRELAY TIME DELAY 3MIN 30A 125V |
2,617 |
|
Datasheet | HRDM | Bulk | Active | Chassis Mount | Mechanical Relay | On-Delay | SPDT (1 Form C) | Fixed, 3 Min | 30A @ 125/240VAC | 120VAC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
FAA01DW24RELAY TIME DELAY 300HR 8A 250V |
1,526 |
|
Datasheet | FAA01 | Box | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.05 Sec ~ 300 Hrs | 8A @ 250VAC | 12 ~ 240VAC/DC | Plug In, 11 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
TDMB622RELAY TIME DEL 1023SEC 10A 120V |
4,067 |
|
Datasheet | TDMB | Bulk | Active | Socketable | Mechanical Relay | Off-Delay, On-Delay | SPDT (1 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 230VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage, Trigger Signal | - | - |
|
9050JCK2F30V14RELAY TIME DELAY 30SEC 10A 240V |
2,555 |
|
Datasheet | Square D JCK | Box | Active | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | Fixed, 30 Sec | 10A @ 240VAC | 24VAC/DC | Plug In | Fixed | Input Voltage | - | - |
|
HRPSD12HIRELAY TIME DELAY 2 HR 30A 125V |
1,010 |
|
Datasheet | HRPS | Bulk | Active | Chassis Mount | Mechanical Relay | Off-Delay | SPDT (1 Form C) | Fixed, 2 Hrs | 30A @ 125/240VAC | 12 ~ 48VDC | Quick Connect - 0.250" (6.3mm) | Fixed | Input Voltage | - | - |
|
TDM24ALRELAY TIME DEL 1023SEC 10A 120V |
3,216 |
|
Datasheet | TDM | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 1 Sec ~ 1023 Sec | 10A @ 120/240VAC | 24VAC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|

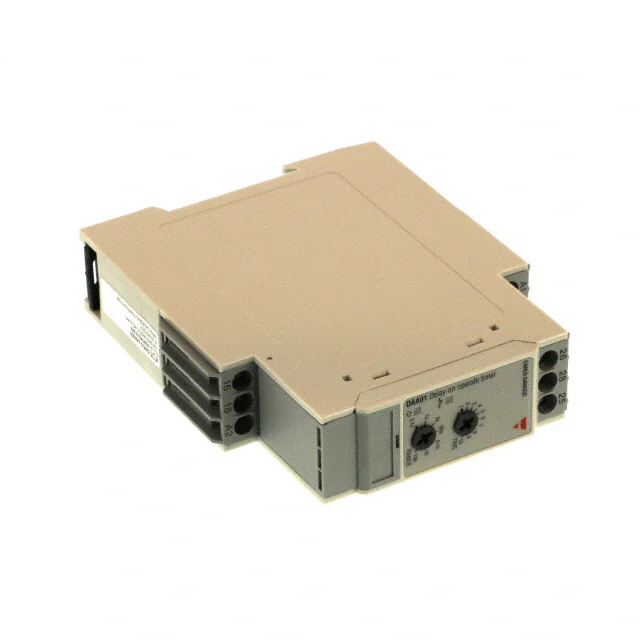

DAA01DM24RELAY TIME DELAY 100HR 8A 250V |
2,501 |
|
Datasheet | DAA01 | Box | Active | DIN Rail | Mechanical Relay | On-Delay | SPDT (1 Form C) x 2 | 0.1 Sec ~ 100 Hrs | 8A @ 250VAC | 24 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
9050JCK26PTV20RELAY TIME DELAY 10MIN |
4,824 |
|
Datasheet | Square D JCK | Box | Active | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 0.1 Min ~ 10 Min | 10A @ 240VAC | 120VAC/DC | Plug In | Hand Dial | Input Voltage, Trigger Signal | - | - |
|
TDML12DLRELAY TIME DEL 102.3SEC 10A 120V |
2,984 |
|
Datasheet | TDML | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 102.3 Sec | 10A @ 120/240VAC | 12VDC | Plug In, 8 Pin (Octal) | DIP Switches | Input Voltage | - | - |
|
PRLM41180RELAY TIME DELAY 180SEC 10A 240V |
4,613 |
|
Datasheet | PRLM | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | Fixed, 180 Sec | 10A @ 240VAC | 120VAC | Plug In, 8 Pin (Octal) | Fixed | Input Voltage | - | - |
|
H3Y-2 DC24 1SRELAY TIME DELAY 1SEC 5A 250V |
1,856 |
|
Datasheet | H3Y | Bulk | Active | Socketable | Mechanical Relay | Off-Delay, On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 1 Sec | 5A @ 250VAC | 24VDC | Plug In | Hand Dial | Input Voltage | - | - |
|
88865265RELAY TIME DELAY 160SEC 8A 250V |
3,863 |
|
Datasheet | TK2R1 | Bulk | Active | DIN Rail | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 0.6 Sec ~ 160 Sec | 8A @ 250VAC | 24 ~ 240VAC | Screw Terminal | Hand Dial | Input Voltage | - | - |
|
DMB01CM24RELAY TIME DELAY 100HR 8A 250V |
2,070 |
|
Datasheet | DMB01 | Box | Active | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 100 Hrs | 8A @ 250VAC | 24 ~ 240VAC, 24VDC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
