Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
7024ADRELAY TIME DELAY 50SEC 10A 240V |
1,295 |
|
Datasheet | 7000, AGASTAT | Bulk | Active | Panel Mount | Mechanical Relay | Off-Delay | 4PDT (4 Form C) | 5 Sec ~ 50 Sec | 10A @ 240VAC | 120VAC | Screw Terminal | Hand Dial | Input Voltage | - | - |
|

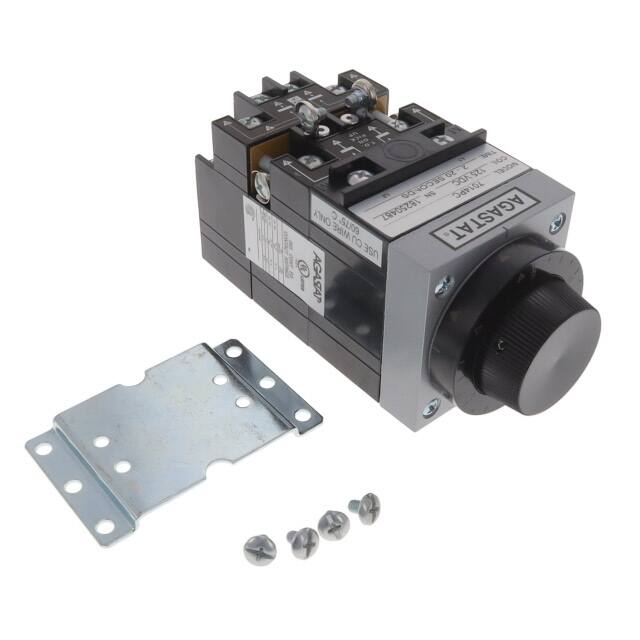

7014PCRELAY TIME DELAY 20SEC 10A 240V |
3,217 |
|
Datasheet | 7000, AGASTAT | Bulk | Active | Panel Mount | Mechanical Relay | On-Delay | 4PDT (4 Form C) | 2 Sec ~ 20 Sec | 10A @ 240VAC | 125VDC | Screw Terminal | Hand Dial | Input Voltage | - | - |
|
1648324-1RELAY TIME DELAY |
1,181 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
VTM1ECDRELAY TIME DELAY 10SEC 1A 120V |
4,945 |
|
- |
VTM1, AGASTAT | Bulk | Obsolete | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.5 Sec ~ 10 Sec | 1A @ 120VAC | 24VAC/DC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|

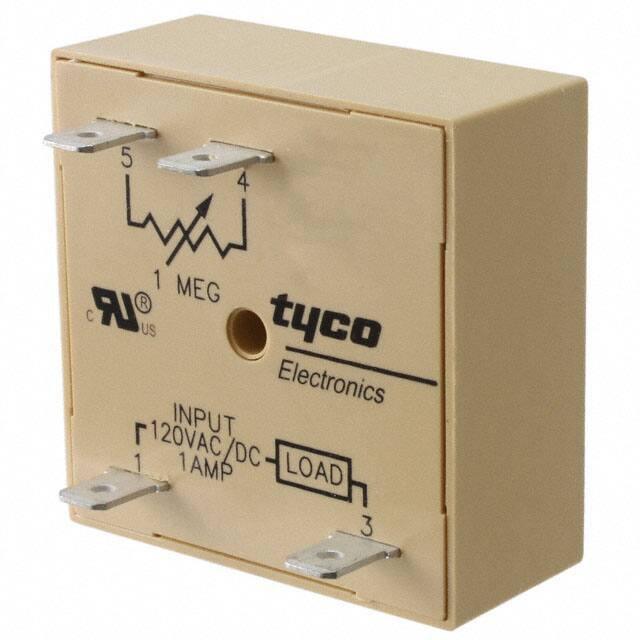

VTM1ACDRELAY TIME DELAY 10SEC 1A 120V |
3,115 |
|
- |
VTM1, AGASTAT | Bulk | Obsolete | Chassis Mount | Solid State Relay | On-Delay | SPST-NO (1 Form A) | 0.5 Sec ~ 10 Sec | 1A @ 120VAC | 120VAC/DC | Quick Connect - 0.250" (6.3mm) | External Resistor | Input Voltage | - | - |
|

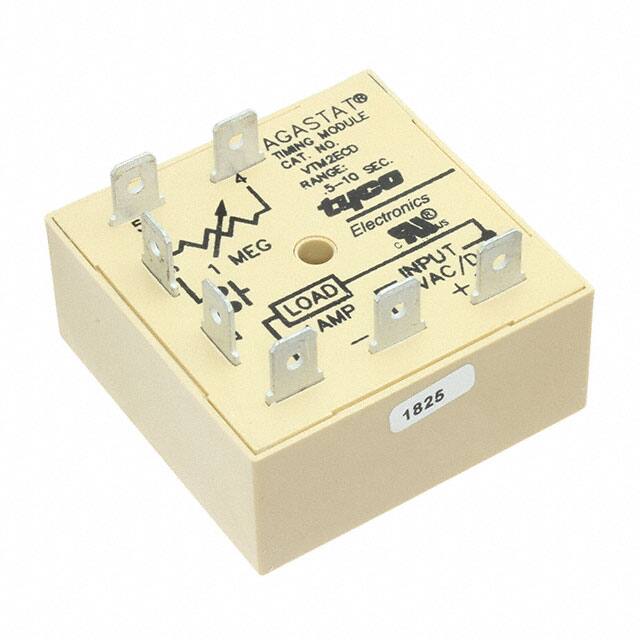

VTM2ECDRELAY TIME DELAY |
3,742 |
|
Datasheet | VTM2 | Bulk | Obsolete | Panel Mount | Mechanical Relay | Off-Delay | SPST-NO (1 Form A) | 0.5 Sec ~ 10 Sec | - | 24VAC/DC | Quick Connect - 0.250" (6.3mm) | Screwdriver Slot | Input Voltage | - | - |
|
|
SSC12AGARELAY TIME DELAY 300SEC 10A 120V |
1,857 |
|
Datasheet | SSC, AGASTAT | Bulk | Discontinued at Digi-Key | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 10 Sec ~ 300 Sec | 10A @ 120VAC | 120VAC/DC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
SSC12EBARELAY TIME DELAY 15SEC 10A 120V |
1,740 |
|
Datasheet | SSC, AGASTAT | Bulk | Discontinued at Digi-Key | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.5 Sec ~ 15 Sec | 10A @ 120VAC | 24VAC/DC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
SST12ACARELAY TIME DELAY |
2,332 |
|
Datasheet | SST | Bulk | Obsolete | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 0.6 Sec ~ 60 Sec | 10A @ 120VAC | 120VAC | Plug In | Hand Dial | Input Voltage | - | - |
|
|
7022BBRELAY TIME DELAY 5SEC 10A 240V |
4,756 |
|
Datasheet | 7000, AGASTAT | Bulk | Discontinued at Digi-Key | Panel Mount | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 0.5 Sec ~ 5 Sec | 10A @ 240VAC | 240VAC | Screw Terminal | Hand Dial | Input Voltage | - | - |
