Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

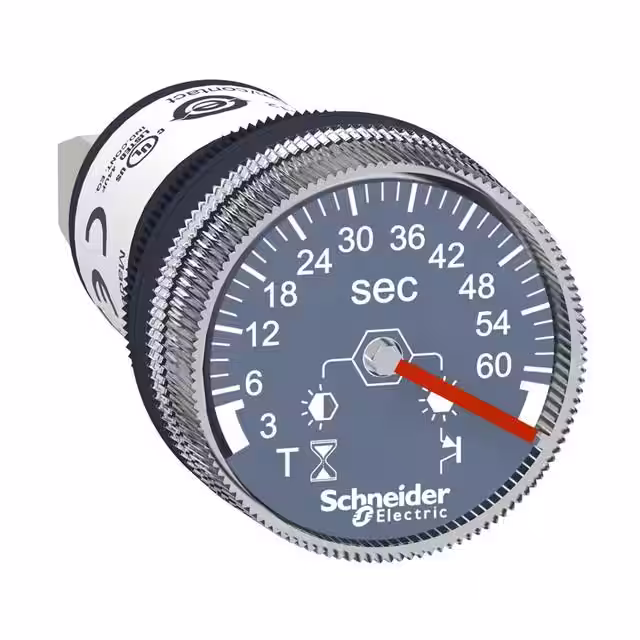

XB5DTB23RELAY TIME DELAY 60SEC PNL MT |
1,079 |
|
Datasheet | Harmony | Box | Active | Panel Mount | Timer Only, Relay Not Included | Programmable (Multi-Function) | - | 3 Sec ~ 60 Sec | - | 24VDC | Screw Terminal | - | Input Voltage | - | - |
|

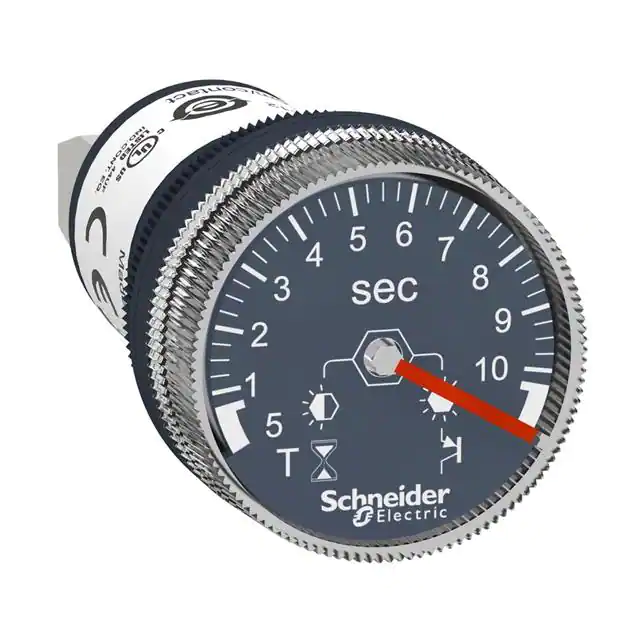

XB5DTB22RELAY TIME DELAY 10SEC PNL MT |
1,696 |
|
Datasheet | Harmony | Box | Active | Panel Mount | Timer Only, Relay Not Included | Programmable (Multi-Function) | - | 0.5 Sec ~ 10 Sec | - | 24VDC | Screw Terminal | - | Input Voltage | - | - |
|
REXL2TMJDRELAY TIME DELAY 100HR |
1,935 |
|
Datasheet | Harmony | Box | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 100 Hrs | 5A @ 250VAC/DC | 12VDC | Plug In | Hand Dial | Input Voltage | - | - |
|
|
REXL2TMB7RELAY TIME DELAY 100HR |
1,562 |
|
Datasheet | Harmony | Box | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 100 Hrs | 5A @ 250VAC/DC | 24VAC | Plug In | Hand Dial | Input Voltage | - | - |
|
XB5DTB25RELAY TIME DELAY 60MIN PNL MT |
4,991 |
|
Datasheet | Harmony | Box | Active | Panel Mount | Timer Only, Relay Not Included | Programmable (Multi-Function) | - | 3 Min ~ 60 Min | - | 24VDC | Screw Terminal | - | Input Voltage | - | - |
|
XB5DTGM4RELAY TIME DELAY 10MIN PNL MT |
3,676 |
|
Datasheet | Harmony | Box | Active | Panel Mount | Timer Only, Relay Not Included | Programmable (Multi-Function) | - | 0.5 Min ~ 10 Min | - | 110 ~ 230VAC/DC | Screw Terminal | - | Input Voltage | - | - |
|
RE17RHMURELAY TIME DELAY 100HR 8A 250V |
1,397 |
|
Datasheet | Harmony | Box | Active | DIN Rail | Mechanical Relay | Interval | SPDT (1 Form C) | 0.1 Sec ~ 100 Hrs | 8A @ 250VAC | 24 ~ 240VAC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
REXL2TMF7RELAY TIME DELAY 100HR |
1,481 |
|
Datasheet | Harmony | Box | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 100 Hrs | 5A @ 250VAC/DC | 120VAC | Plug In | Hand Dial | Input Voltage | - | - |
|
REXL4TMF7RELAY TIME DELAY 100HR |
2,215 |
|
Datasheet | Harmony | Box | Active | Socketable | Mechanical Relay | On-Delay | 4PDT (4 Form C) | 0.1 Sec ~ 100 Hrs | 5A @ 250VAC/DC | 120VAC | Plug In | Hand Dial | Input Voltage | - | - |
|

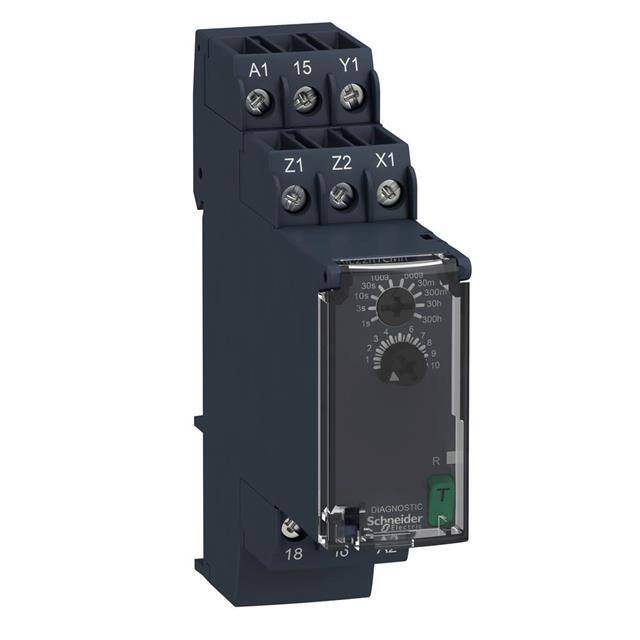

RE22R1CMRRELAY TIME DELAY 300HR 8A 250V |
1,632 |
|
Datasheet | Harmony | Box | Active | DIN Rail | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 0.05 Sec ~ 300 Hrs | 8A @ 250VAC | 24 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
