Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
H3DE-M1 AC/DC24-230RELAY TIME DELAY 120HR 5A 250V |
2,020 |
|
Datasheet | H3DE-M | Bulk | Obsolete | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 120 Hrs | 5A @ 250VAC | 24 ~ 230VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
H3DKZ-A1A DC12RELAY TIME DELAY 1200HR 5A 250V |
1,330 |
|
Datasheet | H3DKZ | Bulk | Active | DIN Rail | Mechanical Relay | On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 1200 Hrs | 5A @ 250VAC | 12VDC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
H3DKZ-A1 AC/DC24-240RELAY TIME DELAY 1200HR 5A 250V |
1,915 |
|
Datasheet | H3DKZ | Bulk | Active | DIN Rail | Mechanical Relay | On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 1200 Hrs | 5A @ 250VAC | 24 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|

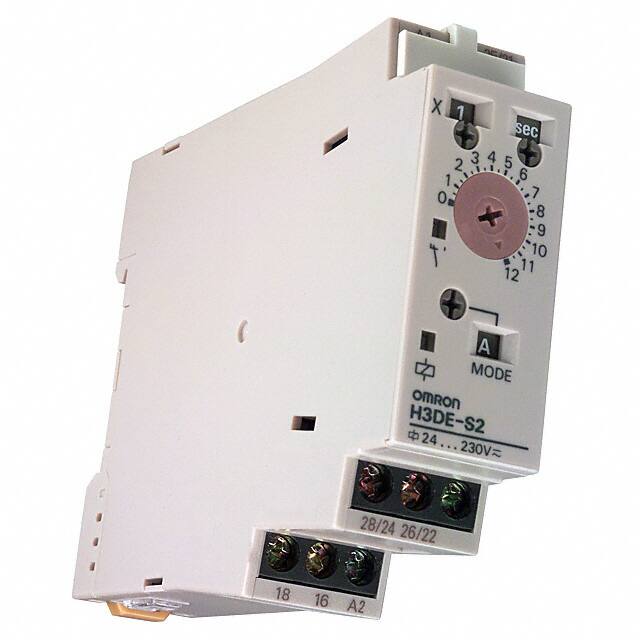

H3DE-S2 AC/DC24-230RELAY TIME DELAY 120HR 5A 250V |
1,508 |
|
Datasheet | H3DE-S | Bulk | Obsolete | DIN Rail | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.1 Sec ~ 120 Hrs | 5A @ 250VAC | 24 ~ 230VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
H3DS-XLCRELAY TIME DELAY |
1,979 |
|
- |
H3DS | Bulk | Active | DIN Rail | Solid State Relay | On-Delay | SPDT (1 Form C) | 0.1 Sec ~ 120 Hrs | - | 24 ~ 230VAC/DC | Spring Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
H3DKZ-FA DC12RELAY TIME DELAY 1200HR 5A 250V |
4,694 |
|
Datasheet | H3DKZ | Bulk | Active | DIN Rail | Mechanical Relay | Repeat Cycle, Twin Timer | SPDT (1 Form C) | 0.1 Sec ~ 1200 Hrs | 5A @ 250VAC | 12VDC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
H3DKZ-F AC/DC24-240RELAY TIME DELAY 1200HR 5A 250V |
1,146 |
|
Datasheet | H3DKZ | Bulk | Active | DIN Rail | Mechanical Relay | Repeat Cycle, Twin Timer | SPDT (1 Form C) | 0.1 Sec ~ 1200 Hrs | 5A @ 250VAC | 24 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
H3DKZ-G AC/DC24-240RELAY TIME DELAY 120 SEC 5A 250V |
2,646 |
|
Datasheet | H3DKZ | Bulk | Active | DIN Rail | Mechanical Relay | Star Delta Controller | SPDT (1 Form C) | 1 Sec ~ 120 Sec | 5A @ 250VAC | 24 ~ 240VAC/DC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
H3DKZ-A2A DC12RELAY TIME DELAY 1200HR 5A 250V |
4,795 |
|
Datasheet | H3DKZ | Bulk | Active | DIN Rail | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 1200 Hrs | 5A @ 250VAC | 12VDC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
H3DKZ-HDL AC200-240VRELAY TIME DELAY 120 SEC 5A 250V |
3,037 |
|
Datasheet | H3DKZ | Bulk | Active | DIN Rail | Mechanical Relay | Off-Delay | SPDT (1 Form C) | 1 Sec ~ 120 Sec | 5A @ 250VAC | 200 ~ 240VAC | Screw Terminal | Screwdriver Slot | Input Voltage | - | - |
