Time Delay Relays
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Mounting Type | Relay Type | Function | Circuit | Delay Time | Contact Rating @ Voltage | Voltage - Supply | Termination Style | Timing Adjustment Method | Timing Initiate Method | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
88857707RELAY TIME DELAY 9999HR 8A 250V |
1,500 |
|
Datasheet | 816 | Bulk | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.01 Sec ~ 9999 Hrs | 8A @ 250VAC | Multi-Voltage | Plug In, 11 Pin (Octal) | Up/Down Digit Keys | Input Voltage, Trigger Signal | - | - |
|
|
TDG-120-A-K-A-30MRELAY TIME DELAY 30MIN 10A 250V |
4,208 |
|
Datasheet | TDG | Box | Active | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | 18 Sec ~ 30 Min | 10A @ 250VAC/24VDC | 110 ~ 120VAC/DC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
CP-15M-ARELAY TIME DELAY 15 MIN 20A 120V |
3,543 |
|
Datasheet | CP | Box | Discontinued at Digi-Key | Chassis Mount | Mechanical Relay | Programmable (Multi-Function) | SPST-NO (1 Form A) | Fixed, 15 Min | 20A @ 120VAC/240VAC | 120VAC | Screw Terminal | Fixed | Input Voltage | - | - |
|
|
TDT-240-AKA-100RELAY TIME DELAY 100SEC 10A 250V |
4,089 |
|
Datasheet | TDT | Box | Active | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 1 Sec ~ 100 Sec | 10A @ 250VAC/24VDC | 208 ~ 240VAC/DC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
TDT-240-ALA-200RELAY TIME DELAY 200SEC 10A 250V |
4,816 |
|
Datasheet | TDT | Box | Active | Socketable | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 2 Sec ~ 200 Sec | 10A @ 250VAC | 208 ~ 240VAC/DC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
|
SCBRX012XXABXAC991RELAY TIME DELAY |
2,816 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
TDRPRO-5101RELAY TIME DELAY 9990HR |
2,632 |
|
Datasheet | Legacy | Box | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 9990 Hrs | - | 12 ~ 240VAC/DC | Plug In | Thumbwheel Switches | Input Voltage | - | - |
|
3RP25402BW30RELAY TIME DELAY 600SEC 3A 250V |
3,713 |
|
Datasheet | SIRIUS | Box | Active | DIN Rail | Mechanical Relay | Off-Delay | DPDT (2 Form C) | 0.05 Sec ~ 600 Sec | 3A @ 250VAC | 12 ~ 240VAC/DC | Spring Terminal | Screwdriver Slot | Input Voltage | - | - |
|
9050JCK5F1V20RELAY TIME DELAY 1 SEC 10A 240V |
1,670 |
|
Datasheet | Square D JCK | Box | Obsolete | Socketable | Mechanical Relay | Repeat Cycle | DPDT (2 Form C) | Fixed, 1 Sec | 10A @ 240VAC | 120VAC | Plug In | Fixed | Input Voltage | - | - |
|

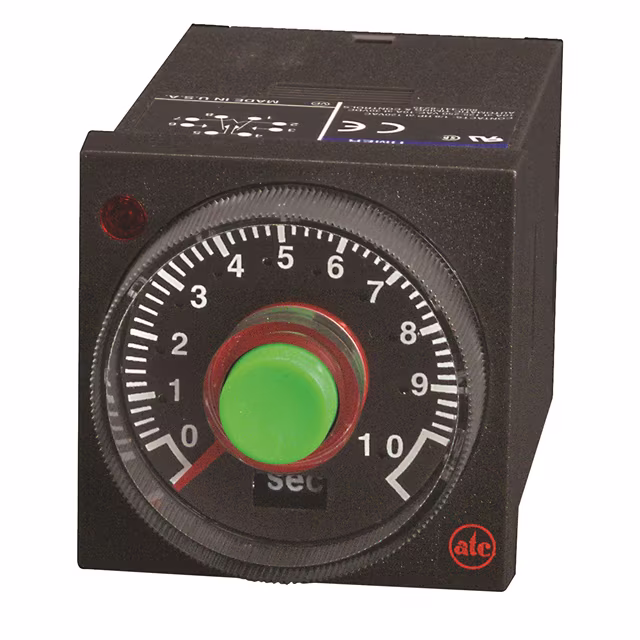

409B-100-F-2-XRELAY TIME DELAY 10HR 10A 250V |
4,212 |
|
Datasheet | 409B | Box | Discontinued at Digi-Key | Socketable | Mechanical Relay | Interval | DPDT (2 Form C) | 1 Sec ~ 10 Hrs | 10A @ 250VAC/30VDC | 24 ~ 240VAC, 24VDC | Plug In, 8 Pin (Octal) | Hand Dial | Input Voltage | - | - |
|
365C-300-R-30-PXRELAY TIME DELAY 999HR 7A 240V |
3,049 |
|
Datasheet | 365C | Box | Obsolete | DIN Rail | Mechanical Relay | Interval, On-Delay | DPDT (2 Form C) | 0.01 Sec ~ 999 Hrs | 7A @ 240VAC | 240VAC | Screw Terminal | Finger Knob | Input Voltage | - | - |
|
C48TS004RELAY TIME DELAY 999.9HR 5A 250V |
1,611 |
|
Datasheet | C48T | Box | Obsolete | Panel Mount | Solid State Relay | Programmable (Multi-Function) | SPST-NO (1 Form A) | 0.001 Sec ~ 999.9 Hrs | 5A @ 250VAC | 85 ~ 250VAC | Screw Terminal | Up/Down Digit Keys | Input Voltage | - | - |
|
H3CA-8-AC200/220/240RELAY TIME DELAY 9990HR 3A 250V |
1,908 |
|
Datasheet | H3CA | Bulk | Active | Socketable | Mechanical Relay | On-Delay | DPDT (2 Form C) | 0.1 Sec ~ 9990 Hrs | 3A @ 250VAC | 200 ~ 240VAC | Plug In, 8 Pin (Octal) | Thumbwheel Switches | Input Voltage | - | - |
|
|
3RP20052BW30RELAY TIME DELAY 100SEC 3A 250V |
3,708 |
|
Datasheet | SIRIUS | Box | Active | Chassis Mount, DIN Rail | Mechanical Relay | Programmable (Multi-Function) | DPDT (2 Form C) | 0.05 Sec ~ 100 Sec | 3A @ 250VAC | 24 ~ 240VAC/DC | Spring Terminal | Screwdriver Slot | Input Voltage | - | - |
|
|
TDRPRO5101RELAY TIME DELAY 9990HR 12A 240V |
3,817 |
|
- |
Legacy | Box | Obsolete | Socketable | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.1 Sec ~ 9990 Hrs | - | 12 ~ 240VAC/DC | Plug In | Thumbwheel Switches | Input Voltage | - | - |
|
H5CX-L8S-N AC100-240RELAY TIME DELAY 9999HR |
2,960 |
|
- |
H5CX | Bulk | Active | Socketable | Solid State Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.001 Sec ~ 9999 Hrs | 5A @ 250VAC | 100 ~ 240VAC | Plug In, 8 Pin (Octal) | Up/Down Digit Keys | Input Voltage, Trigger Signal | - | - |
|
|
H5CX-L8SD-N DC12-24/AC24RELAY TIME DELAY 9999HR |
2,351 |
|
- |
H5CX | Bulk | Active | Socketable | Solid State Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.001 Sec ~ 9999 Hrs | 5A @ 250VAC | 24VAC, 12 ~ 24VDC | Plug In, 8 Pin (Octal) | Up/Down Digit Keys | Input Voltage, Trigger Signal | - | - |
|
|
SCCLA012XXAMXAC991RELAY TIME DELAY |
1,875 |
|
- |
- | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
H5CZ-L8D DC12-24RELAY TIME DELAY 9999HR 5A 250V |
1,322 |
|
- |
H5CZ | Bulk | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.001 Sec ~ 9999 Hrs | 5A @ 250VAC | 12 ~ 24VDC | Plug In, 8 Pin (Octal) | Up/Down Digit Keys | Input Voltage, Trigger Signal | - | - |
|
|
H5CZ-L8E AC100-240RELAY TIME DELAY 9999HR 5A 250V |
3,984 |
|
- |
H5CZ | Bulk | Active | Socketable | Mechanical Relay | Programmable (Multi-Function) | SPDT (1 Form C) | 0.001 Sec ~ 9999 Hrs | 5A @ 250VAC | 100 ~ 240VAC | Plug In, 8 Pin (Octal) | Up/Down Digit Keys | Input Voltage, Trigger Signal | - | - |
