Thumbwheel Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Output Code | Read Out | Number of Sections | Display Characters - Height | Actuator Type | Contact Rating @ Voltage | Contact Material | Contact Finish | Mounting Type | Termination Style | End Caps | Section Width | Panel Cutout Dimensions | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DPS9137ALLS2PUSHWHEEL DPS9 |
3,791 |
|
Datasheet | DPS9 | Bulk | Active | BCD Complement | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 40VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | PC Pin with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|
|
DPS9307AKLS2PUSHWHEEL DPS9 |
1,780 |
|
Datasheet | DPS9 | Bulk | Active | Hexadecimal Complement | 0 ~ 9, A ~ F | 1 | 0.169" (4.30mm) | Pushwheel | 0.1A @ 40VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|
|
PICORD1312ALULS2SWITCH THUMB BCD 0.1A 40V |
4,526 |
|
Datasheet | PICOD | Tray | Active | BCD | 0 ~ 9 | 1 | 0.122" (3.10mm) | Pushwheel | 0.1A @ 40VAC/DC | Copper Alloy | Gold | Panel Mount, Screw, Right Angle | PC Pin | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 60°C |
|

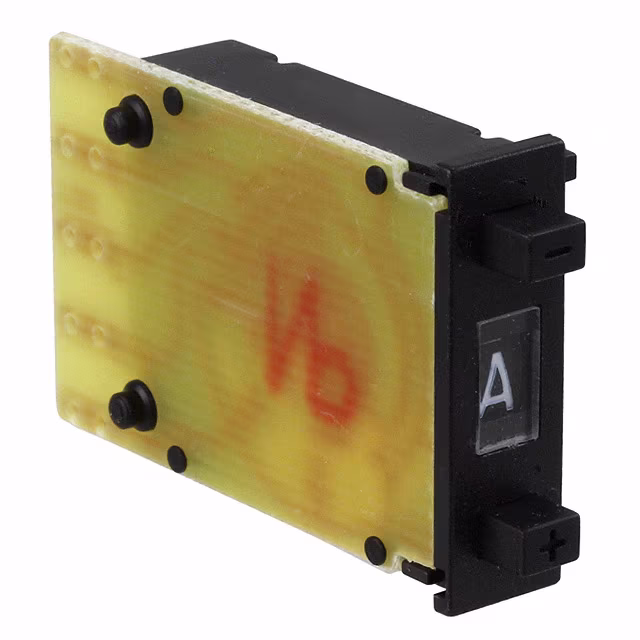

SMCD301AKSWITCH THUMB HEX 0.4VA 20V |
4,289 |
|
Datasheet | SMCD | Bulk | Active | Hexadecimal | 0 ~ 9, A ~ F | 1 | 0.134" (3.40mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.300" (7.62mm) | - | - | -20°C ~ 80°C |
|
|
DPS8131AKULSSWITCH THUMB BCD 0.4VA 20V |
2,868 |
|
- |
DPS8 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | 0.193" (4.90mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Alloy | Gold | Panel Mount, Screw, Right Angle | PC Pin | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|
|
PICOD131ALULSSWITCH THUMB BCD 0.4VA 20V |
4,474 |
|
Datasheet | PICOD | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.122" (3.10mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Tin Alloy | Gold | Panel Mount, Snap-In, Right Angle | PC Pin | Sold Separately | 0.300" (7.62mm) | - | - | -10°C ~ 60°C |
|
|
DPS9301ALLS2PUSHWHEEL DPS9 |
4,766 |
|
Datasheet | DPS9 | Bulk | Active | Hexadecimal | 0 ~ 9, A ~ F | 1 | 0.169" (4.30mm) | Pushwheel | 0.1A @ 40VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | PC Pin with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|
|
DPS9141ALLS2PUSHWHEEL DPS9 |
1,411 |
|
Datasheet | DPS9 | Bulk | Active | BCD Complement | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 40VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | PC Pin with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|
|
DPS9131AKLS2PUSHWHEEL DPS9 |
3,756 |
|
Datasheet | DPS9 | Bulk | Active | BCD | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 40VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | PC Pin | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|
|
DPS9111ALLS2PUSHWHEEL DPS9 |
1,548 |
|
Datasheet | DPS9 | Bulk | Active | Decimal | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.1A @ 40VAC/DC | Copper Alloy | Gold | Panel Mount, Snap-In | PC Pin with Component Mounting | Sold Separately | 0.315" (8.00mm) | - | - | -20°C ~ 80°C |
|
|
A7PH-203SWITCH THUMB DECIMAL 0.15A 125V |
3,470 |
|
Datasheet | A7PH | Tray | Active | Decimal | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
|
A7PH-203-1SWITCH THUMB DECIMAL 0.15A 125V |
3,710 |
|
Datasheet | A7PH | Tray | Active | Decimal | 0 ~ 9 | 1 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
302119002SWITCH THUMB BCD 0.1A 120V/28V |
1,824 |
|
Datasheet | 3 | Bulk | Obsolete | BCD | 0 ~ 9 | 1 | - | Thumbwheel | 0.1A @ 120VAC/28VDC | Copper Alloy | - | Panel Mount, Screw | Card Edge/Solder Pad | Sold Separately | 0.350" (8.89mm) | - | Dust Lens | -40°C ~ 65°C |
|
|
A7PH-206-PMSWITCH THUMB SPDT 0.15A 125V |
3,138 |
|
Datasheet | A7PH | Tray | Active | SPDT | +/- | 1 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
|
A7PH-206-PM-1SWITCH THUMB SPDT 0.15A 125V |
3,560 |
|
Datasheet | A7PH | Tray | Active | SPDT | +/- | 1 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|
|
A7PH-207-PMSWITCH THUMB SPDT 0.15A 125V |
3,386 |
|
Datasheet | A7PH | Bulk | Active | SPDT | +/- | 1 | 0.268" (6.80mm) | Pushwheel | 0.15A @ 125VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
|

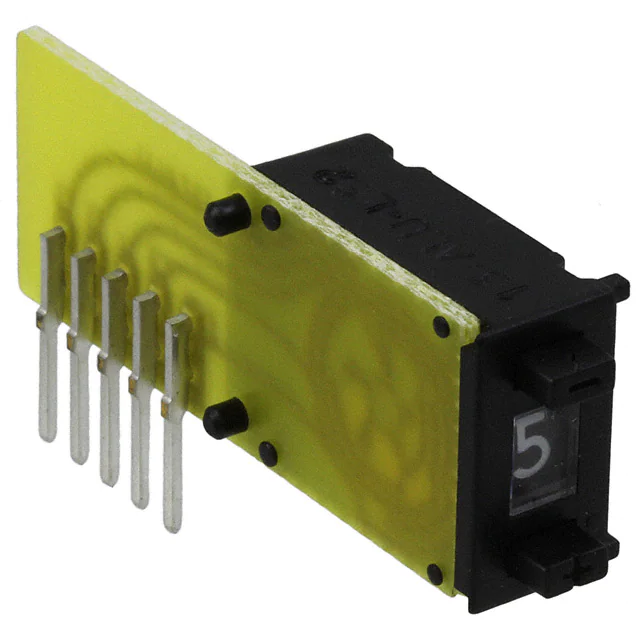

3-1437601-2SWITCH THUMB BCD COMP 0.4VA 20V |
1,252 |
|
Datasheet | PICOD | Bulk | Active | BCD Complement | 0 ~ 9 | 1 | 0.122" (3.10mm) | Pushwheel | 0.4VA @ 20VAC/DC | Copper Tin Alloy | Gold | Panel Mount, Screw, Right Angle | PC Pin | Sold Separately | 0.300" (7.62mm) | - | - | -10°C ~ 60°C |
|
|
SH6SSG1253SWITCH THUMB |
3,103 |
|
- |
SH6 | Tray | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A7PH-206-S09-1SWITCH THUMB |
2,757 |
|
- |
* | Bulk | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
A7PS-255-1SWITCH THUMB HEX 0.1A 50V |
3,479 |
|
Datasheet | A7PS | Tray | Active | Hexadecimal | 0 ~ 9, A ~ F | 1 | 0.157" (4.00mm) | Pushwheel | 0.1A @ 50VAC/28VDC | - | - | Panel Mount, Snap-In | Card Edge/Solder Pad with Component Mounting | Sold Separately | 0.394" (10.00mm) | - | - | -10°C ~ 65°C |
