Pads, Sheets
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Usage | Type | Shape | Outline | Thickness | Material | Adhesive | Backing, Carrier | Color | Thermal Resistivity | Thermal Conductivity |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HSP-2THERM PAD 57.15X44.45MM W/ADH |
1,231 |
|
Datasheet | HSP | Box | Active | Single Phase SSRs, M50 Power Modules | Pad, Sheet | Rectangular | 57.15mm x 44.45mm | 0.0050" (0.127mm) | - | Adhesive - One Side | - | Black | - | 2.0W/m-K |
|
HSP-1THERM PAD 57.15X44.45MM WHT |
456 |
|
Datasheet | HSP | Bulk | Active | Single Phase SSRs, M50 Power Modules | Pad, Sheet | Rectangular | 57.15mm x 44.45mm | 0.0039" (0.100mm) | - | - | - | White | - | 1.0W/m-K |
|

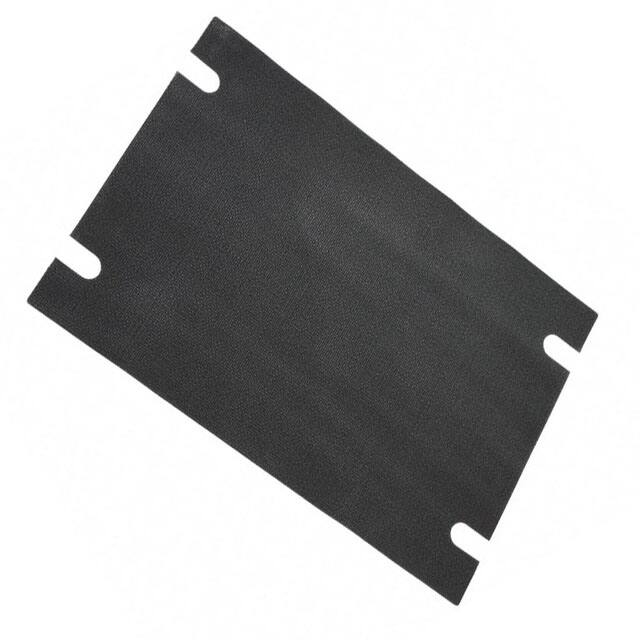

HSP-5THERM PAD 104.39MMX73.66MM W/ADH |
158 |
|
Datasheet | HSP | Box | Active | Three Phase SSRs | Pad, Sheet | Rectangular | 104.39mm x 73.66mm | 0.0050" (0.127mm) | - | Adhesive - One Side | - | Black | - | 2.0W/m-K |
|
HSP-7THERM PAD 39.4X17MM PINK |
3,914 |
|
Datasheet | HSP | Bulk | Active | NOVA22 SSRs | Pad, Sheet | Rectangular | 39.40mm x 17.00mm | 0.0050" (0.127mm) | Phase Change Compound | Tacky - Both Sides | - | Pink | - | 0.07W/m-K |
|
HSP-6THERM PAD 33.78X17.02MM W/ADH |
2,655 |
|
Datasheet | HSP | Bulk | Obsolete | EL Series SSRs | Pad, Sheet | Rectangular | 33.78mm x 17.02mm | 0.0050" (0.127mm) | - | Adhesive - One Side | - | Black | - | 2.0W/m-K |
|
HSP-8THERM PAD FOR PM67 PINK |
1,457 |
|
Datasheet | HSP | Bulk | Active | NOVA22 SSRs | Pad, Sheet | Rectangular | - | 0.0050" (0.127mm) | - | - | - | Pink | - | 0.07W/m-K |
|
HSP-3THERM PAD 104.39MMX73.66MM WHT |
3,822 |
|
Datasheet | HSP | Bulk | Active | Three Phase SSRs | Pad, Sheet | Rectangular | 104.39mm x 73.66mm | 0.0039" (0.100mm) | - | - | - | White | - | 1.0W/m-K |
|

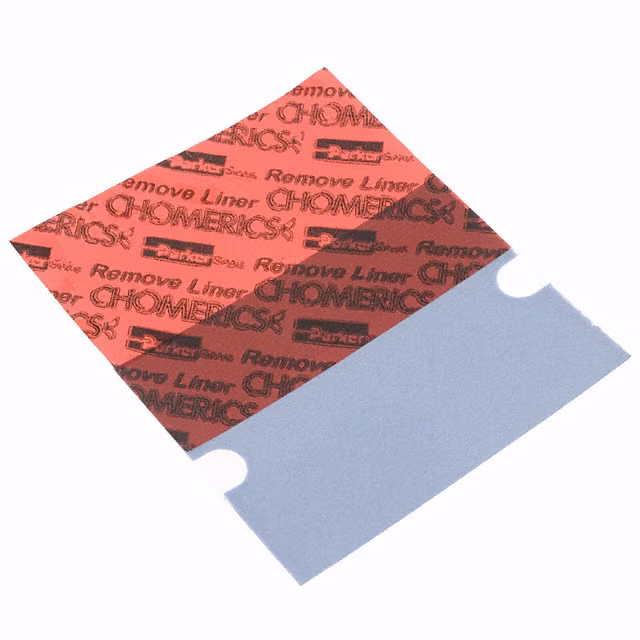

TP01THERM PAD 55.12X42.42MM W/ADH |
2,567 |
|
Datasheet | - | Bulk | Obsolete | Single Phase SSRs, M50 Power Modules | Pad, Sheet | Rectangular | 55.12mm x 42.42mm | 0.0050" (0.127mm) | - | Adhesive - One Side | - | Pink | - | 0.7W/m-K |
|
TP01-MTHERM PAD 55.12X42.42MM W/ADH |
4,071 |
|
Datasheet | - | Bulk | Obsolete | Single Phase SSRs, M50 Power Modules | Pad, Sheet | Rectangular | 55.12mm x 42.42mm | 0.0050" (0.127mm) | - | Adhesive - One Side | - | Pink | - | 0.7W/m-K |
|
TP03THERM PAD 100.84X70.36MM W/ADH |
2,241 |
|
Datasheet | - | Bulk | Obsolete | Three Phase SSRs | Pad, Sheet | Rectangular | 100.84mm x 70.36mm | 0.0050" (0.127mm) | - | Adhesive - One Side | - | Pink | - | 0.7W/m-K |
